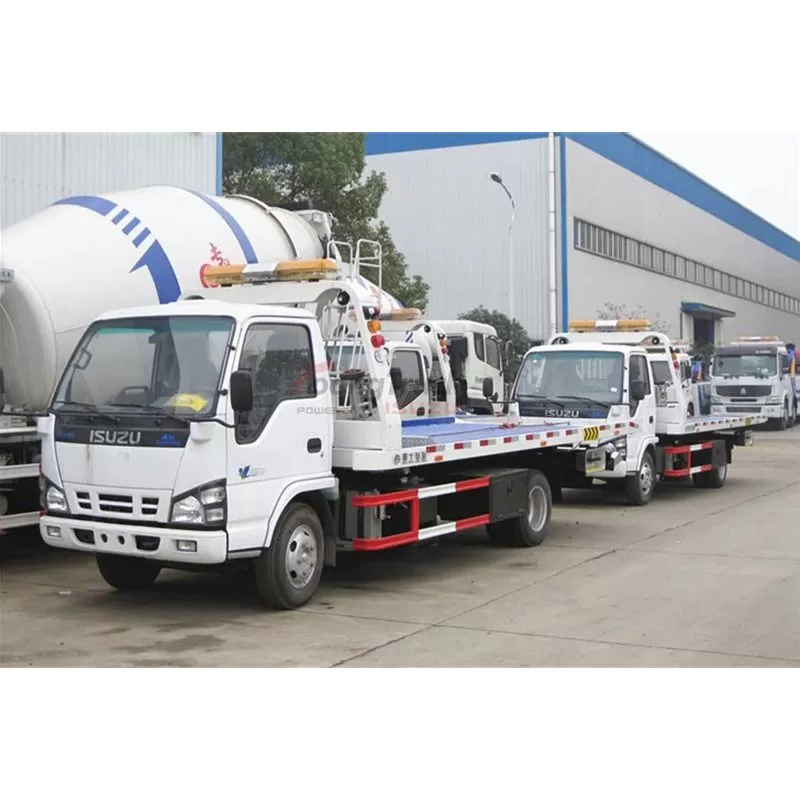

Flatbed Wrecker lsuzu
ISUZU NKR small tow truck is a high-performance model designed for urban road rescue and towing operations. It has a compact body size, with an overall size of 5995x2300x2200mm and a total mass of 7300kg, and has excellent load-bearing capacity. The vehicle is equipped with a 4KH1CN5HS engine with a power of 96KW/130HP and an emission standard of EURO V. The gearbox has 5 forward gears and 1 reverse gear, equipped with an oil brake system and a power steering system. In addition, the vehicle is also equipped with a winch and a underlift system, with strong traction and lifting capabilities, and is a powerful assistant for urban road rescue and towing operations.
| Item No. | |
| Driving Type | 4x2 |
| Engine Power | 130 HP |
| Capacity | 3 ton |
| Remarks | Customized flatbed dimensions, with wheel-lift system |
PRODUCT DETAILS

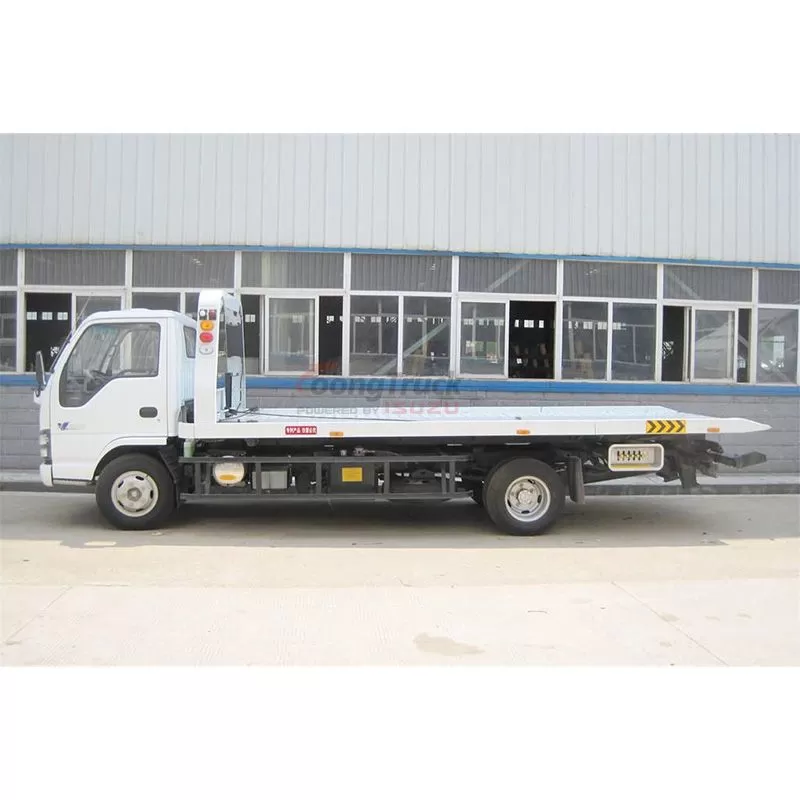

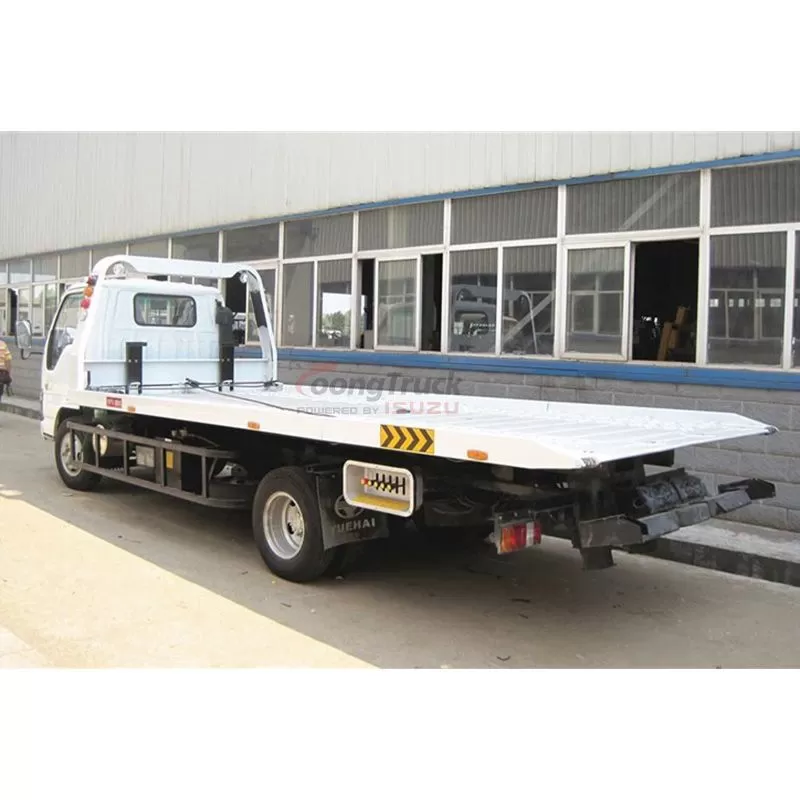

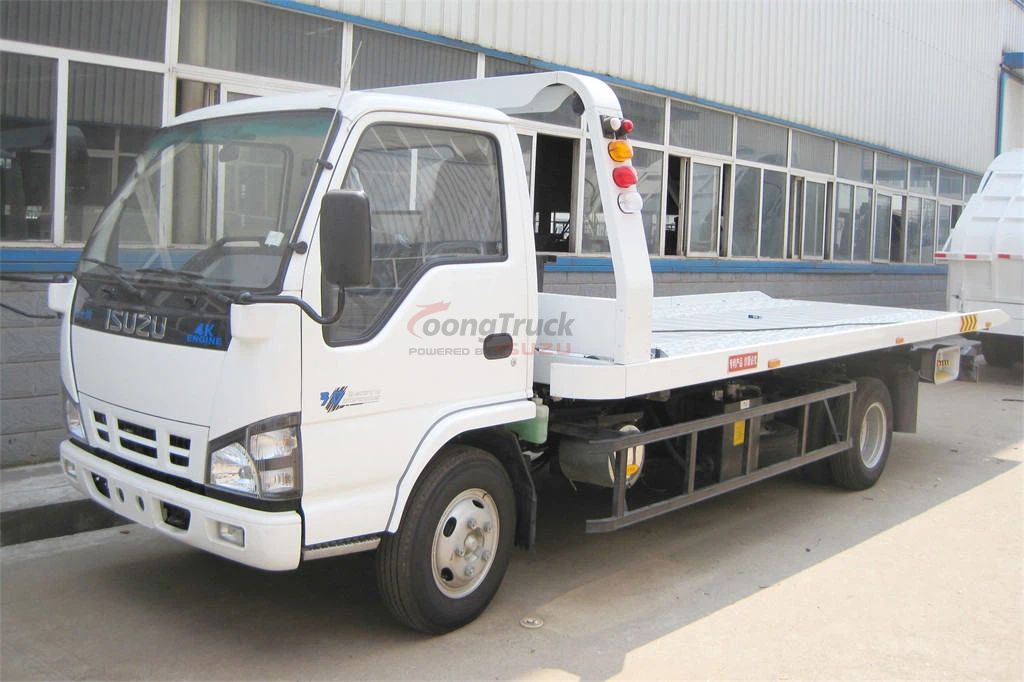

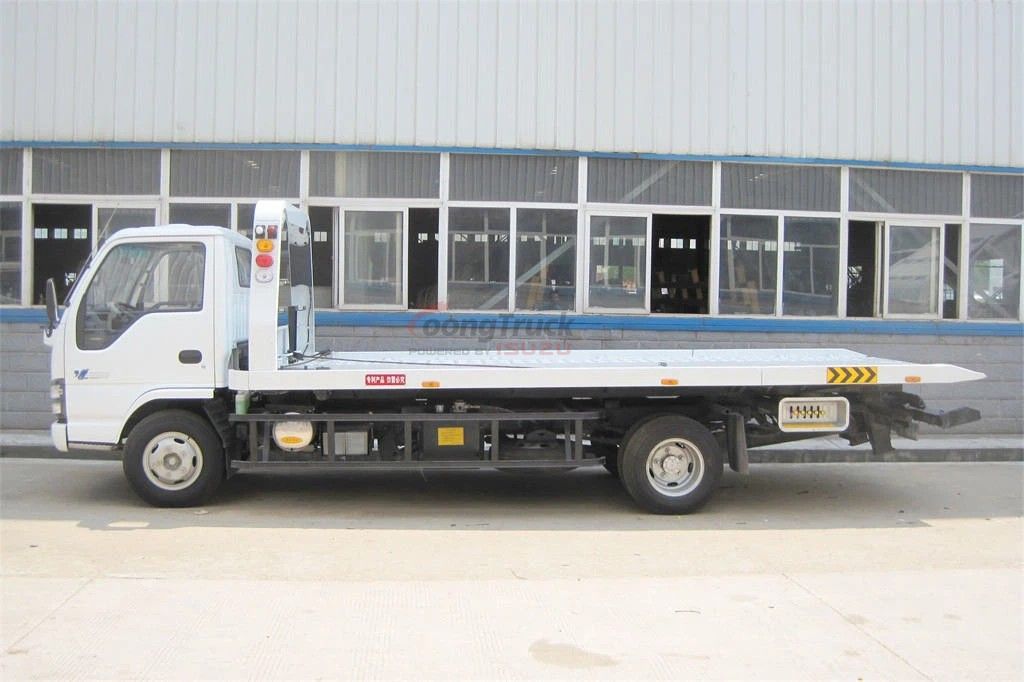

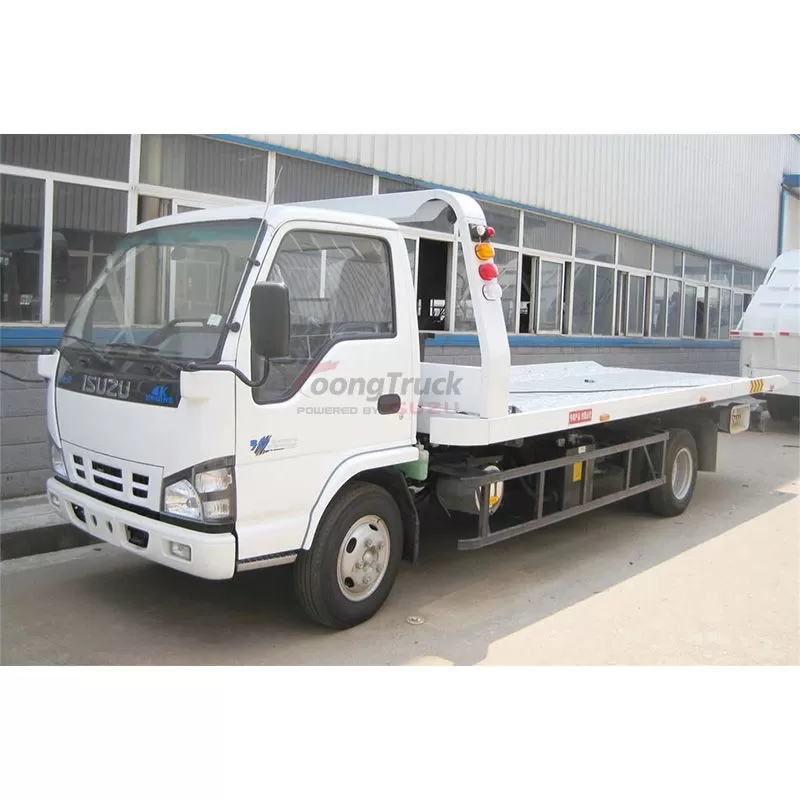

ISUZU NKR flatbed tow truck is a professional vehicle with complete functions and excellent performance, designed for urban road rescue and towing operations. The overall size of the vehicle is 5995x2300x2200mm. This compact and reasonable body design allows it to flexibly shuttle on urban roads. The total mass of the vehicle is 7300kg, and the curb weight is only 4200kg, which provides it with sufficient load capacity.
ISUZU tow truck is built on the ISUZU NKR chassis, ensuring the high quality and reliability of the vehicle. The engine model is 4KH1CN5HS, with a power of 96KW/130HP, and the emission standard reaches EURO V, which not only guarantees power but also meets environmental protection requirements. The displacement of this engine is 2999ml, and it uses diesel as fuel, which is economical and durable.

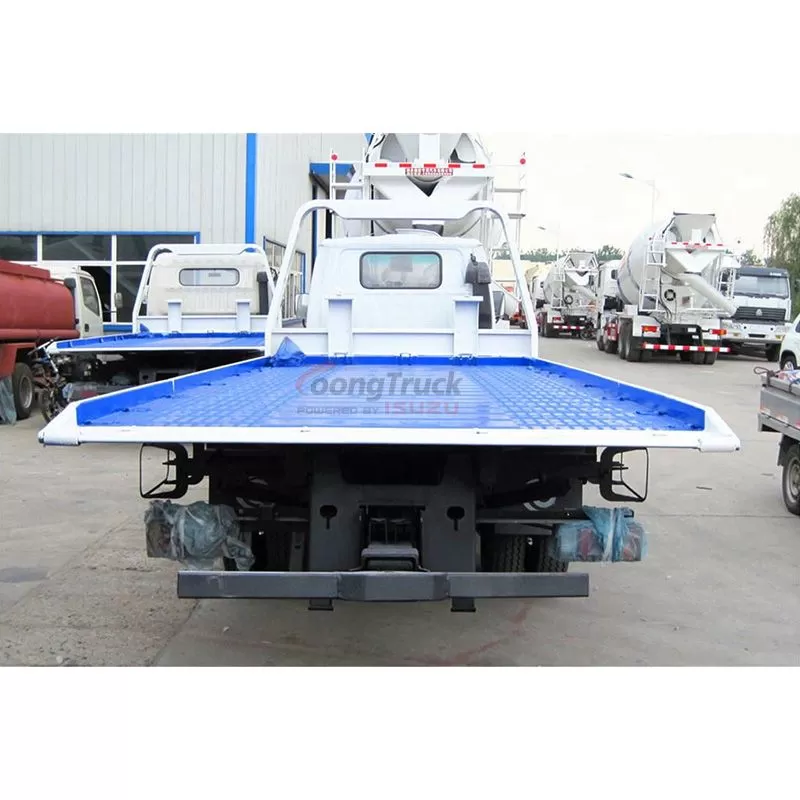

The flatbed size of the ISUZU NKR wrecker tow truck is 4200x2300mm, and the maximum load capacity is 3000kg. The operating stroke is 2700mm, the minimum slope angle is 8°, and the platform height from the ground is 1070mm, all of which make the towing operation more efficient and convenient.

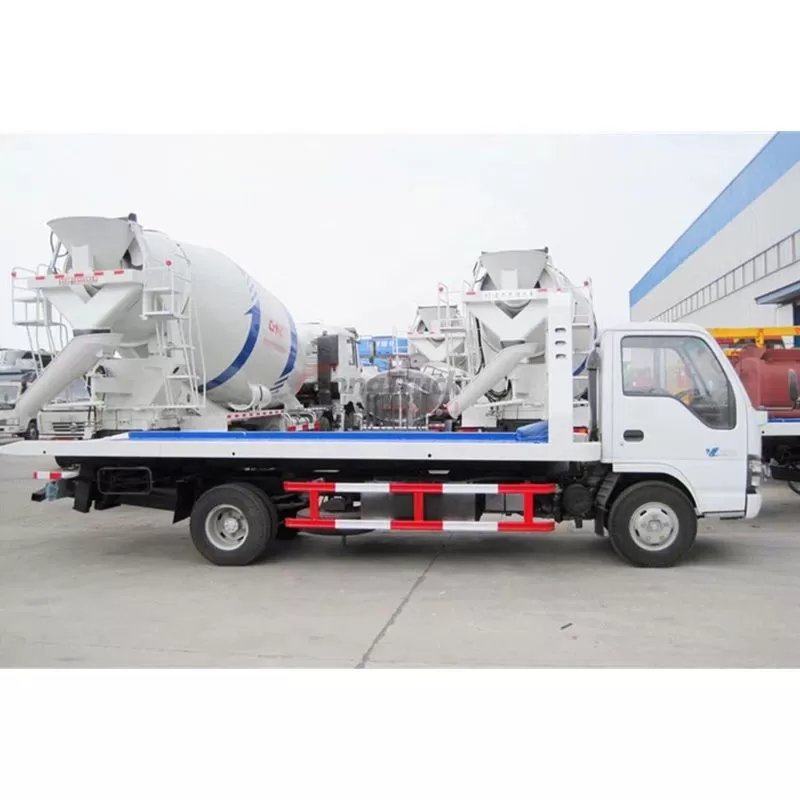

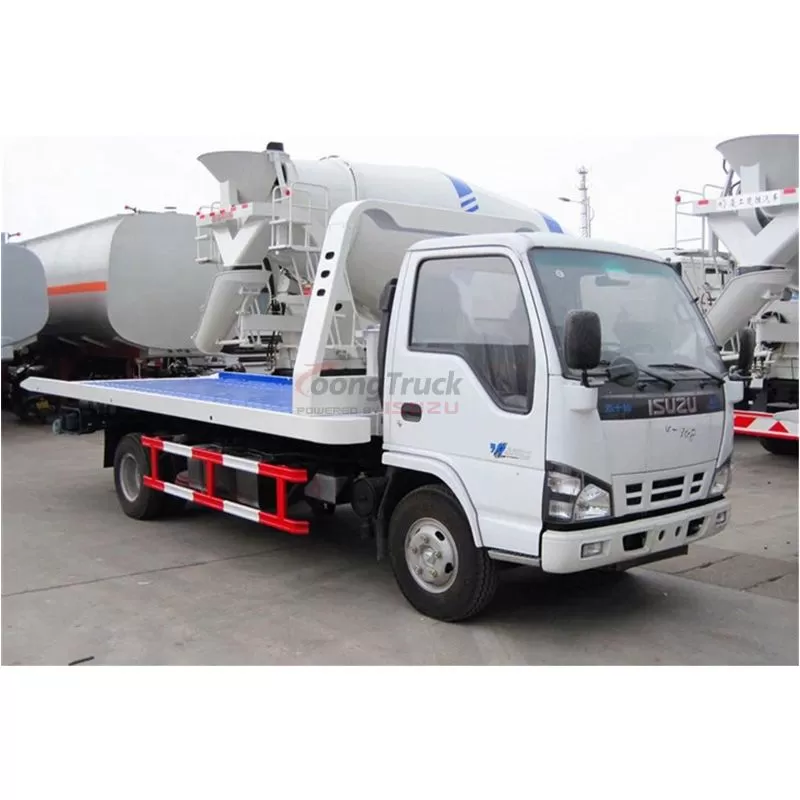

This ISUZU rollback tow truck is also equipped with a winch with a rated pull of 3000kg and a wire rope length of 25m, which provides strong traction for towing operations. The rated pull-down force of the hoisting system is 6000kg, the rated lifting capacity is 2000kg, the maximum lifting capacity in the fully extended state is 1600kg, and the maximum effective lifting length is 1640mm, which meets the diverse towing needs. The ISUZU NKR tow truck is also equipped with a set of auxiliary wheels, 4 straps, 1 yellow warning light, and a double-sided linkage hydraulic operating system. It also has the ability to tow 2 cars, further enhancing its practical value.
| General Technical Parameters | |||
| Overall Dimension | 5995x2300x2200(mm) | ||
| Gross Vehicle Weight | 7300kg | ||
| Curb Weight | 4200kg | ||
| Chassis Specification | |||
| Chassis Parameters | Chassis Brand | ISUZU | |
| Cabin | Single, Left Hand Driving | ||
| Engine | Model | 4KH1CN5HS | |
| Power | 96KW/130HP | ||
| Emission Standard | EURO V | ||
| Displacement | 2999ml | ||
| Fuel Type | Diesel | ||
| Gearbox | 5 Forward & 1 Reverse Gear | ||
| Front and Rear Axle Load | 2.5T/4.8T | ||
| Wheel Base | 3360 (mm) | ||
| Overhang ( Front/Rear) | 1015/1620(mm) | ||
| Angle (Approach/departure) | 24/17(°) | ||
| Brake System | oil brake | ||
| Steering Gear | Power Assistant | ||
| Tire | 7.00R16, 6 Pieces with 1 Spare Tire | ||
| Maximum Speed | 90 (km/h) | ||
| Superstructure | |||
| Flatbed | Dimensions | 4200x2300 (mm) | |
| Max. Loading Weight | 3000(kg) | ||
| Operating Stroke | 2700 (mm) | ||
| Min. Angle of Slope | 8(°) | ||
| Platform Height from the Ground | 1070(mm) | ||
| Winch | Quantity | 1pc | |
| Winch Rating Pulling Capacity | 3000 (kg) | ||
| Length of Steel Rope | 25 (m) | ||
| Wheel-lift System | Rating Under-Pulling Capacity | 6000 (kg) | |
| Rating Under-Hoisting Capacity | 2000 (kg) | ||
| Fully Extended Max Under-Hoisting Capacity | 1600 (kg) | ||
| Max Under-Hoist Useful Length | 1640 (mm) | ||
| Remarks | 1. Equipped with One Set of Auxiliary Wheels 2. Bandages 4pcs 3. Yellow Warning Lamp 1pc 4. Double Side Hydraulic Operation 5. Can Tow 2 Cars | ||
