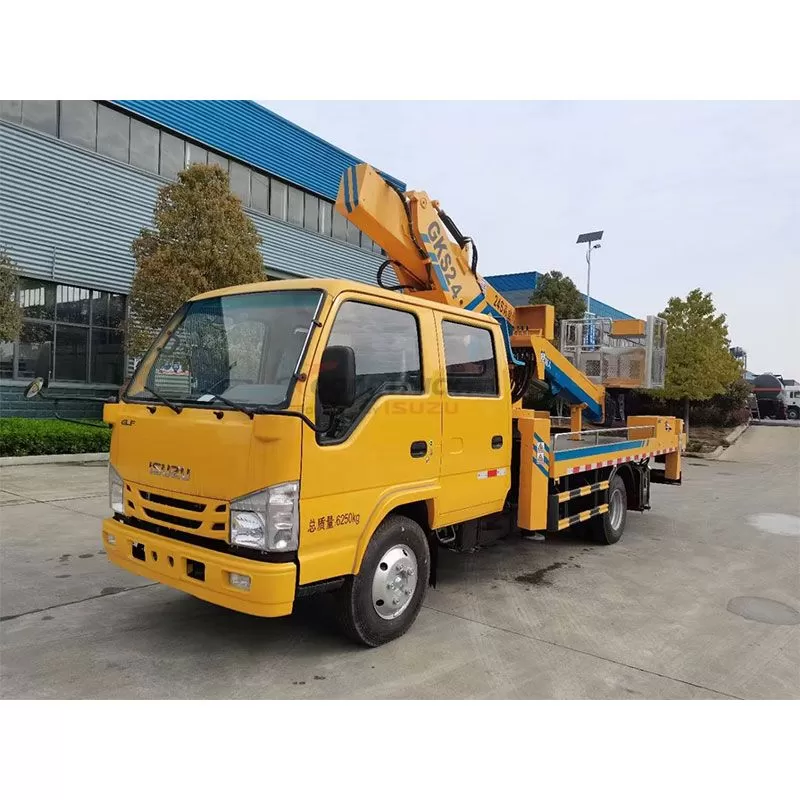

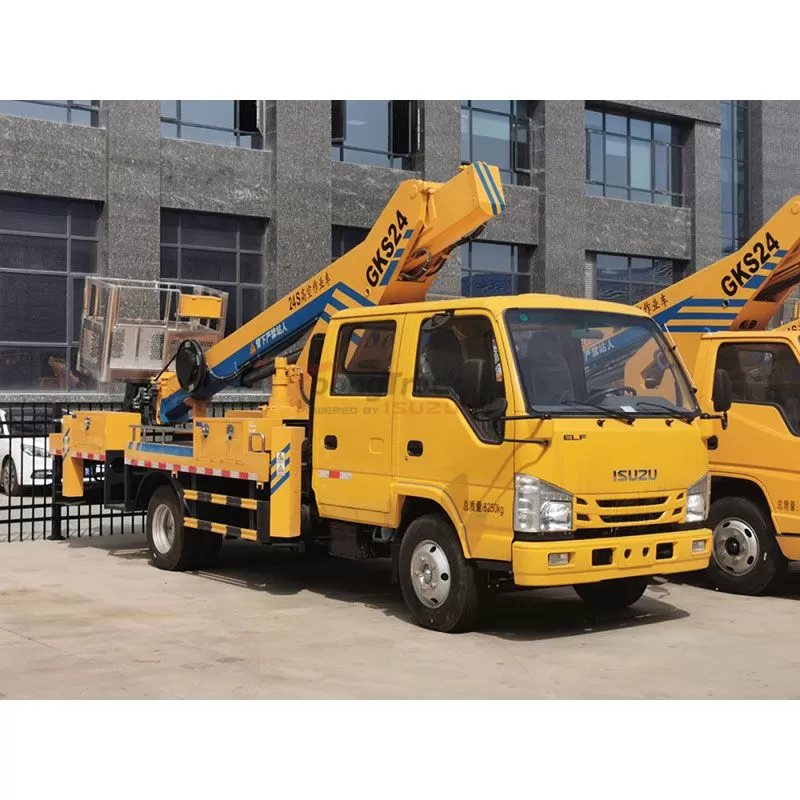

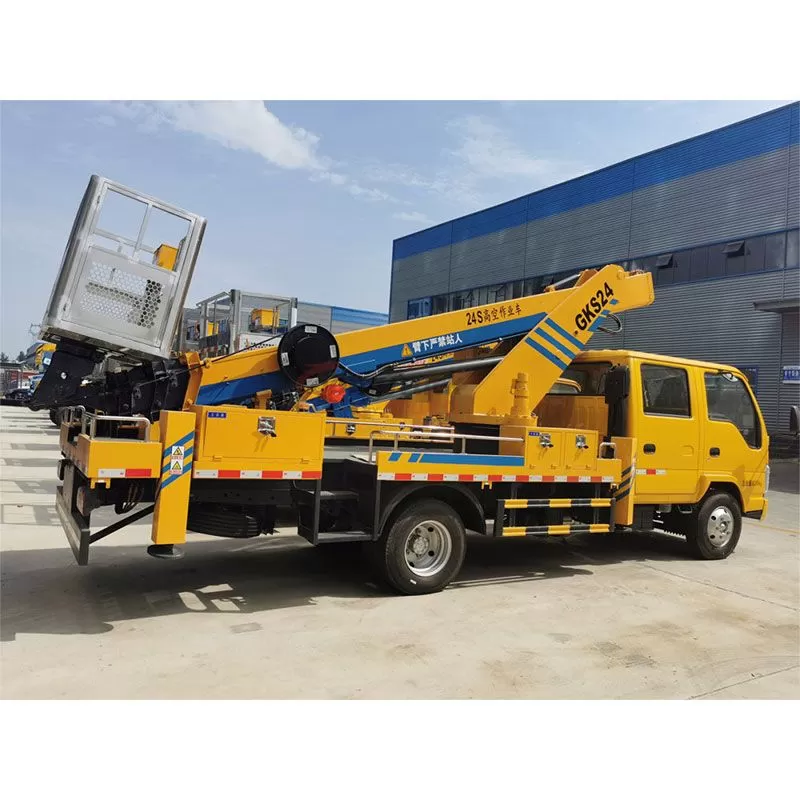

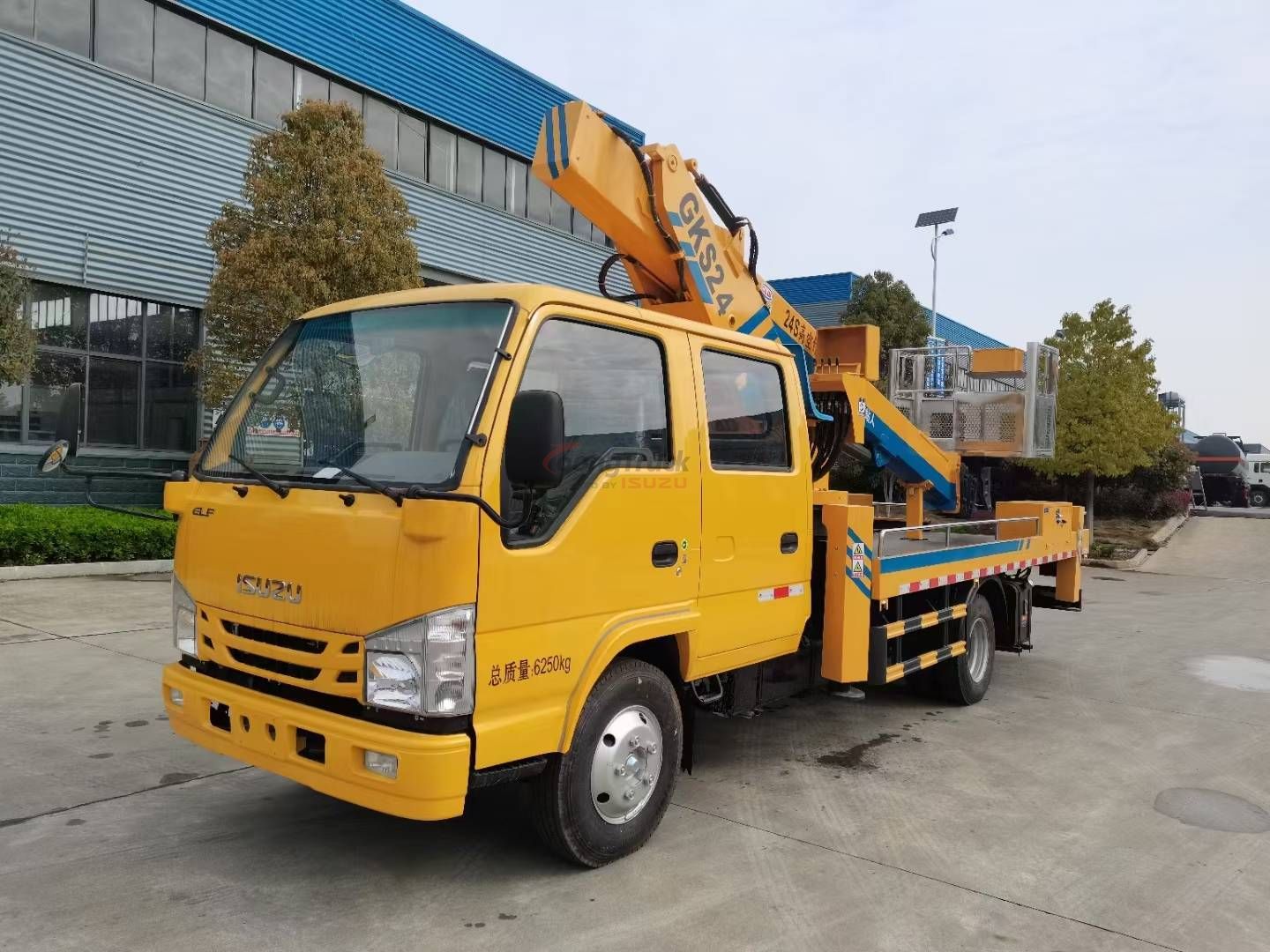

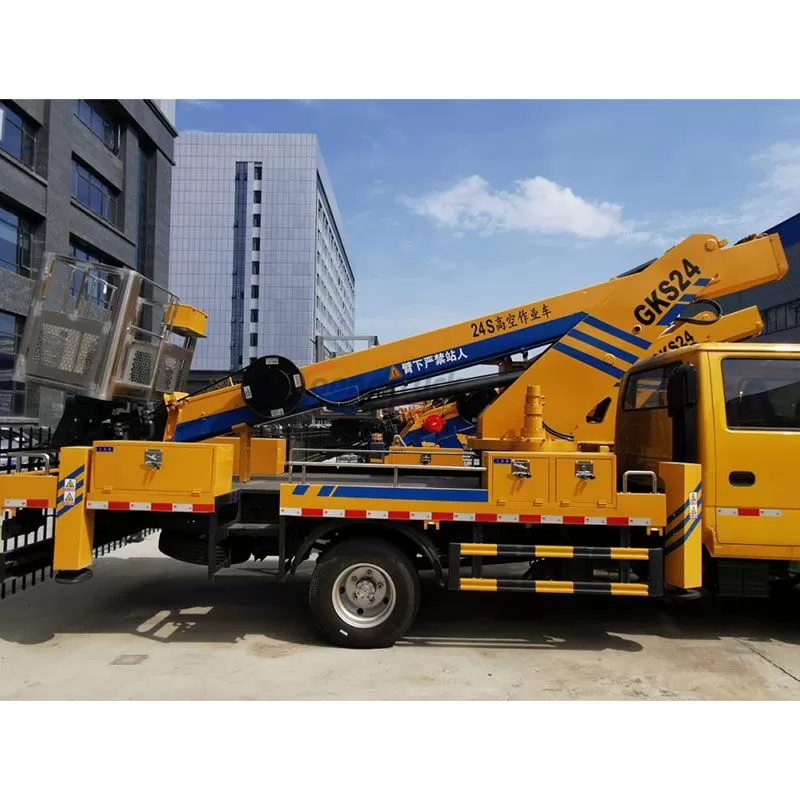

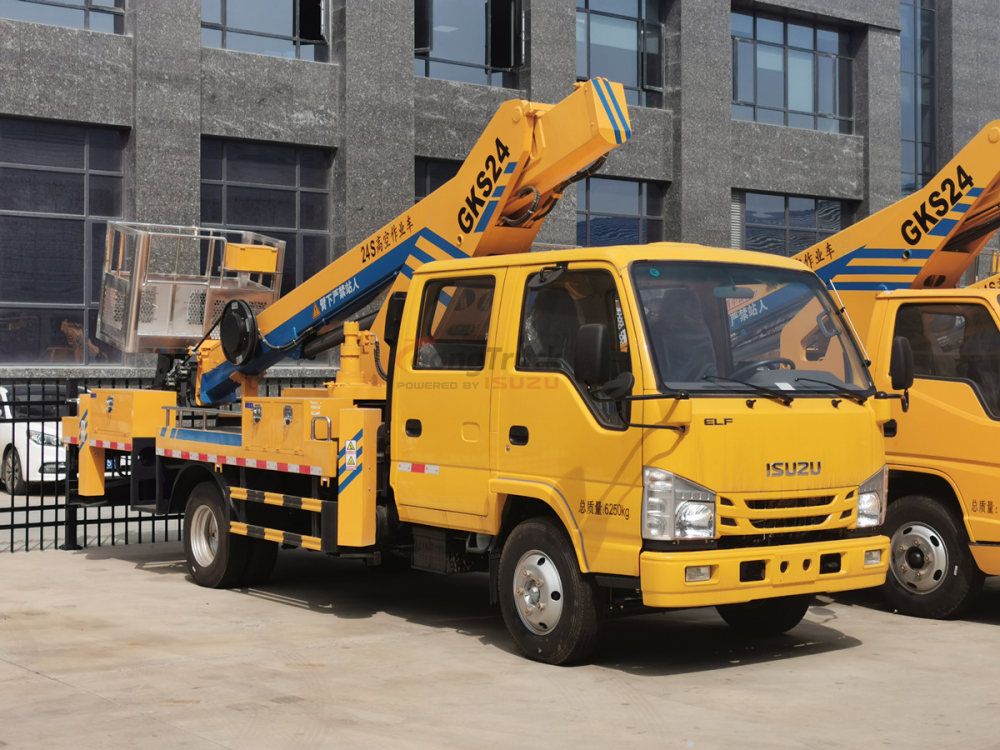

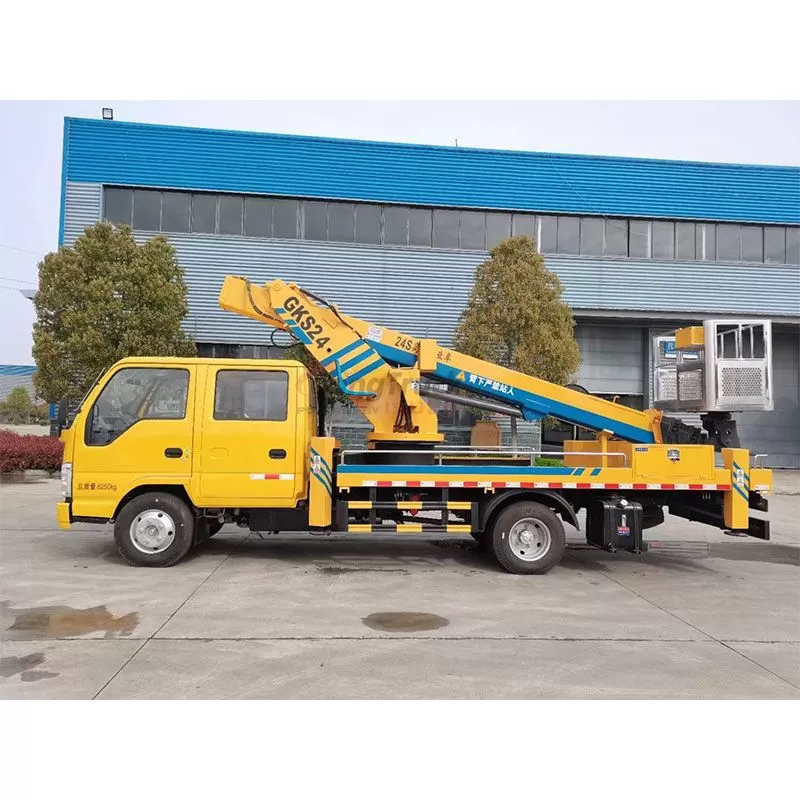

Isuzu Aerial Platform Truck
24m 22m Isuzu truck mounted Aerial Lift Manlifter, can be called as Isuzu bucket trucks or Isuzu hydraulic beam lifter, is a reliable and versatile vehicle designed for aerial work applications. It provides safe and efficient access to elevated areas, improves productivity, and ensures worker safety. With its customization options and comprehensive after-sales service, it offers a valuable solution for various industries and their unique aerial work requirements.
| Work capacity: | 24 meters |
| Engine power: | 120 HP |
| Engine type: | Isuzu 4KH1 |
| Axle drive: | 4x2 |
| Gear box: | Isuzu MSB5S |
| Remarks: | Double cabin, A/C |
PRODUCT DETAILS
Aerial Lift Manlifter Trucks Isuzu, also called as Isuzu aerial working platform truck or Isuzu truck mounted Hydraulic manlifer is a versatile and reliable vehicle designed for various aerial work applications. This truck features a robust boom lift system, providing access to high or hard-to-reach areas for maintenance, repairs, and other tasks.
2.Funtions of Aerial Lift Manlifter Trucks Isuzu
---- ISUZU chassis ensures perfect driving performance
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km;
---- Working cage can be made of steel structure or reinforced fiberglass (insulated cage);
---- Working cage can rotate 90 degree in left and right;

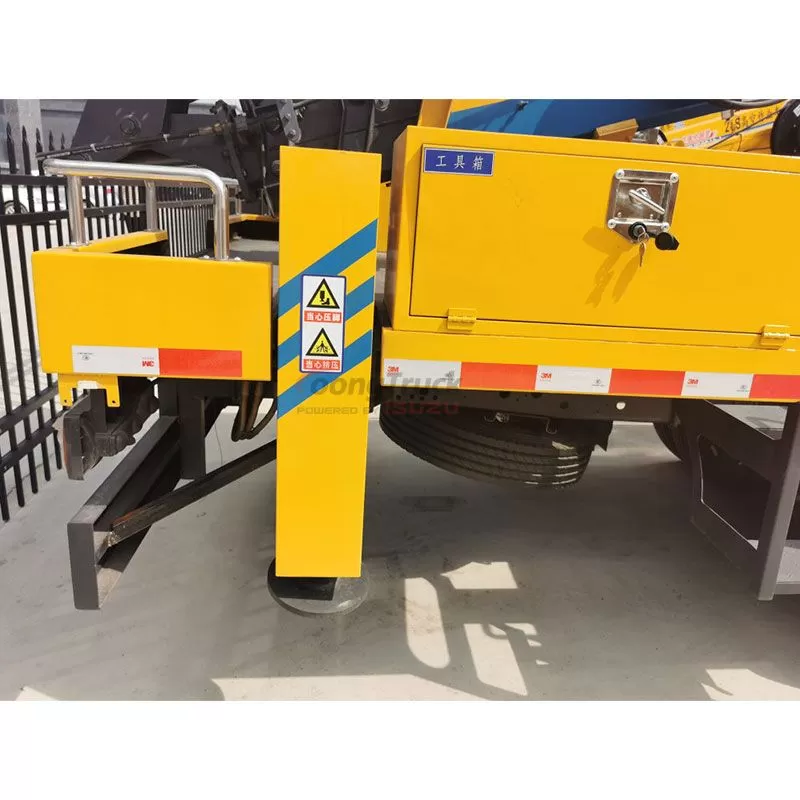

---- 4pcs outriggers and front support improve operation stability and safety;
---- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.;
---- Wireless remote control system is available.
ISUZU Brand telescopic platform trucks are available of 6m-8m, 8m-12m, 14m-16m, 18m, 20m-22m, 24-26m. Insulated cage is optional.
3. Advantages:
- Height and Reach: The Russia Aerial Lift Manlifter Trucks Isuzu provides excellent height and reach capabilities, allowing workers to access elevated areas efficiently and safely, thereby reducing dependence on traditional access methods.
- Efficiency and Productivity: With quick and secure access to elevated areas, this truck enhances productivity and minimizes downtime associated with setting up scaffolding or manual access methods.
- Versatility: Suitable for a wide range of applications, from construction and maintenance to utilities and telecommunications, this truck ensures flexibility in meeting diverse aerial work requirements in Russia.
- Safety: The truck is equipped with various safety features like load sensors, emergency stop buttons, and fall protection systems, prioritizing worker safety and minimizing the risk of accidents or injuries.
4. Application: The Aerial Lift Manlifter Trucks Isuzu finds extensive application across various industries, including construction, electrical services, signage installation, maintenance of overhead lines, and building maintenance. Its adaptability to different work environments and ease of maneuverability make it an invaluable asset for aerial work.
| 22m 24m 26m 18m 20m ISUZU NPR Hydraulic Telescopic Boom lift Truck Mounted Aerial Work Platform truck | |||
| Chassis brand | ISUZU | Chassis Model | NPR |
| Work capacity | 24 meters | Truck model | PT5090GGK |
| Engine power | 120 HP | Axle drive | 4x2 |
| Gear box | Isuzu MSB5S | Remarks | Double cabin, A/C |
| Overall dimensions | 6400X2500X2920mm | Wheel base | 4500mm |
| Chassis Manufacturer | ISUZU | ||
| Cab | Configuration | NPR Double cab,air conditionerallowable 3 passengers | |
| Color | Yellow.other color is optional | ||
| Engine | Model | 4KH1 | |
| Emission | Euro 5 | ||
| Rated power | 120hp | ||
| Displacement | 2999ml | ||
| Tire | Size | 7.00R16 Tire, With one spare tyre | |
| Number | 6+1 nos | ||
| Front axle | 3 tons | ||
| Rear axle | 4 tons | ||
| Transmissions | MSB 5 speed transmission, 5 speed forward 1 reverse | ||
| Technical Parameters | |||
| Working condition | Maximum operating height | 24m | |
| Max operating range | 18.6m | ||
| Max range at max height | 11.8m | ||
| Max height at max range | 9.6m | ||
| Rotation | 360° | ||
| Boom Type | 5Sections telescopic boom | ||
| Outrigger type | Outrigger type | Front V Rear H type. Controlled independently | |
| Outrigger span (Vertical x | Vertical | 5370.5385mm | |
| horizontal) | horizontal | 4975, 5195mm | |
| Rear Outrigger flash lights | 2pcs | ||
| Basket | Rated loading weight | 220kgs | |
| L*W*H(mm) | 1500x700x1150 | ||
| Bucket material | Stainless steel fence and antiskid platform. | ||
| Operation system | Operation | Electrical operation of working platform and ground remote control. | |
| Control system | Load sensitive proportional system can realize double actiorsynchronization and stepless speed regulation | ||
| Power take-off system | Pneumatic operation | ||
| Leveling system | Hydraulic automatic leveling | ||
