PRODUCT DETAILS
1、 Manlift truck is also called Aerial platform truck articulated boom lift, truck mounted aerial platform, aerial work platform,hydraulic beam lifter, bucket truck ,bucket boom truck ,truck mounted crane ,truck mounted aerial lift ,telescopic platform truck, aerial working platform , truck mounted aerial working platform .

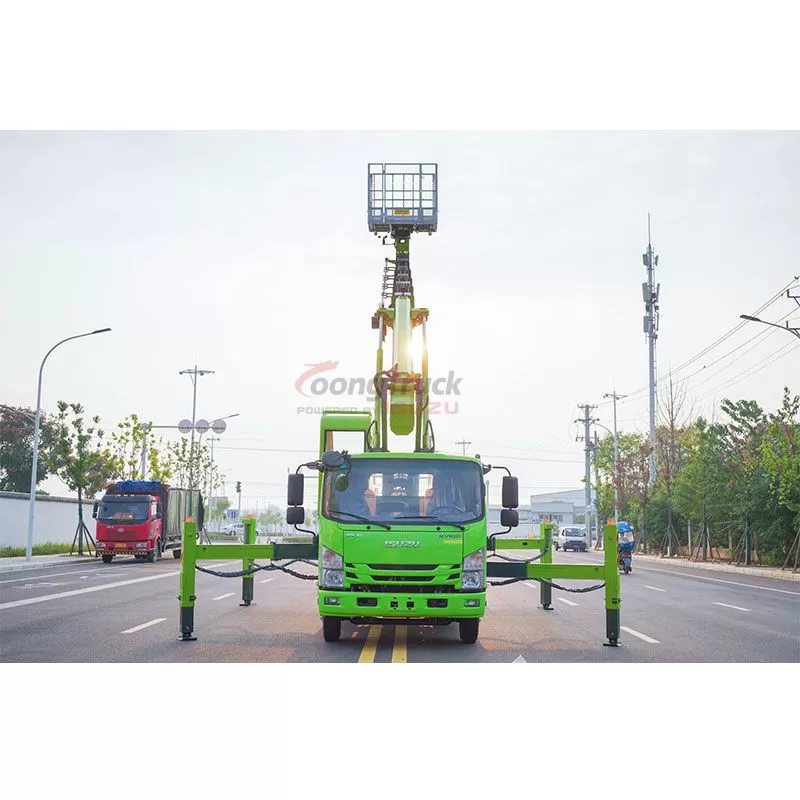

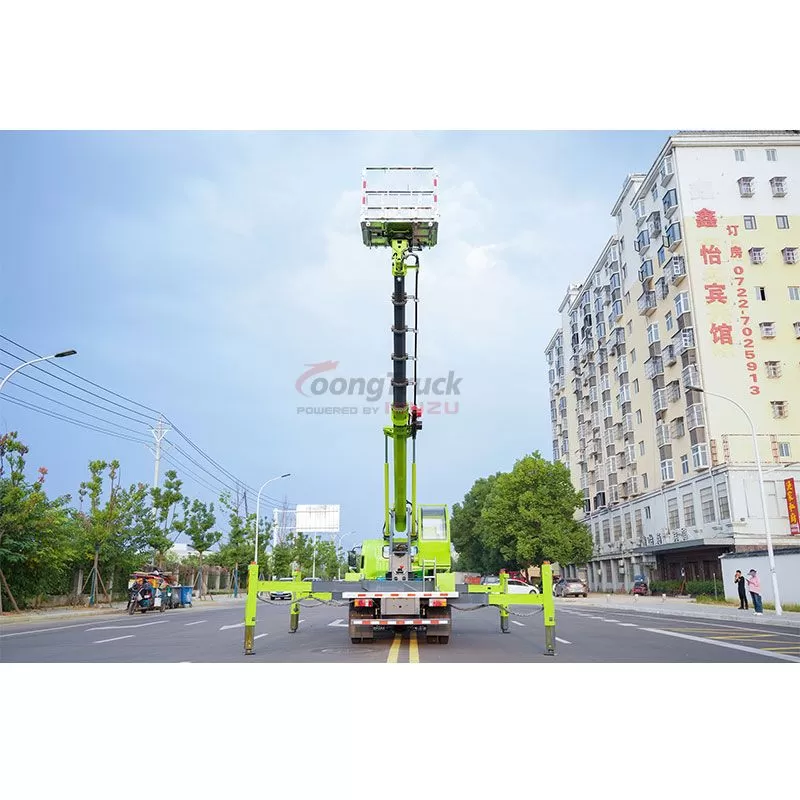

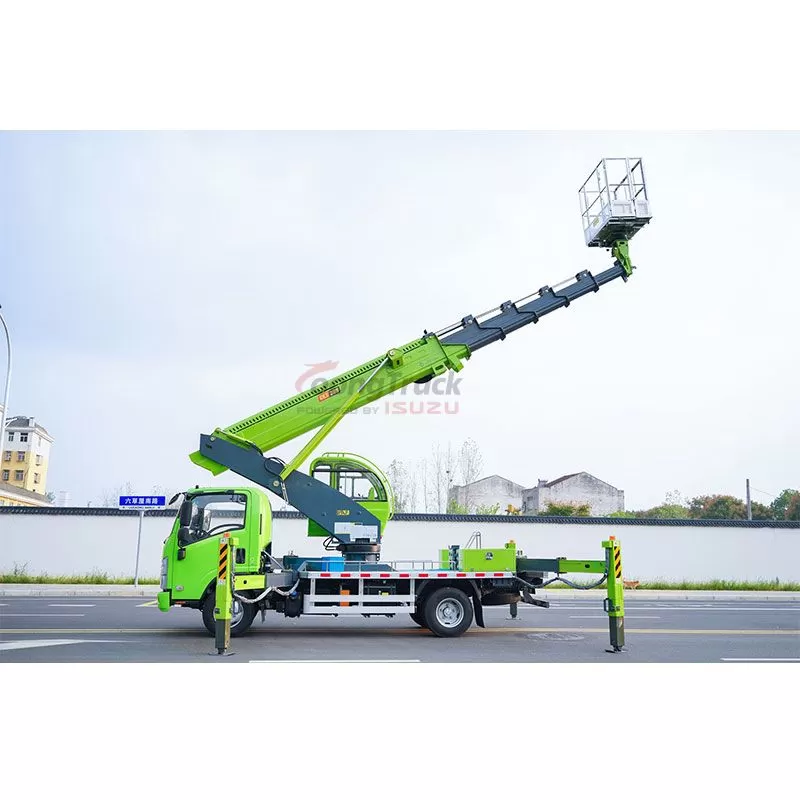

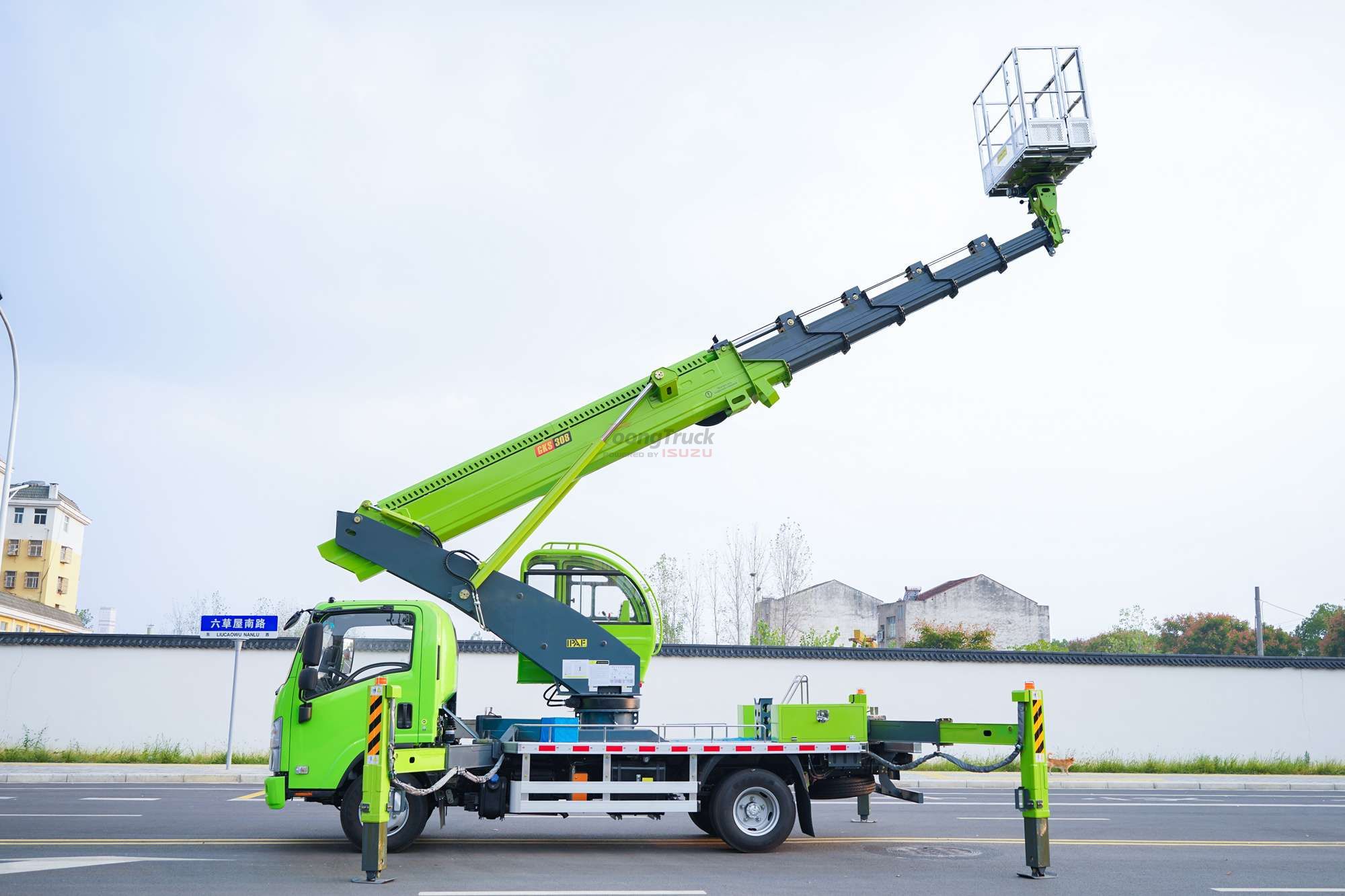

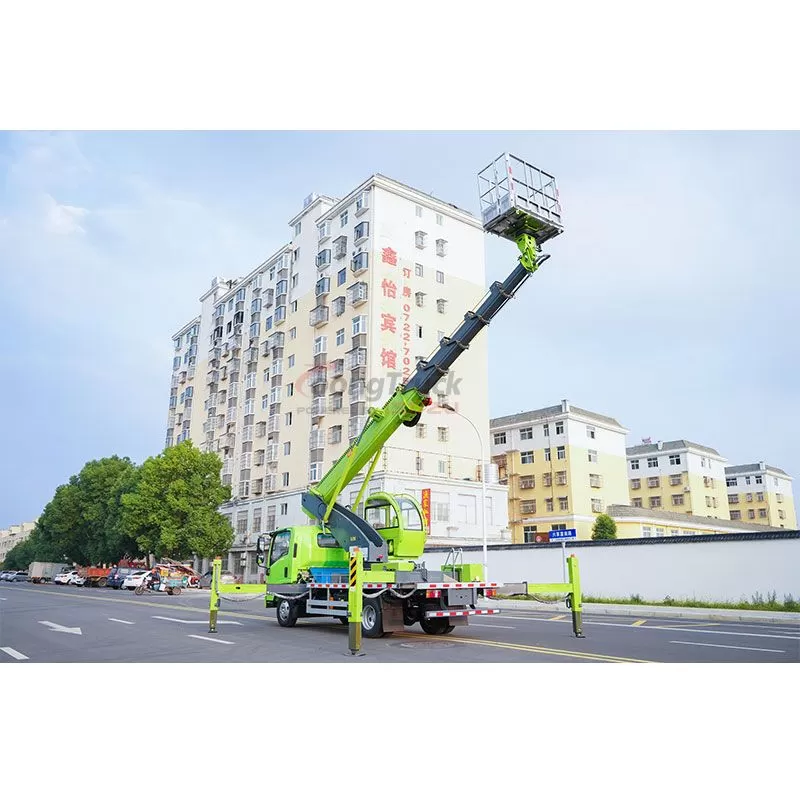

2、 Features:Aerial platform truck superstructure :
Aerial working height ,20m,22m,24m,26m,28m,30m,32m.40m.45m ,dongfeng sino ,isuzu ,shanman ,foton and so on available .
the rotation system will allow continuous 360-degree rotation, with a safety system to prevent sudden drops in case of failure
Aerial basket is moving system with dual action commands, one at ground level and the other at the level of the basket
truck equipped with two rotating amber lights
Aerial platform working truck equipped with balance valve ,emergency valve to keep safety when people overhead working.

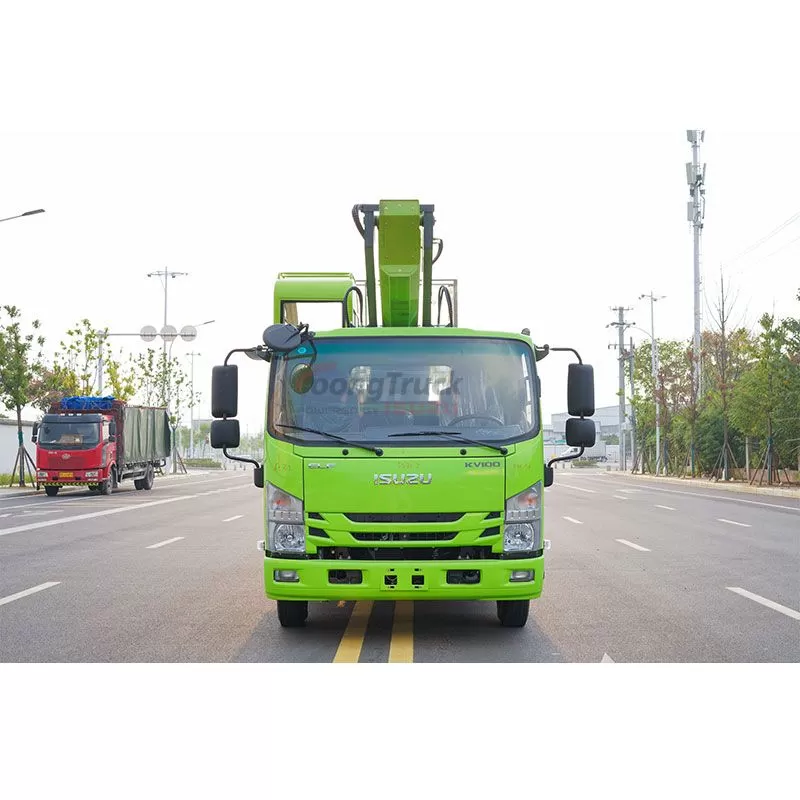

CHASSIS | |
Chassis | ISUZU |
Wheelbase | 3800 |
Wheel Formula | 4*2 |
Cab | Double rows of cabins |
Emission standard | Eurp 5 Eurp 6 |
Dimensions | 6350mm*2360mm*2760mm |
Compacity | 32m high |
Engine | |
Engine model | 4HK1-TCG60 |
Emission Standard | Eurp V |
Rated power | 154kw/190HP |
Engine Fuel | Diesel Oil |
Gearbox | MLD-speed |
Max speed | 95km/h |
Tires model | 235/75R17.5 |
The number of Tire | 6+1 (spare tire) |
Front axle | 4T |
Rear axle | 7T |
Fuel tank | 100L |
Body | |
Material | Q355B |
Bucket rated weight | 200kg |
Bucket max height | 32m |
Maxmium working span | 14m |
Outrigger Lateral span | 3930mm |
Outrigger Longitudinal span | 4350mm |
Front/Rear suspension | 1085/1580mm |
