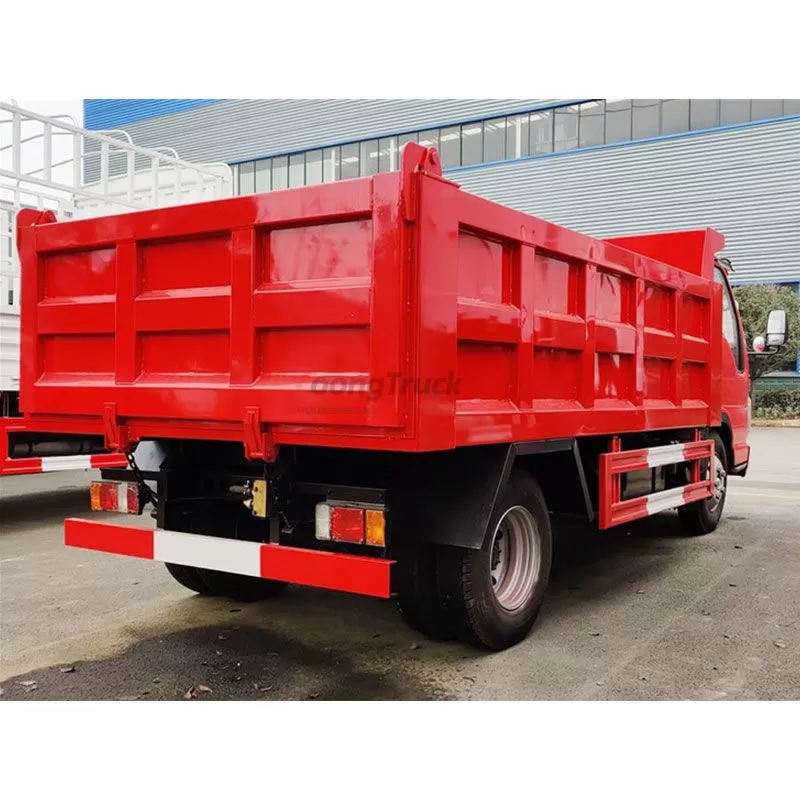

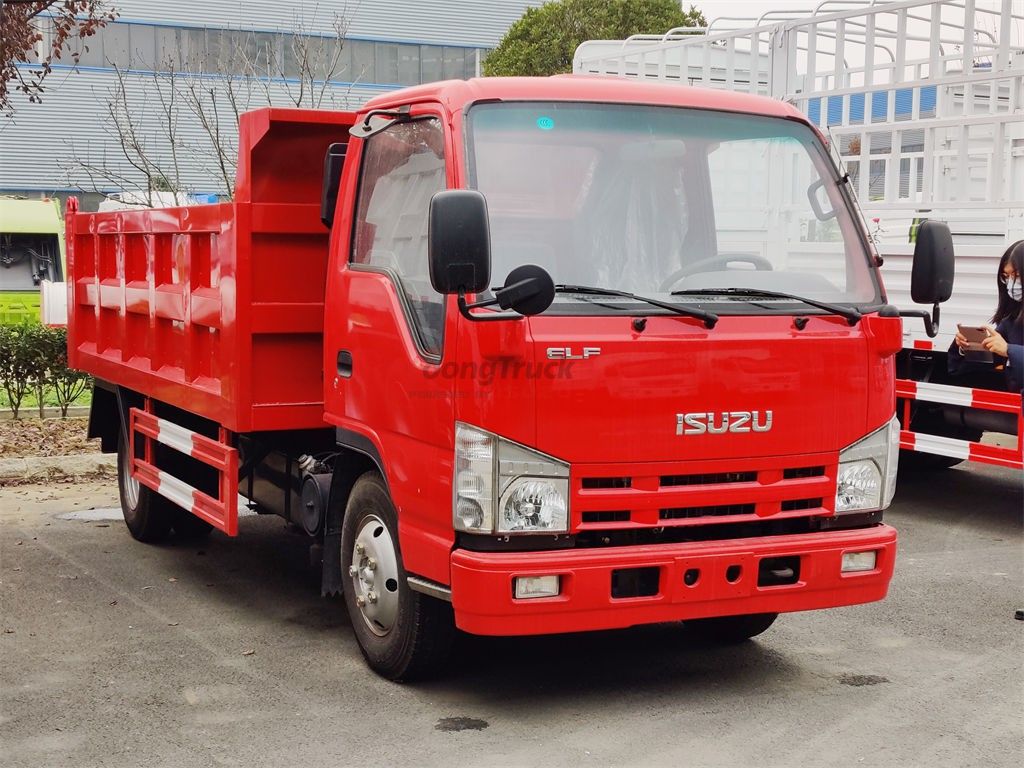

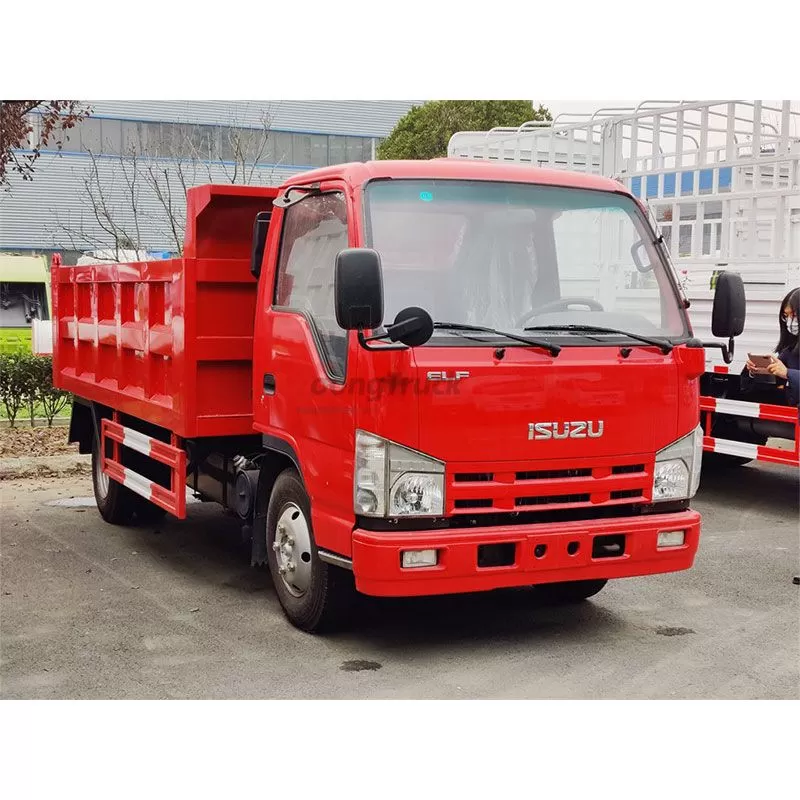

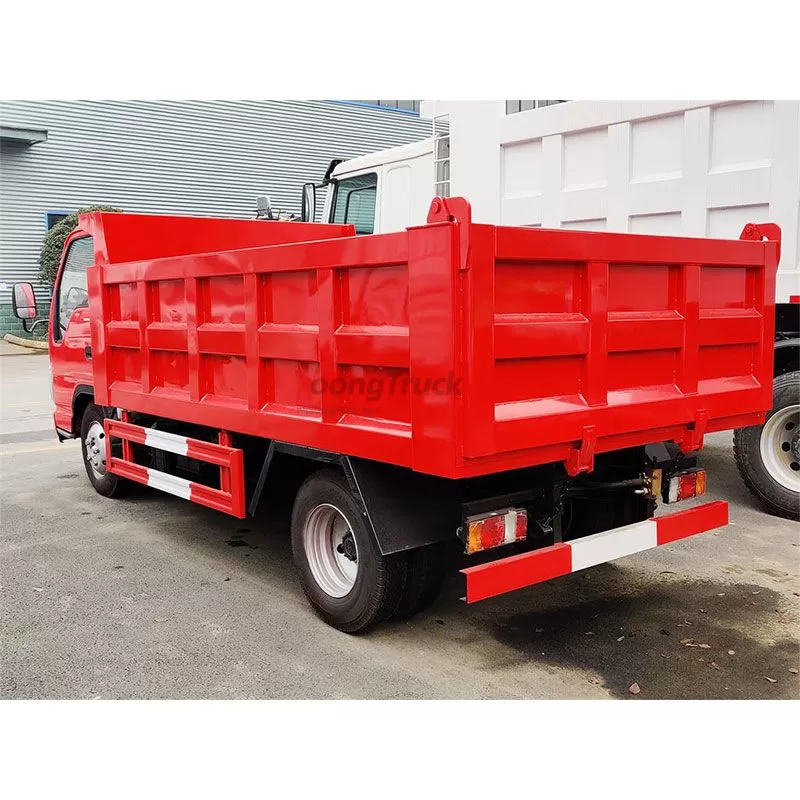

Isuzu Dump Truck
The Isuzu mini ELF dump truck adopts original single cabs, the appearance and interior are consistent with the light truck, and the narrow body has very good flexibility, which is convenient to drive on a narrower road section, but the internal riding space is compared with the current one. ISUZU Dumper Trcuk manufacturing is our core business, we also have Isuzu NKR dump truck, Isuzu NPR dump truck, Isuzu Giga heavy duty dump truck.Our Powerstar Standard Dump Truck reliable performance, low maintenance and innovative features for every country. We can change our design to your country condition.
<table kche-color-black kche-table kche-table-rules kche-table-rules-rows">
| Item No. | ISUZU |
| Driving Type | 4x2 |
| Engine Power | 98 HP |
| Capacity | 3 tons |
| Remarks | Cargo box with customized color and dimensions |
PRODUCT DETAILS

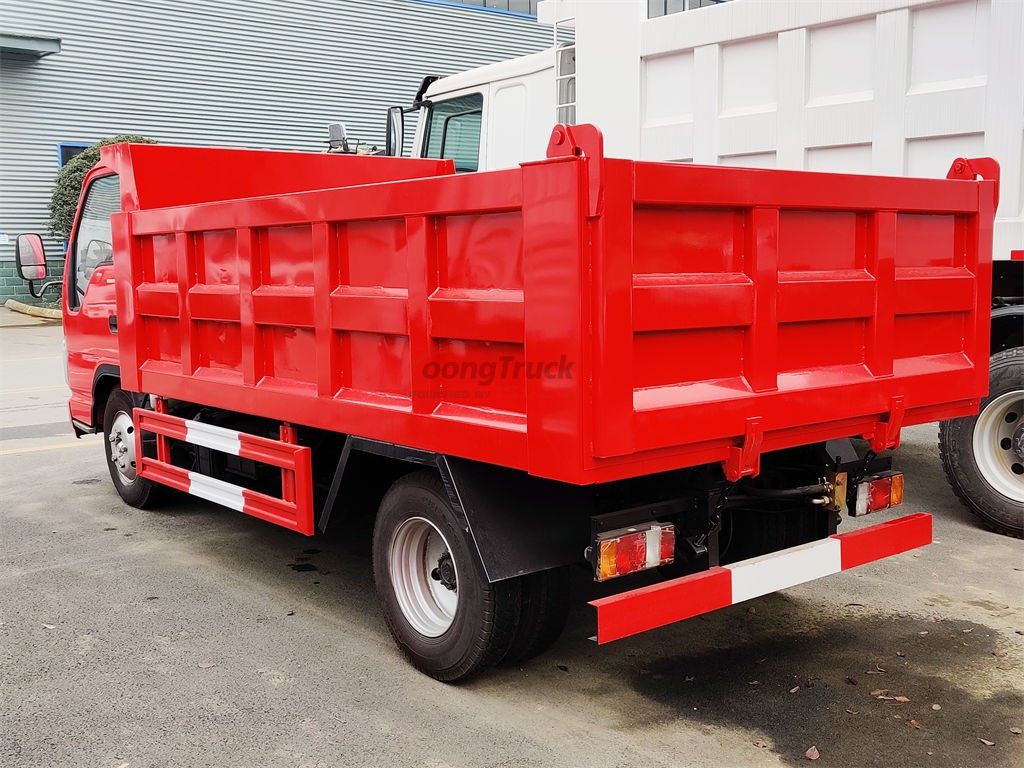

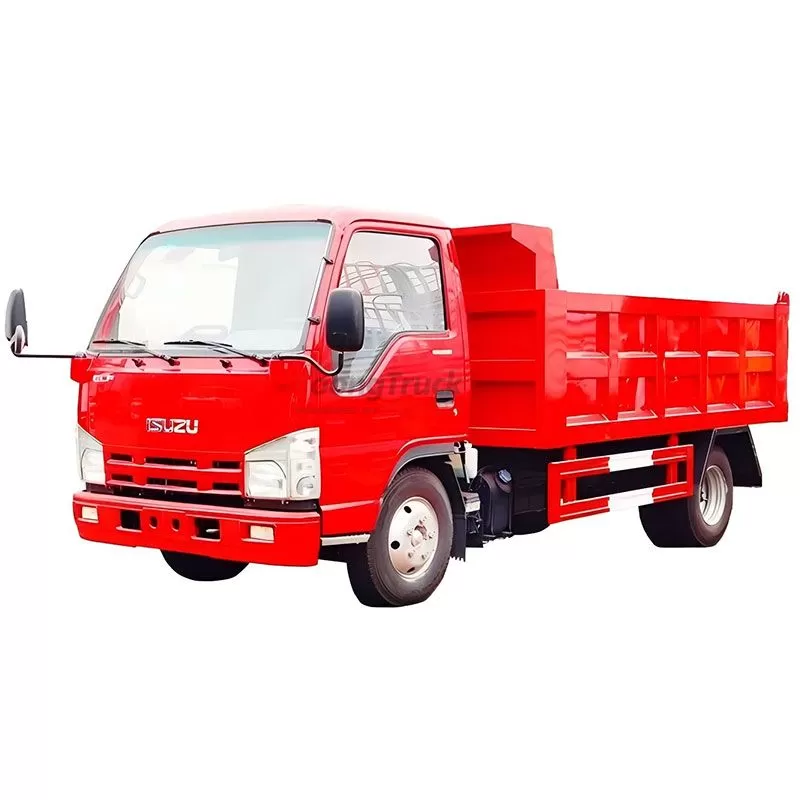

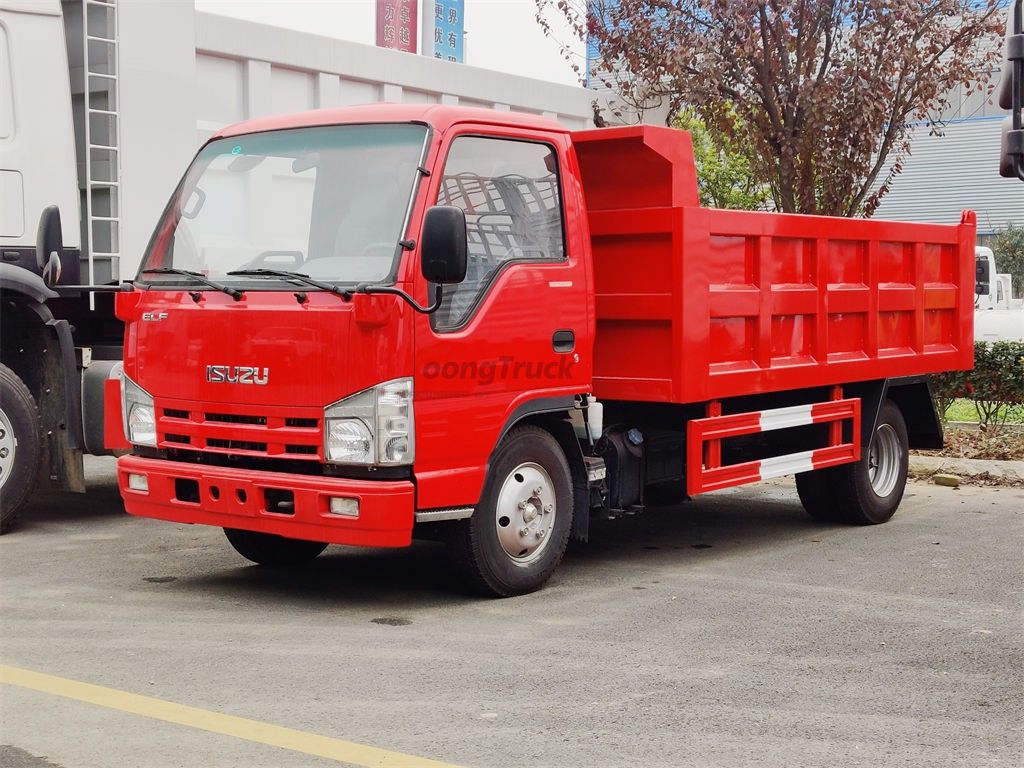

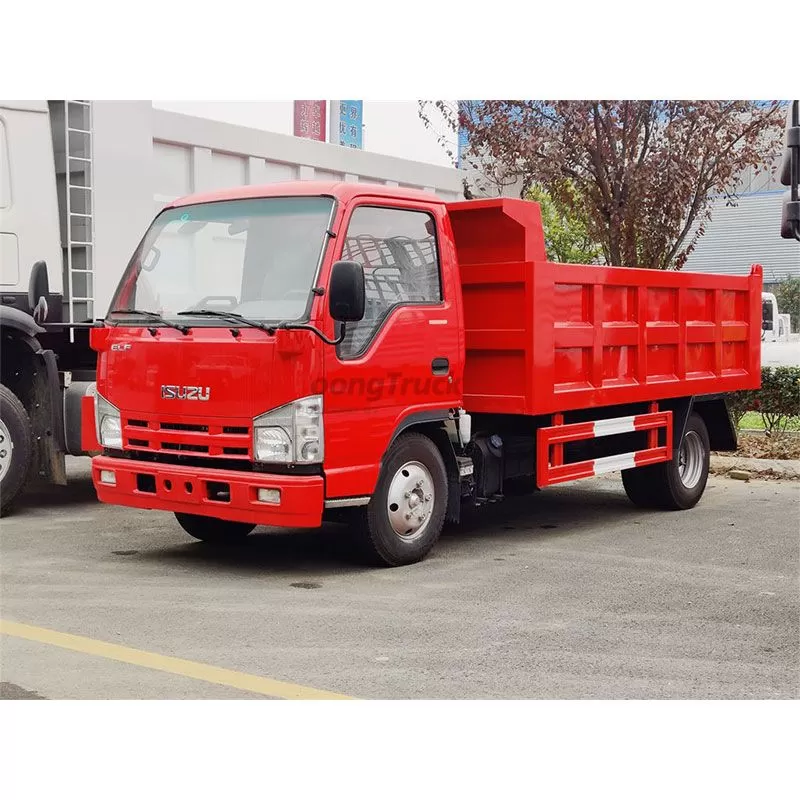

The Isuzu mini dump truck, alternatively known as the Isuzu small dump truck, Isuzu 3-ton tipper truck, or Isuzu NKR tipper lorry, is a prime example of our engineering prowess. This vehicle is equipped with hydraulic lifting mechanisms for efficient unloading, making it ideal for transporting a wide array of materials such as sand, gravel, construction waste, domestic waste, and other bulk materials. Its high-capacity dump box ensures maximum payload capacity, allowing for the efficient transportation of large volumes of material over extended distances.
The Isuzu mini dump truck is a highly specialized vehicle that boasts an original single-cab design, harmoniously integrating the exterior and interior styling of a light truck. Its narrow body ensures exceptional maneuverability, enabling seamless navigation even on narrower road sections. While the internal riding space may not be comparable to some contemporary trucks, it is optimized for efficient operation within its designated usage.
As a leading manufacturer, our expertise lies in ISUZU dump trucks, encompassing a diverse range of models including the Isuzu NKR, NPR, and the heavy-duty GIGA. Our Isuzu dump trucks have garnered a reputation for their dependable performance, minimal maintenance requirements, and innovative features tailored to the specific needs of various countries. We pride ourselves on our ability to adapt our designs to meet the unique conditions and standards of each country.
| Vehicle Parameters | |||
| Vehicle model | Vehicle brand | ISUZU | |
| Vehicle dimension | 5900×2000×2300mm | Curb weight | 3400kg |
| Cargo box dimension | 3800×2000×600mm | Loading Capacity | 3000kg |

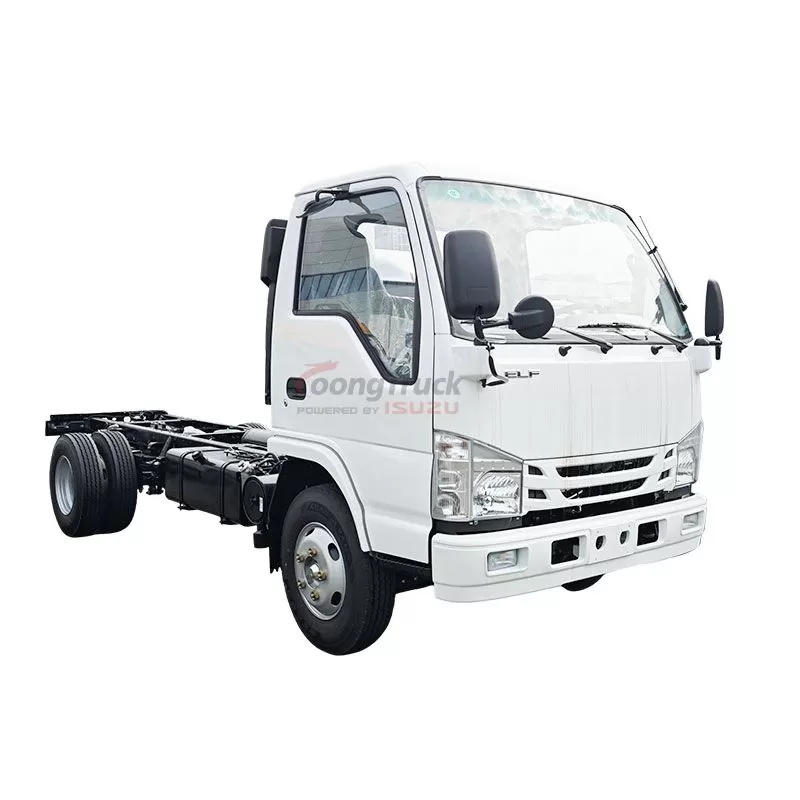

| Chassis Parameters | |||
| Chassis model | QL1071A1HAY | Chassis brand | ISUZU |
| Overall dimensions | 5700X1880X2200mm | Wheel base | 3360mm |
| Cab | ELF 100P,single row cab, allowable 2 passengers, air conditioner, USB radio interface, car interior | ||
| Engine | 4KH1CN5LS | ||
| Horse power | 98 hp | ||
| Emission | Euro 5 | ||
| Displacement | 2999ml | ||
| Tire | 7.00R16 | Transmission | 5 speed forward 1 reverse, manual |
| Steering device | Power assisted steering | Steering wheel | Left hand drive |

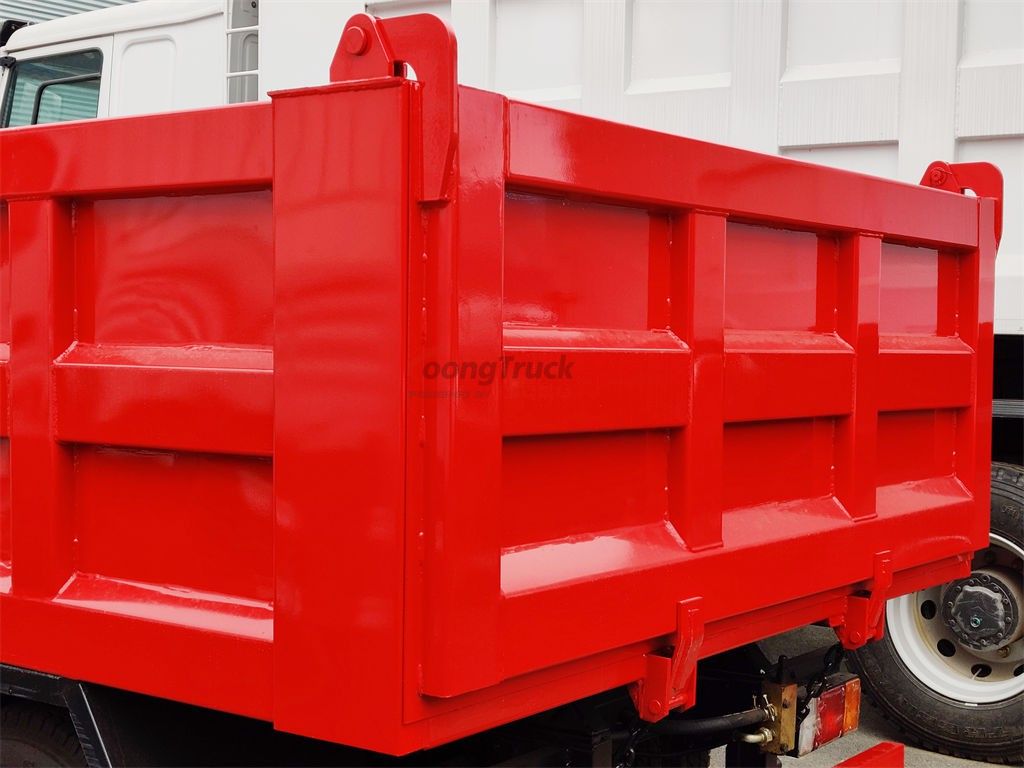

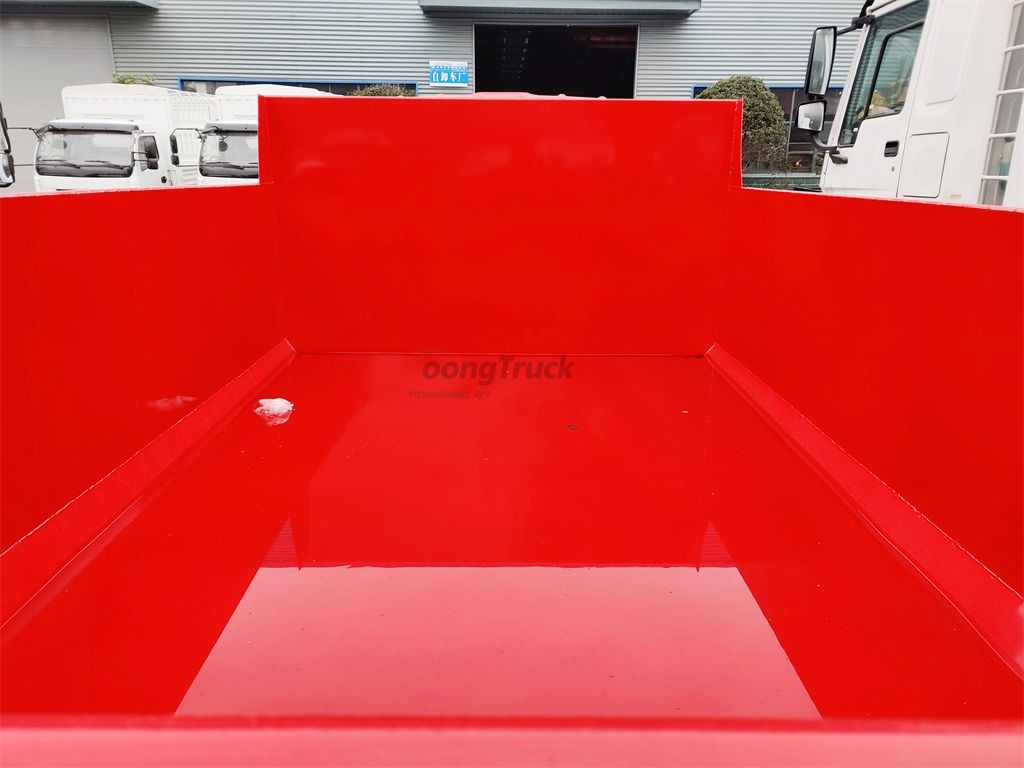

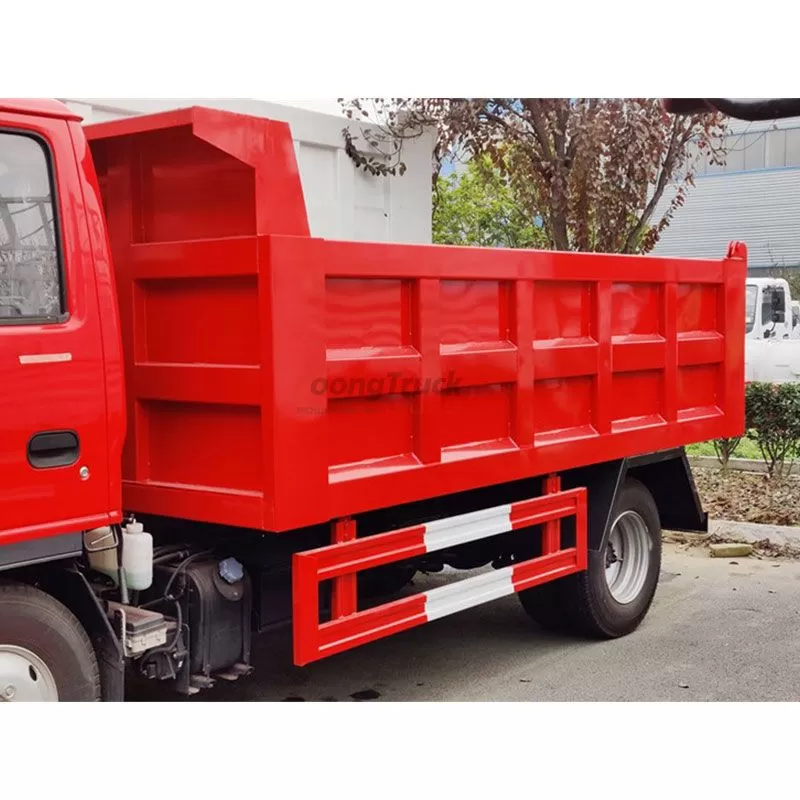

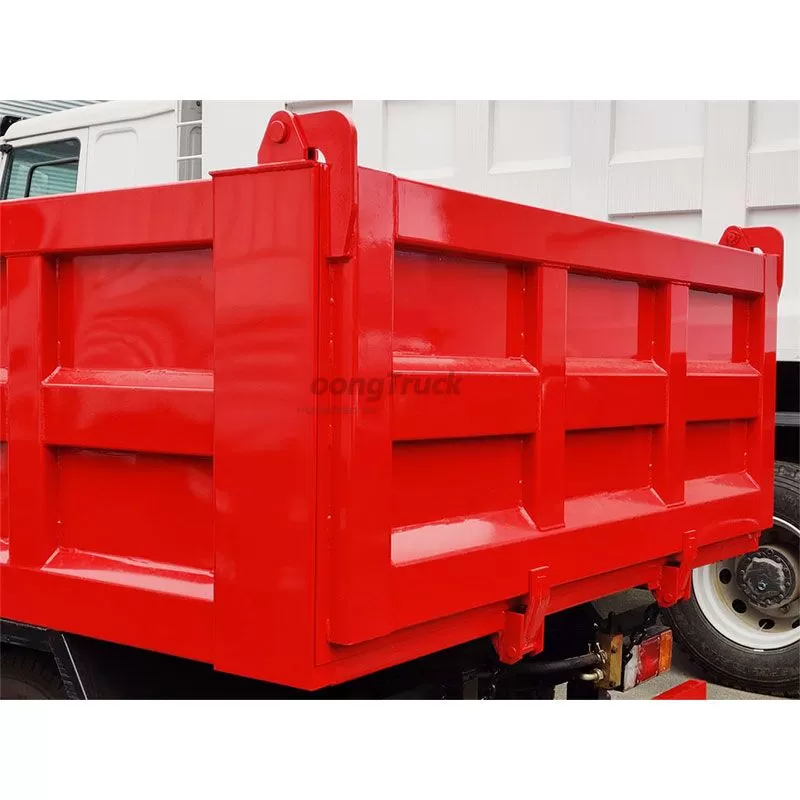

| Box Parameters | |||
| Loading Capacity | 3000kg | Van dimension | 3800×2000×600mm |
| Side plate | 3mm | Bottom plate | 4mm |

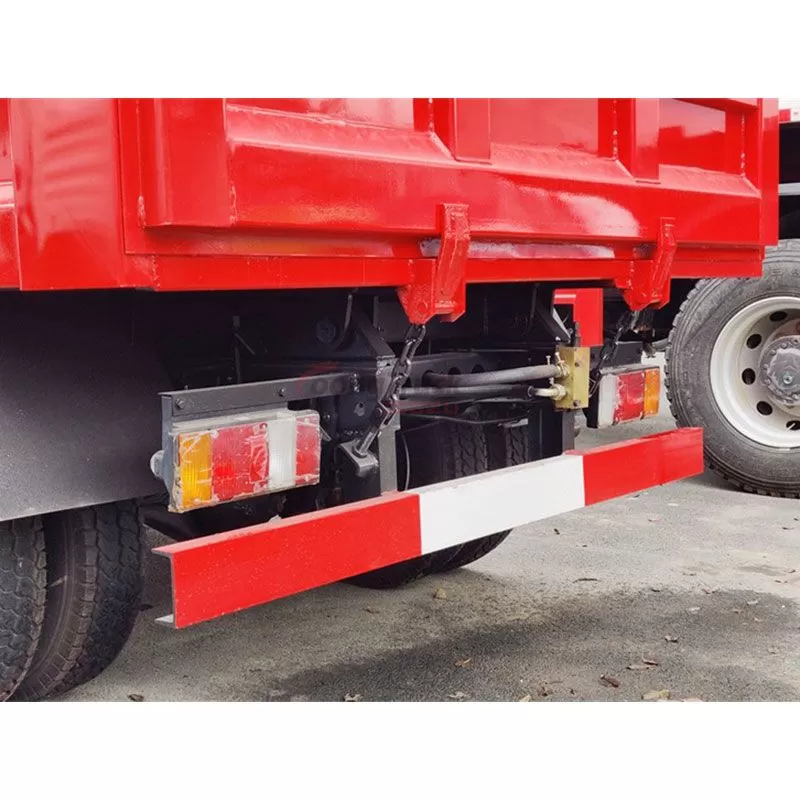

| Lifting position | middle | Dumping direction | Rear |
| Box material | Carbon steel | Color | Option |
| Standard configuration | Chassis, sub frame, high quality middle lifting hydraulic cylinder, four longitudinal beams, rectangular box body, single door | ||
