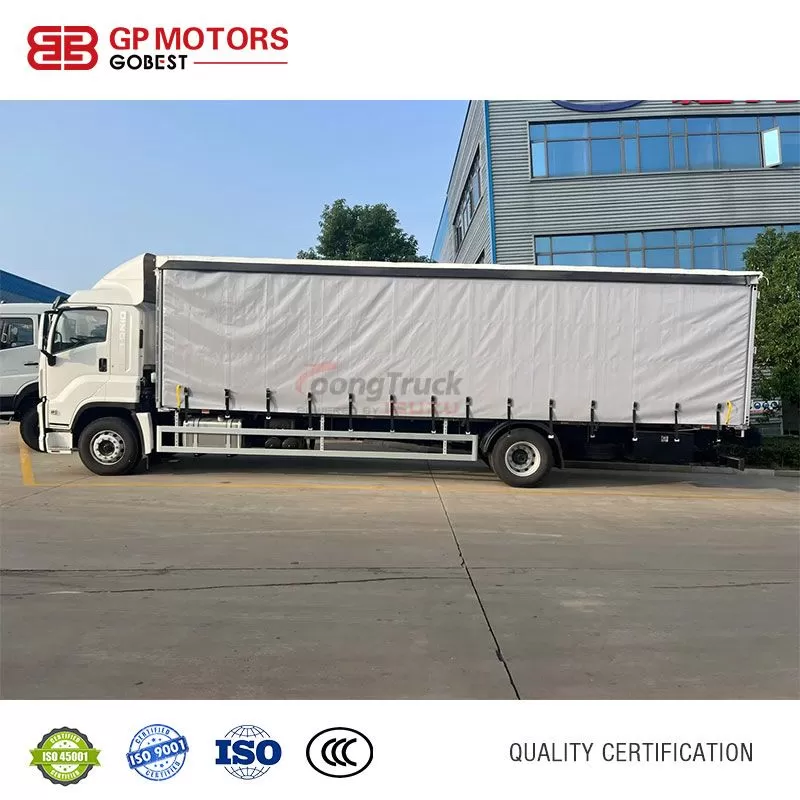

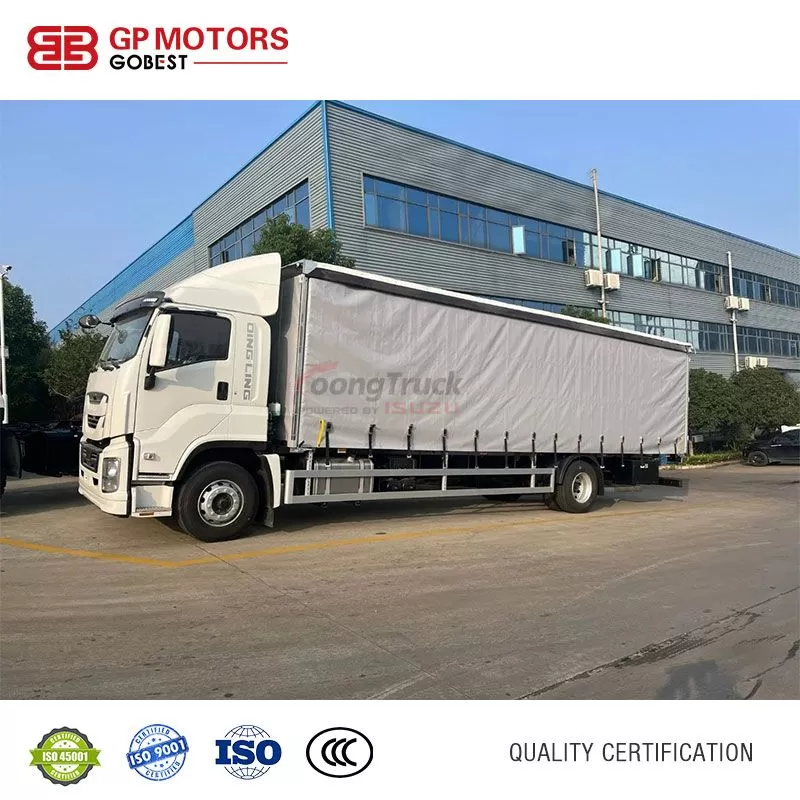

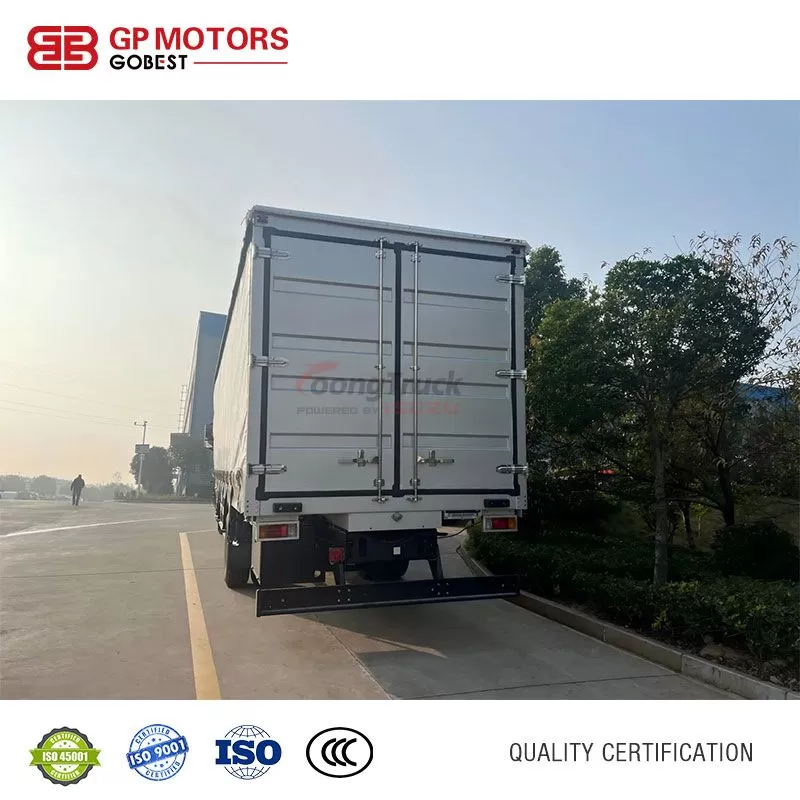

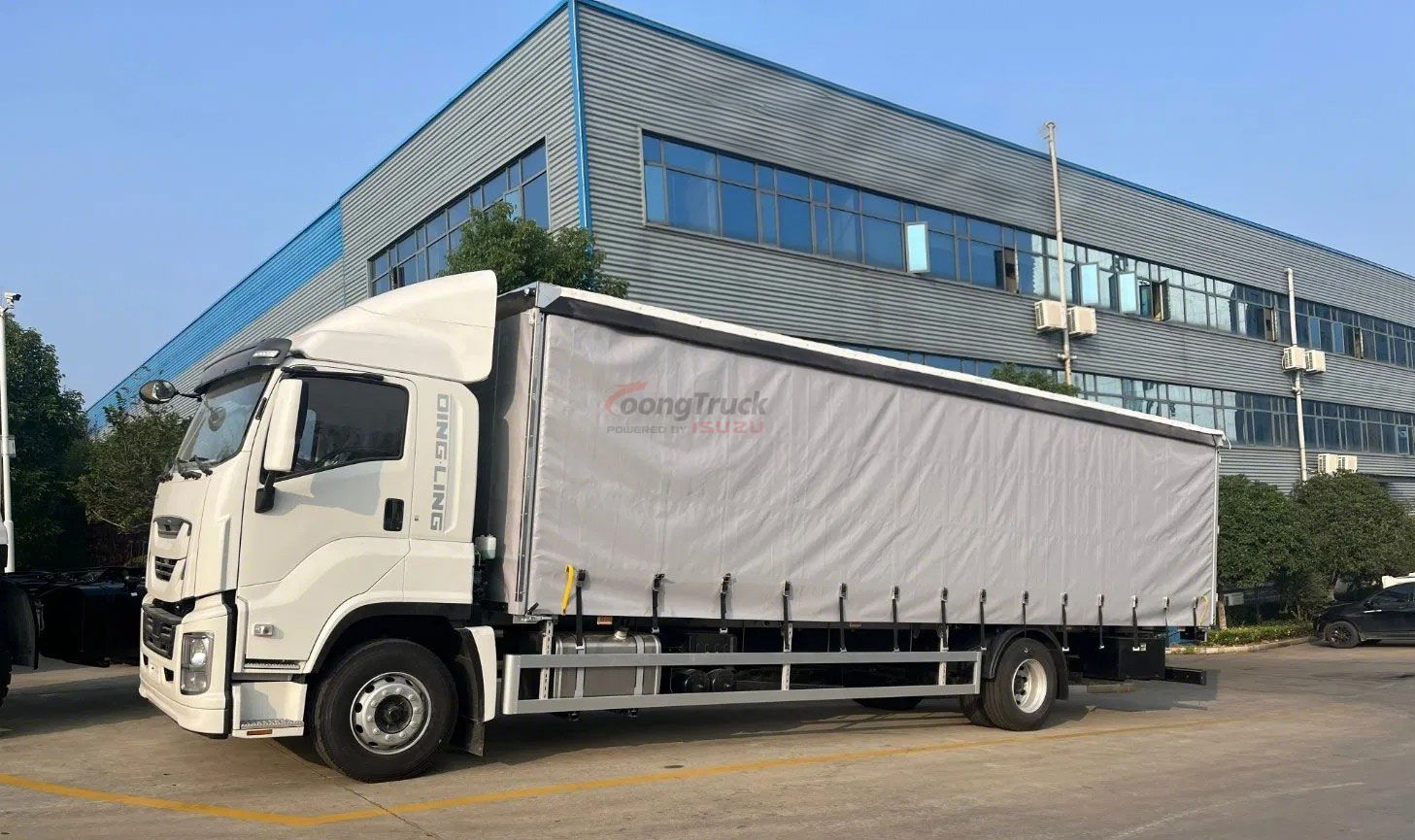

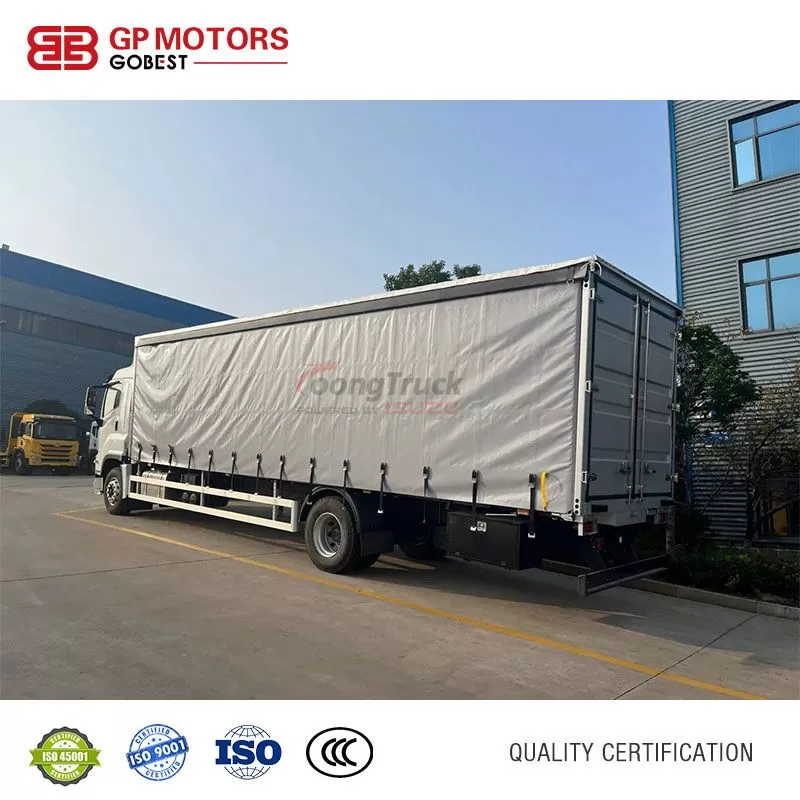

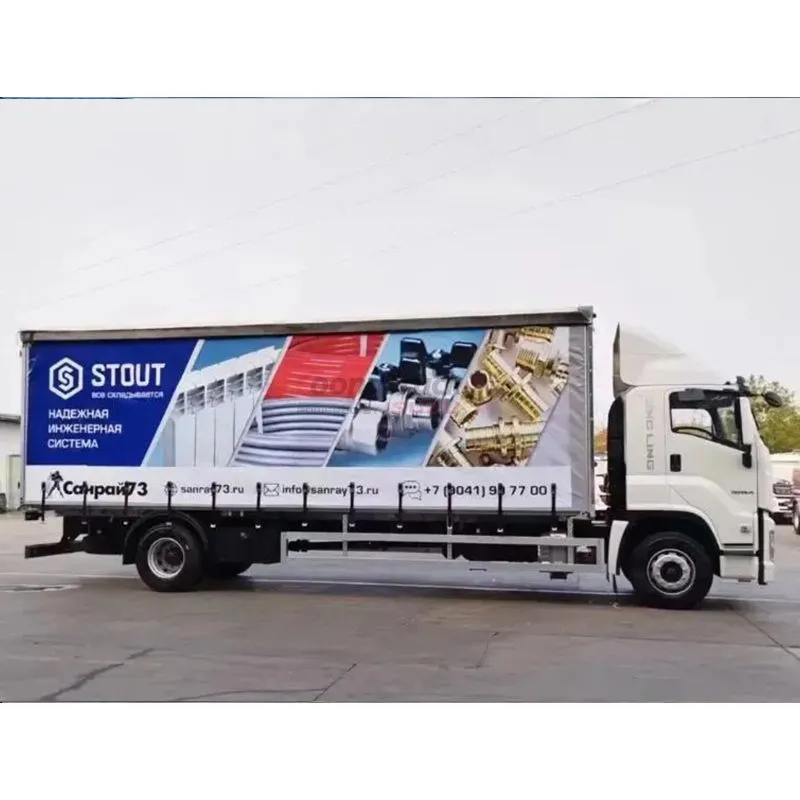

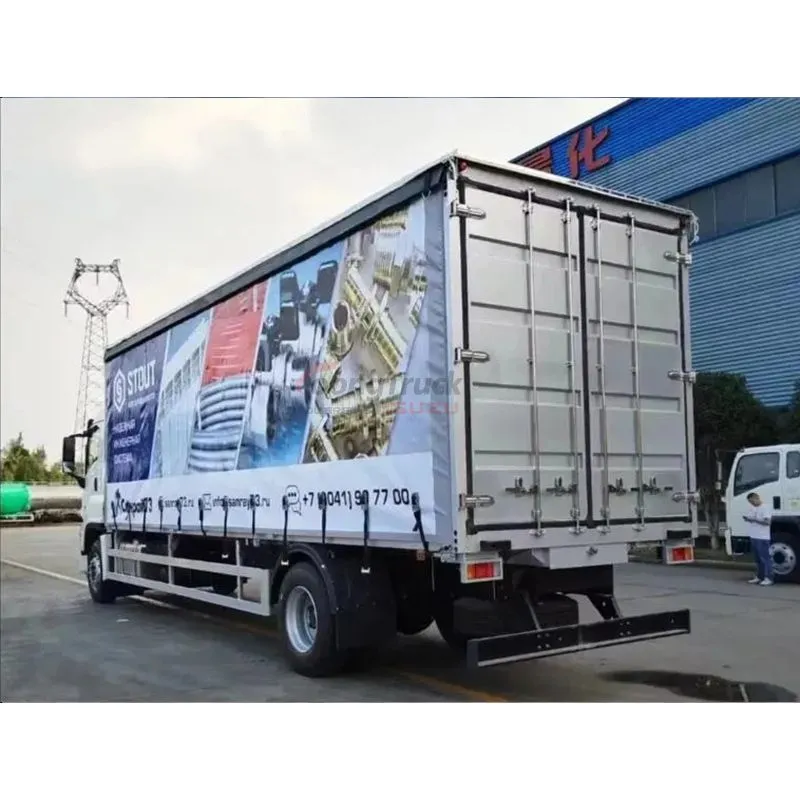

lsuzu Cargo Truck
PRODUCT DETAILS

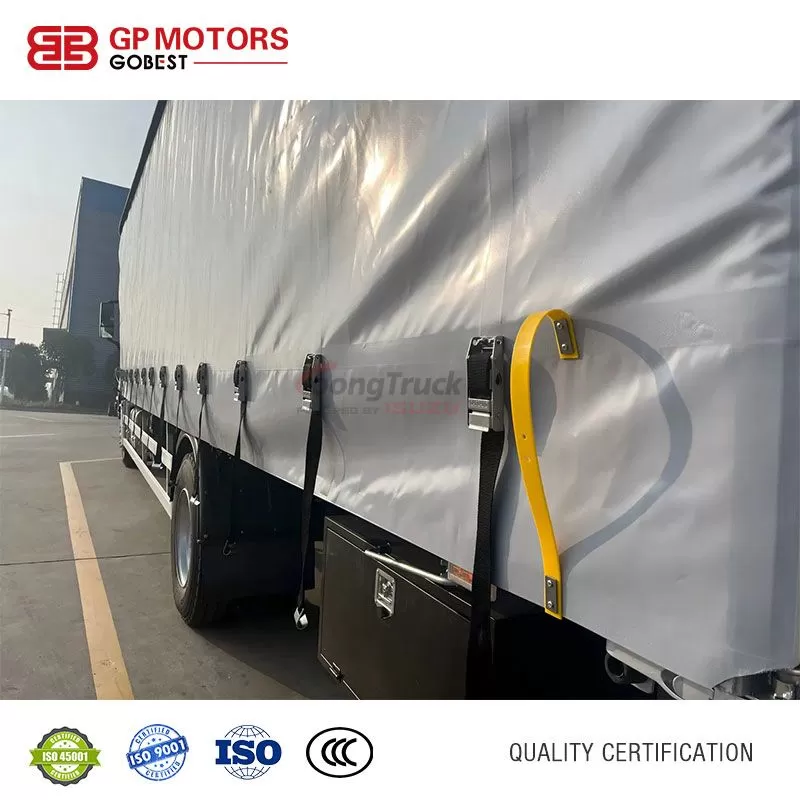

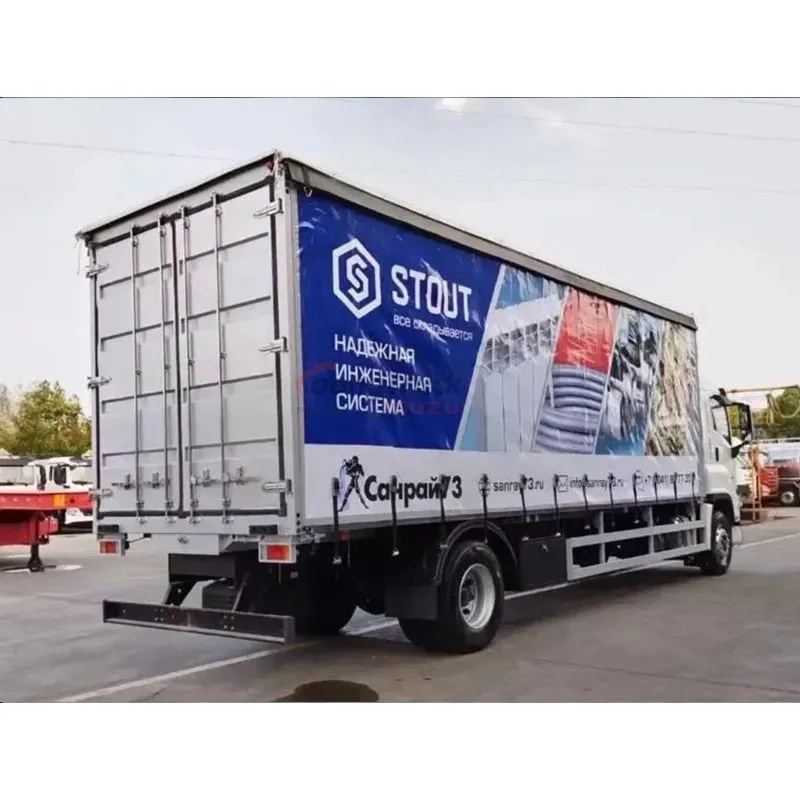

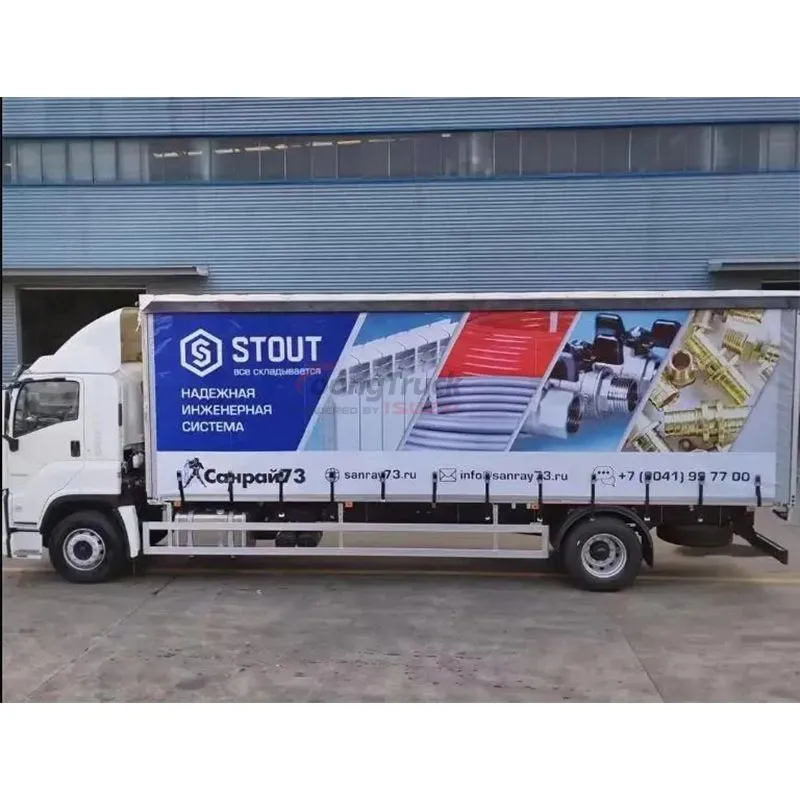

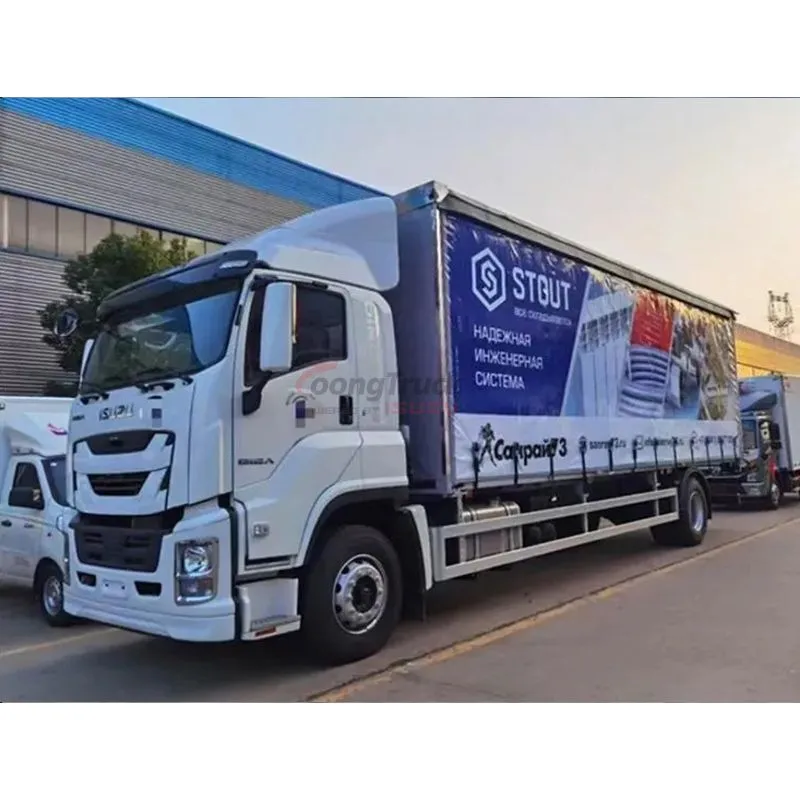

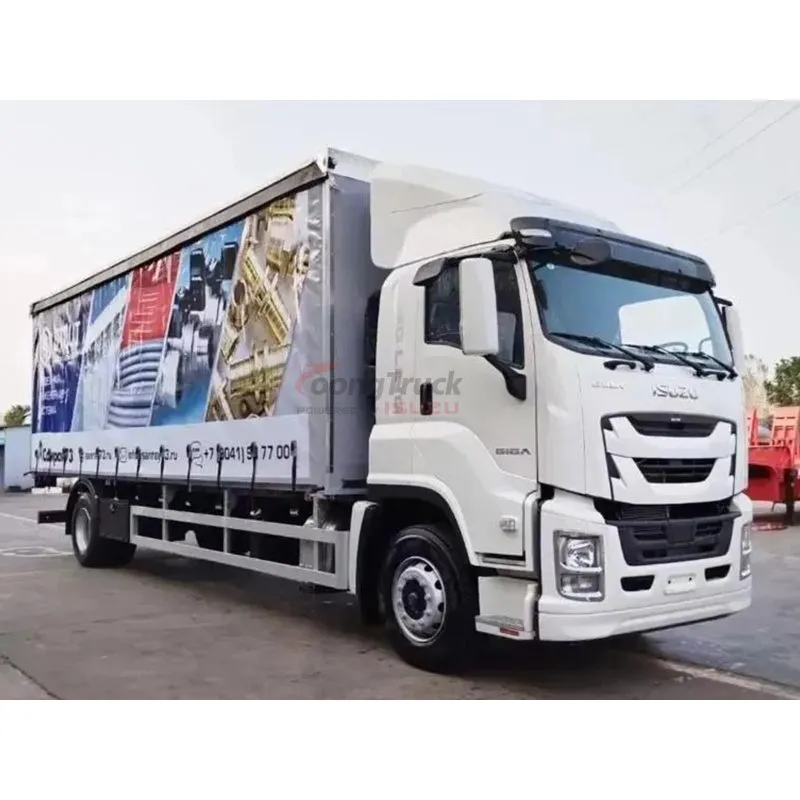

The main uses of side curtain transport vehicles are as follows:
1, Freight transportation
1. Suitable for the transportation of various industrial products, such as mechanical components, electronic products, etc. The side curtain can be flexibly opened, facilitating the loading and unloading of goods and improving loading and unloading efficiency.
For some large goods, the large space and side loading and unloading characteristics of side curtain transport vehicles enable them to better adapt to the transportation needs of special sized goods.
3. Transportable building materials such as steel, wood, etc. The design of the side curtain facilitates quick loading and unloading in construction sites and other places.
2, Logistics delivery
In urban logistics distribution, side curtain transport vehicles can easily enter narrow streets and alleys, providing efficient distribution services for various commercial places and warehouses.
2. For the transportation of express and small goods, side curtain transport vehicles can be flexibly adjusted according to the size and quantity of the goods to improve transportation efficiency.
3, Special cargo transportation
For some goods that require ventilation, such as agricultural products, flowers, etc., the side curtain of the side curtain transport vehicle can be opened to ensure good ventilation of the goods.
For goods with special requirements for temperature and humidity, side curtain transport vehicles can be equipped with corresponding insulation and moisture retention equipment to meet the transportation needs of the goods.
| Driving Type | Left Hand Drive |
| Overall Dimension（L*W*H） | 10000*2550*3900mm |

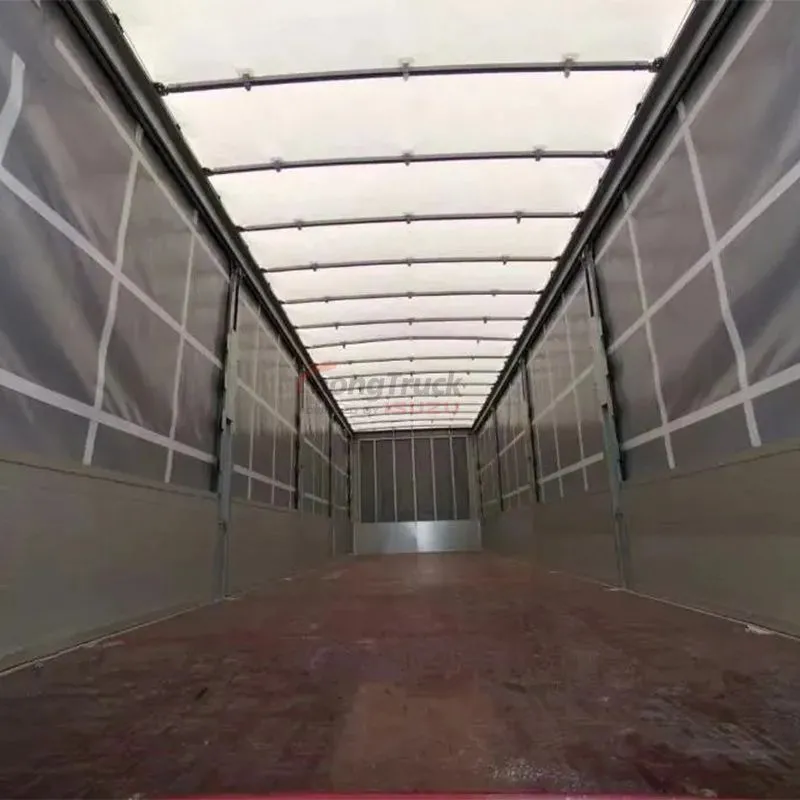

| Box Dimension（L*W*H） | 7550*2450*2530mm |
| GVW | 16000Kg |
| Curb Weight | 7510Kg |
| Axle loading: | |
| Wheelbase | 5800mm |
| F/R Track | 1960/1855 |
| Approaching Angle/Departure Angle(o) | 15/13 |
| Tire No. | 7（Including Spare Tire） |
| Tire | 10.00R20 16PR |
| Color: | Optional |
| Max Speed（Km/h） | 105km/h |
| Engine | |
| Engine System | 4 Stroke, High Pressure Common Rail, Inter-cooling Turbo-Charged, 4 Cylinders |
| Emission Route | DPF |
| Model | 4HK1-TC50 |
| Fuel Type | Diesel Engine |
| Max output | 150Kw |
| Horsepower： | 205Hp |
| Max Torque | 650N.m |
| Emission Standard | Euro V |
| Displacement: | 5193ml |
| Transmission: | |
| Model: | MLD-6Q |
| Type | Manual |
| Forward/Reverse | 6F/1R |
| Brake System: | |
| Service Brake | Dual Circuit Compressed Air Brake |
| Parking Brake | Spring Energy, Compressed Air Operating on Rear Wheels |
| Auxiliary System | Engine Exhaust Brake |
| Electrical System | |
| Battery | 2*12-70Ah |
| Alternator | 28V-70Ah |
| Starter | 24V/7.5Kw |
| Cab | |
| One Row and Half Cab with Air Conditioner | |
| Other Equipment: | |
| Power Steering, ABS, Maintenance Free Battery, Retro-reflective marking，Data Recorder，Vehicle Speed Light | |
