N Series Truck lsuzu

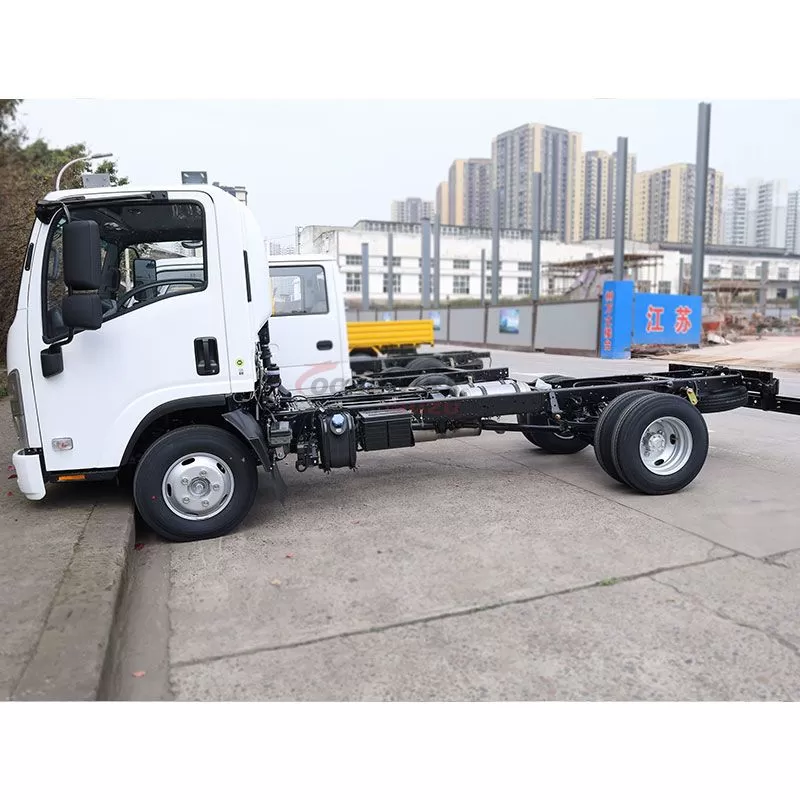

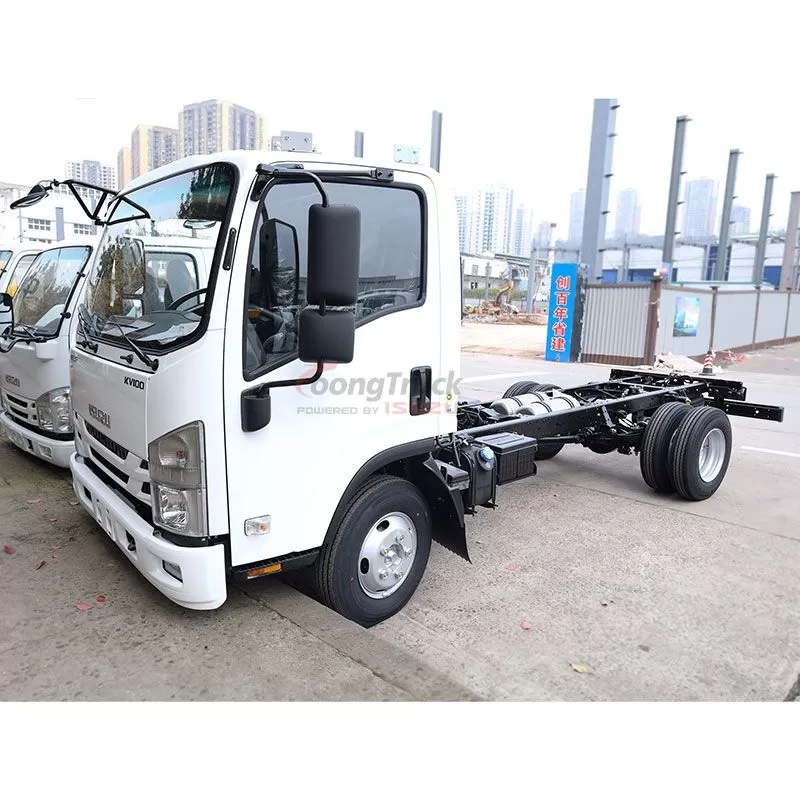

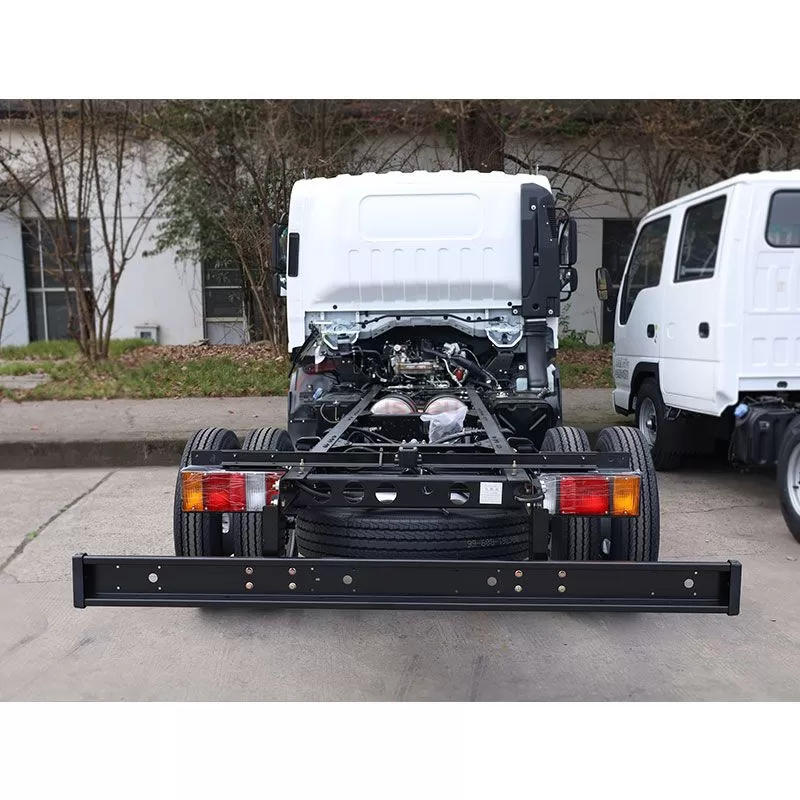

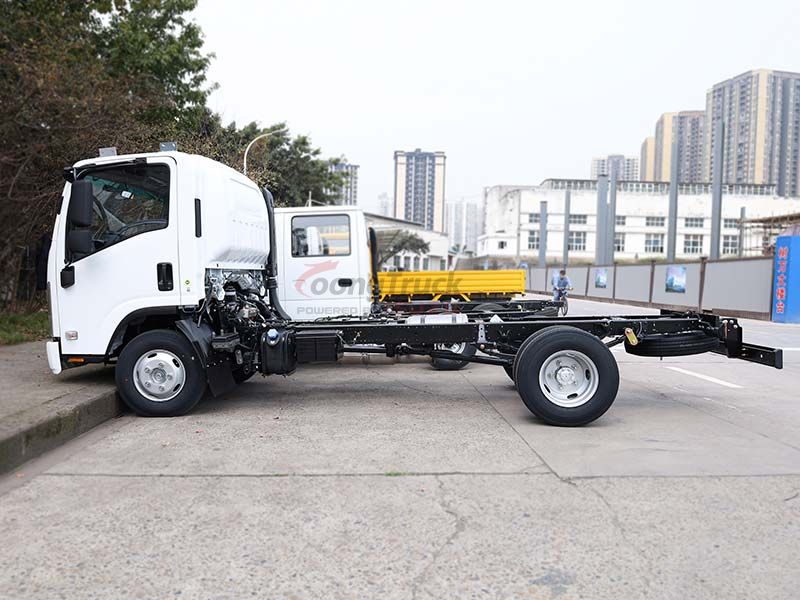

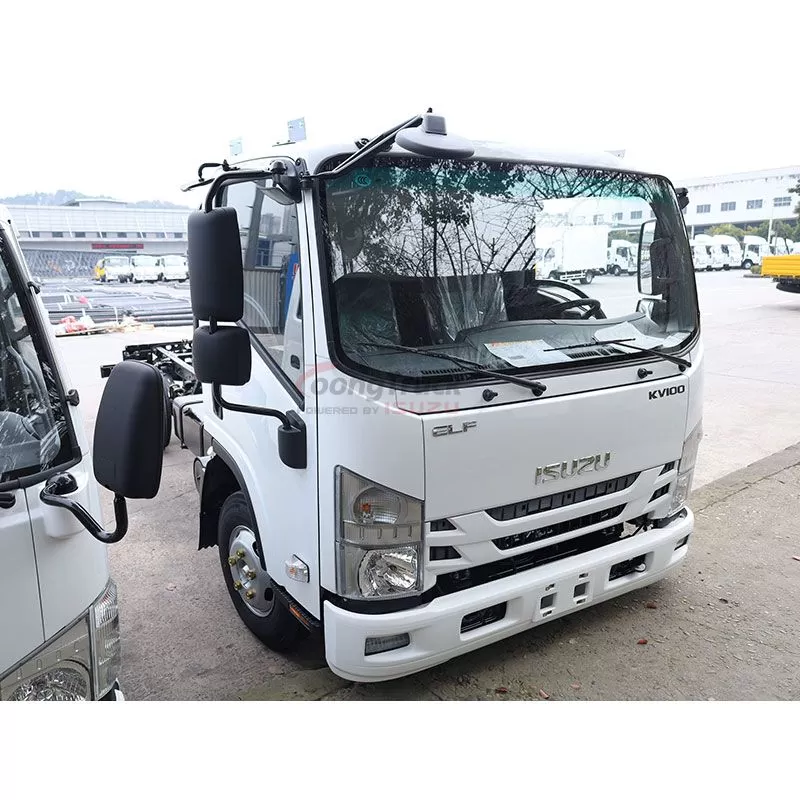

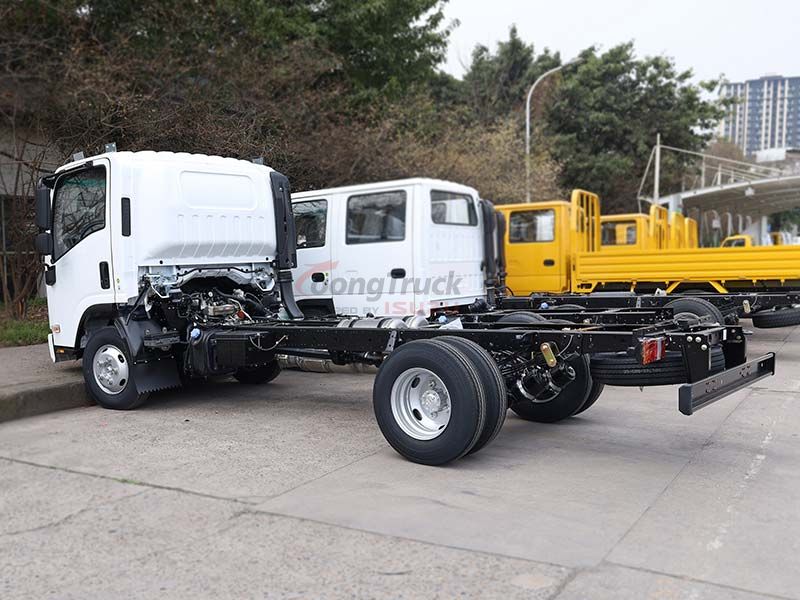

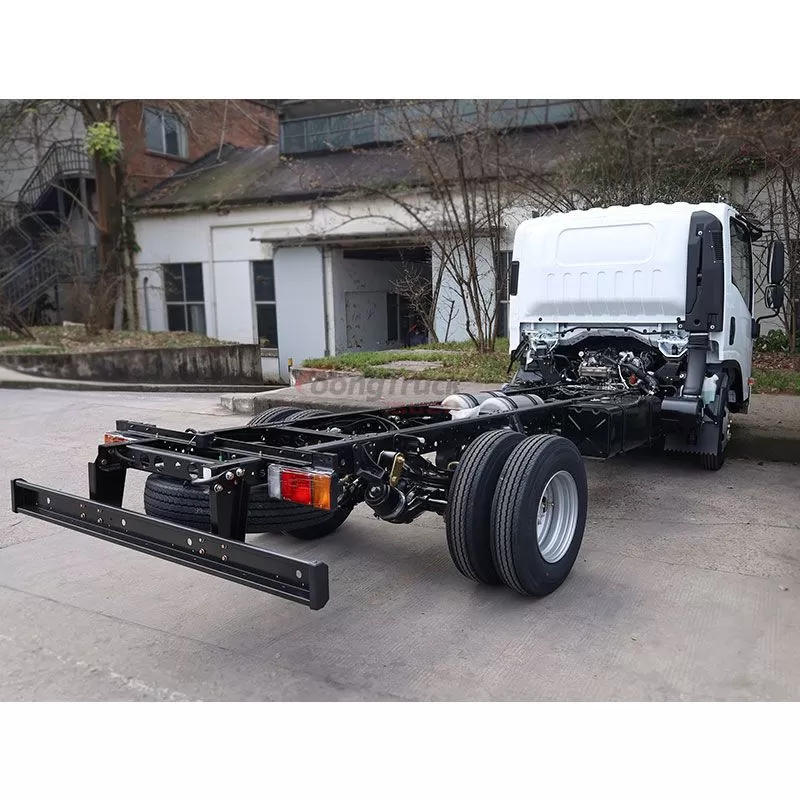

The Isuzu KV100 chassis is economical, practical, efficient and reliable, and is suitable for various light transport tasks, such as short-distance urban distribution, urban logistics transportation, etc. The Isuzu KV100 chassis has a solid structural design, abundant power, stable control, safety and reliability, and is a small commercial vehicle chassis favored by users.
| Work capacity: | 3～6tons |
| Engine power: | 120HP |
| Engine type: | 4HK1CN6LB |
| Axle drive: | 4x2,LHD |
| Gear box: | MSB-5MT |
| Remarks: | Isuzu KV100 3x cabin truck chassis |
PRODUCT DETAILS
Isuzu KV100 light cargo truck with 4KH1 engine also called Isuzu KV100 chassis,Isuzu KV100 light-duty chassis,Isuzu KV100 NPR caogo truck chassis,Isuzu 120HP KV100 light truck chassis,Isuzu KV100 3x cabin truck chassis, is an economical, practical, efficient and reliable light commercial vehicle chassis, suitable for urban freight and short-distance delivery business. The 120-horsepower powertrain provides strong power support for the vehicle, and the lightweight structural design improves the operating efficiency and fuel economy of the vehicle. The chassis has stable control, comfortable driving, excellent safety performance and reliability, and is favored by the majority of users. Isuzu KV100 light cargo truck with 4KH1 engineprovides users with a reliable and efficient commercial transportation solution, injecting vitality and innovation into the urban logistics and transportation industry.
| General information | Wheelbase(mm) | 3360 | 3815 | |||
| GVW (kg) | 4495 | 7300 | ||||
| Curb Weight (kg) | 2200 | 2250 | ||||
| Payload (T) | 1-1.5 | 4.2 | ||||
| Max Speed (km/h) | 95 | 98-105 | ||||
| Engine | Model | 4KH1CN5LS/Optional 4KH1CN5MD | ||||
| Displacement (L) | 2.999 | |||||
| Rated Power (kw/rpm) | 72(98hp)/3400 / Optional 85(115hp)/2900 72(98hp)/3400 / Optional 85(115hp)/2900 | |||||
| Max. Torque (N.m/rpm) | 220/ 1700 /Optional 277/ 1500 | |||||
| Number of cylinder | 4 Cylinders | |||||
| Injection system | high pressure common-rail diesel injection | |||||
| Emission Standard | Euro V | |||||
| Fuel type | Diesel | |||||
| Transmission | Transmission | MSB | ||||
| Control | Manual | |||||
| Gears | 5 Forward + 1 Reverse | |||||
| Cab | Cabin | single | ||||
| Diver and Passengers | 1+2 | |||||
| Chassis | Drive Type | 4x2 | ||||
| Brake | Oil brake | |||||
| Tire | Tires | 4 | ||||
| Standard | 7.00R16 14PR,7.00-16 14PR | |||||
| Configuration | Power steering |  ● | ||||
| Radio | ● | |||||
| ABS | ● | |||||
| A/C | ● | |||||
| Notes Equipped ● Optiona ○ | ||||||

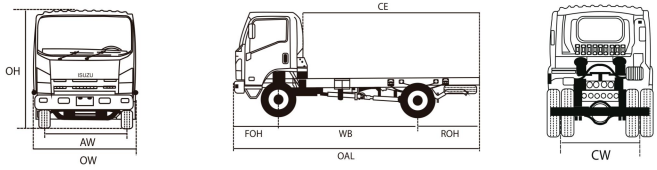

| Overall DIMENSION | units：mm | |||||
| Model | Wheelbase/WB | 3360 | 3815 | |||
| Overall Length/OAL | 5995 | 6760 | ||||
| Overall Width/OW | 1995 | 1995 | ||||
| Overall Height/OH | 2260 | 2260 | ||||
| 1. ● means standard configuration. 2. All above information is for reference only, and will be updated timely without notice; 3. The listed models are part of the full products range, any special request will be available on request. | ||||||
 | ||||||
