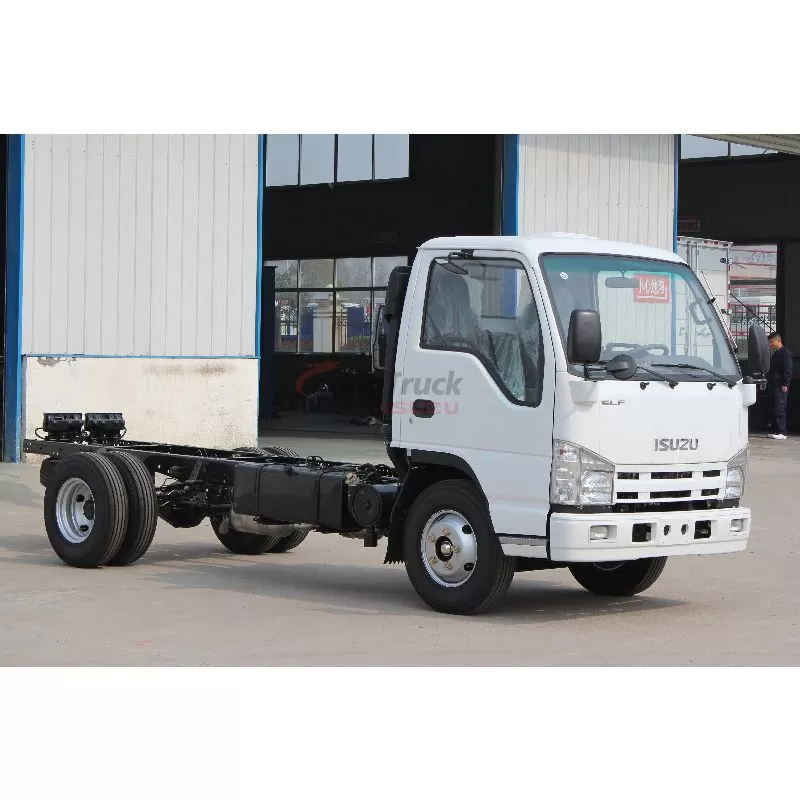

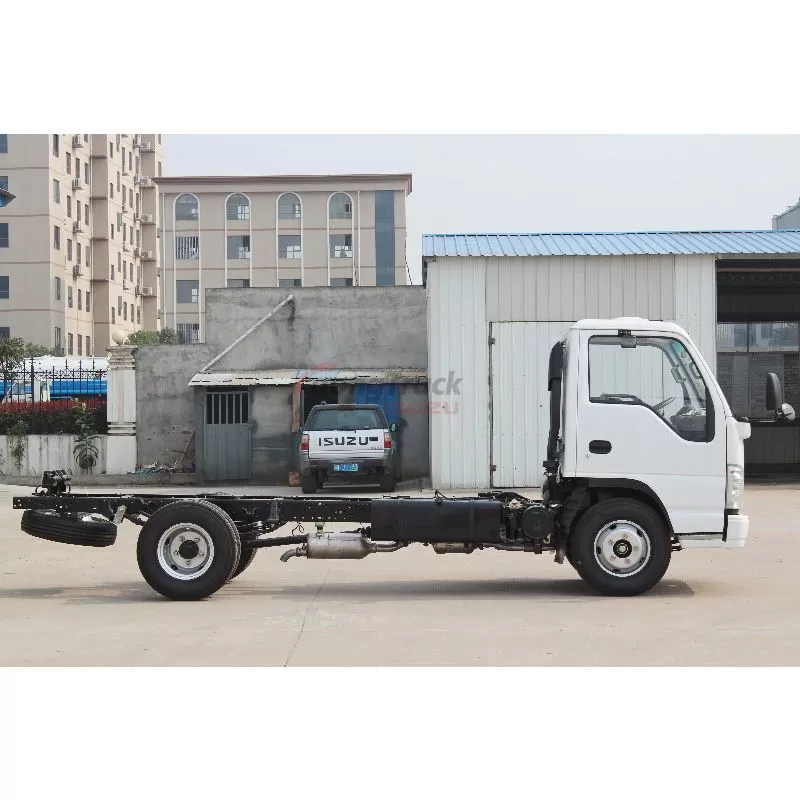

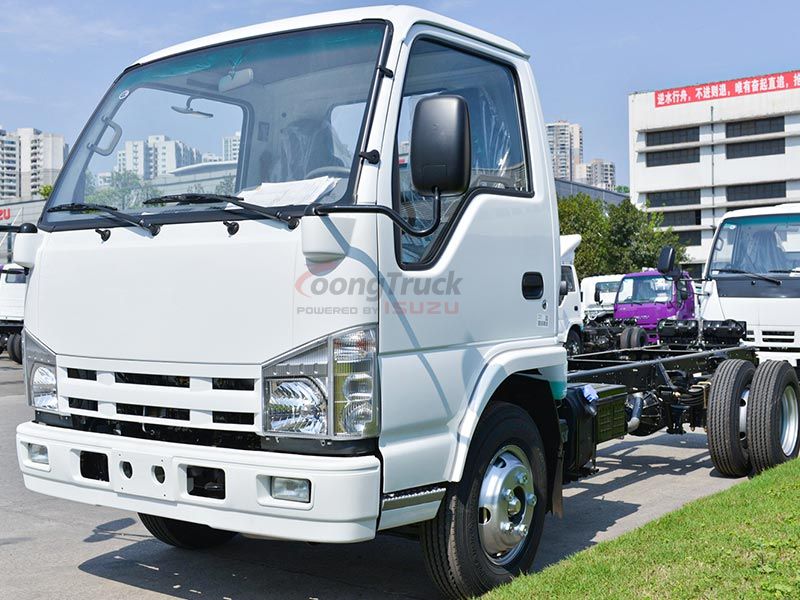

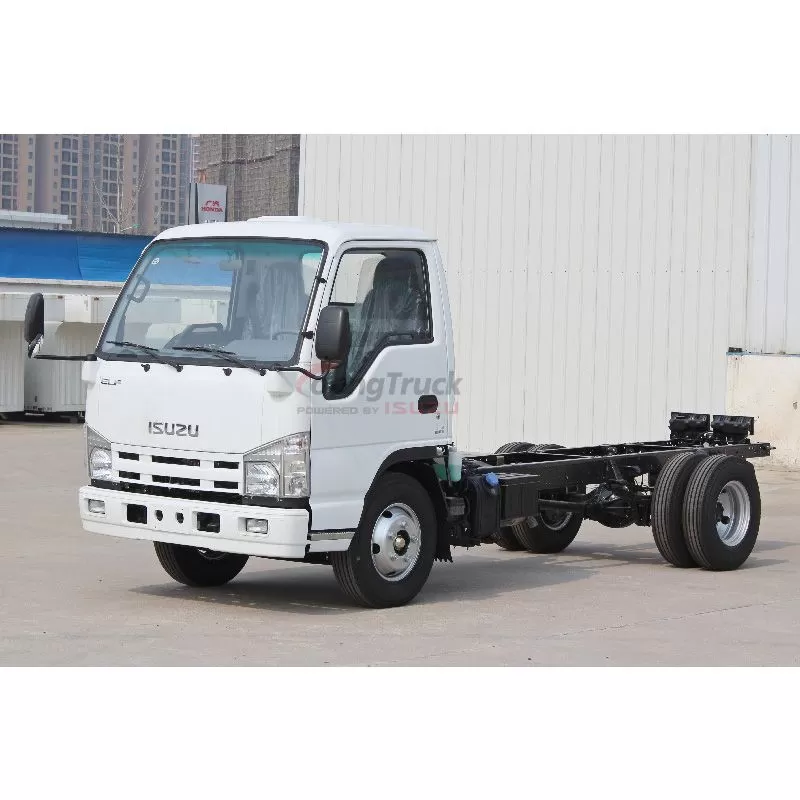

N Series Truck lsuzu

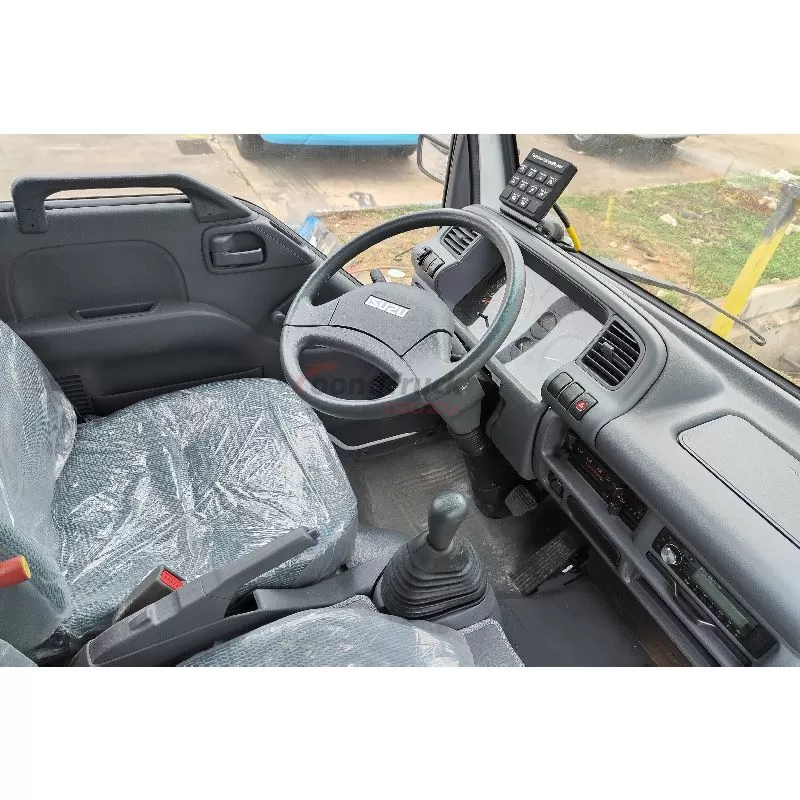

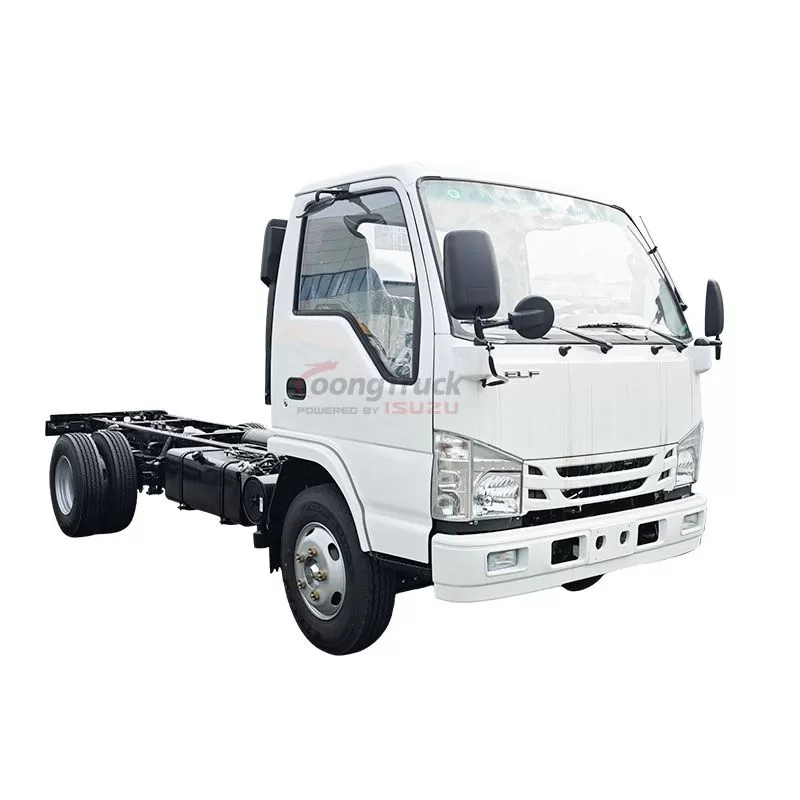

This 100P chassis is equipped with 120HP 4KH1CN6LB engine, manual MSB-5 transmission with 5 forward gears and 1 reverse gear, newly developed chassis with 2 seats, wheelbase 3360mm, GVW 7300kg; multi-function steering wheel, rear view camera, modern body design, low fuel consumption, low maintenance cost,highly manoeuvrable.
| Work capacity: | 2～5tons |
| Engine power: | 120HP |
| Engine type: | 4KH1CN6LB |
| Axle drive: | 4X2,LHD |
| Gear box: | Manual MSB-5 |
| Remarks: | Isuzu 100P light truck chassis |
PRODUCT DETAILS
Isuzu NQR NKR 100P light truck chassis also called Isuzu 100P cargo truck,Isuzu NKR light truck chassis,Isuzu 100P chassis.The Isuzu 100P light truck chassis is a reliable and durable commercial vehicle chassis with versatility and adaptability. It is designed to carry a variety of body configurations, such as flatbed trucks, vans and refrigerated trucks, suitable for a variety of application scenarios such as urban delivery, logistics distribution, construction and service industries. With efficient engines and advanced safety features, the Isuzu NQR NKR 100P light truck chassis provides excellent performance and reliability, making it an ideal transportation platform for a variety of commercial needs.
| For Body size (ft) | 10ft | 12ft | 14ft | 16ft | ||||||
| General Information | wheelbase(mm) | 2490 | 2765 | 3360 | 3815 | |||||
| GVW (kg) | 4000 | 4495 | 7300 | 7300 | ||||||
| Curb Weight (kg) | 1750 | 1950 | 2100 | 2110 | ||||||
| Payload (T) | 1-2 | 2-3 | 5 | 5 | ||||||
| Max Speed (km/h) | 98 | 98-105 | ||||||||
| Engine | Model | 4KH1CN5LS | ||||||||
| Displacement (L) | 2.999 | |||||||||
| Max. Power (kw/rpm) | 72(98hp)/3400 | |||||||||
| Max. Torque (N.m/rpm) | 220/1700 | |||||||||
| Number of cylinder | 4 Cylinders | |||||||||
| Emission Standard | Euro V | |||||||||
| Trasimission | Transmission | ISUZU MSB-5S | ||||||||
| Control | Manual | |||||||||
| Gears | 5 Forward + 1 Reverse | |||||||||
| Cab | Cabin | Single | ||||||||
| Passengers | 2 | |||||||||
| Chassis | Drive Type | 4x2 | ||||||||
| Brake | drum brake, vacuum servo hydraulic, (ABS optional) | |||||||||
| Tire | Tires | 4 | 6 | 6 | 6 | |||||
| Standard | 7.00R15,10PR | 6.50R16,10PR | 7.00R16,14PR | 7.00R16,14PR | ||||||
| Configuration | Power steering |  | ||||||||
| Radio | | |||||||||
| Seat belts | | |||||||||
| A/C | | |||||||||
| ABS | | |||||||||
| Notes: Equipped Optional | Equipped | Optional | ||||||||

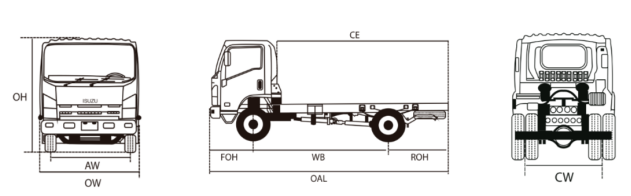

| CHASSIS DIMENSION mm | ||||||||||
| Model | Wheelbase/WB | 2490 | 2765 | 3360 | 3815 | |||||
| Overall Length/OAL | 4605 | 5230 | 5900 | 6665 | ||||||
| Overall Width/OW | 1695 | 1860 | 1880 | 1880 | ||||||
| Overall Height/OH | 2120 | 2180 | 2200 | 2220 | ||||||
 | ||||||||||
| ● means standard configuration. ●All above information is for reference only, and will be updated timely without notice; ●The listed models are part of the full products range,any special request will be available on request. | ||||||||||
The Isuzu 100P light truck chassis has won wide recognition and praise for its superior performance and reliable quality. The Isuzu 100P chassis has some significant features and advantages. The following is a brief introduction to its chassis characteristics:
Solid and reliable chassis: The Isuzu 100P is the mainstay of Isuzu's excellent commercial vehicle lineup, integrating decades of engineering expertise to provide a reliable foundation for the transportation industry. The chassis design is sturdy and stable, providing the greatest integrity guarantee for the cargo. Its maneuverability is superior to other competing products, and it can provide users with a smoother and safer driving experience.
Strong power performance: The Isuzu engine installed on the chassis, such as the 4KH1CN6LB model, has the characteristics of low noise and low fuel consumption, which not only reduces the cost of using the vehicle, but also meets the logistics and transportation industry's demand for "small tonnage and large volume" vehicles.

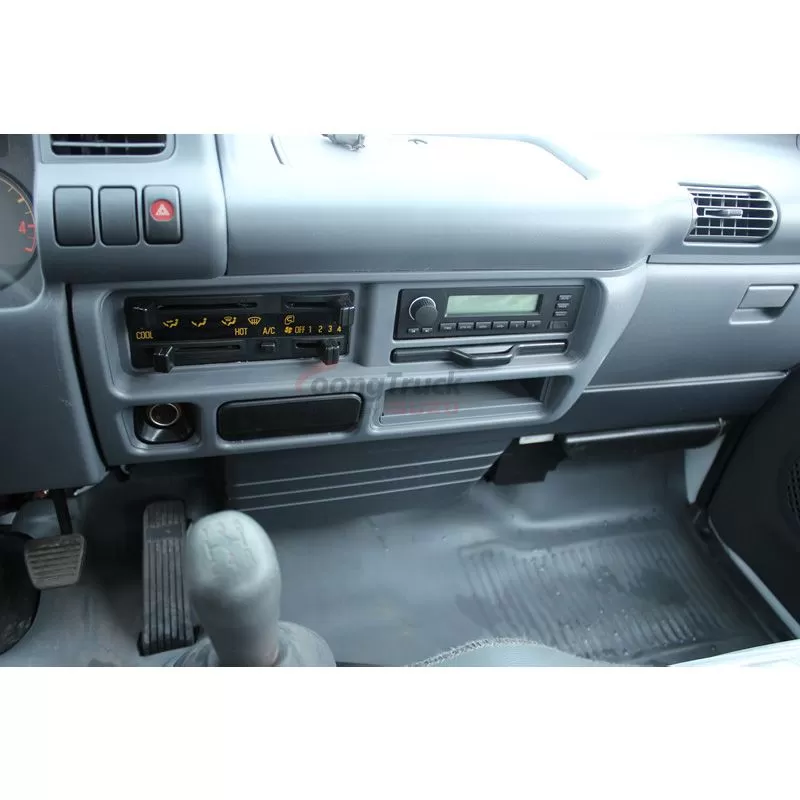

Advanced chassis configuration: The Isuzu 100P chassis configuration includes advanced facilities such as a five-speed gearbox, air brakes, power steering, ABS, central locking, etc., which all enhance the safety and comfort of the vehicle. At the same time, the chassis is also equipped with electric glass and air conditioning, providing the driver with a more convenient and comfortable driving environment.
Strong load-bearing capacity: The front axle tonnage and rear axle tonnage of the chassis are reasonably designed, and the rear axle adopts multi-stage leaf springs, which greatly improves the vehicle's load-bearing capacity and enables it to cope with various complex transportation tasks.
Superior tire performance: The tires standard on the chassis, such as 7.00R16 8PR, have good wear resistance and grip, providing stable support for the vehicle's driving under various road conditions.
