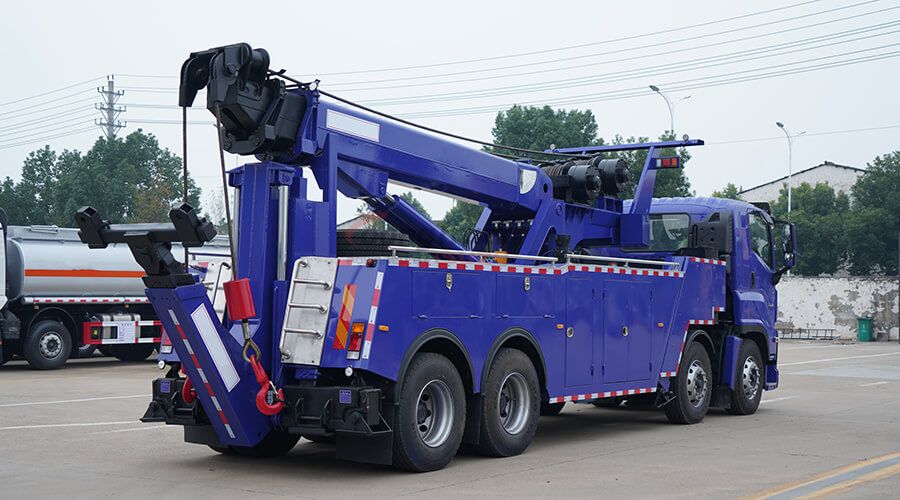

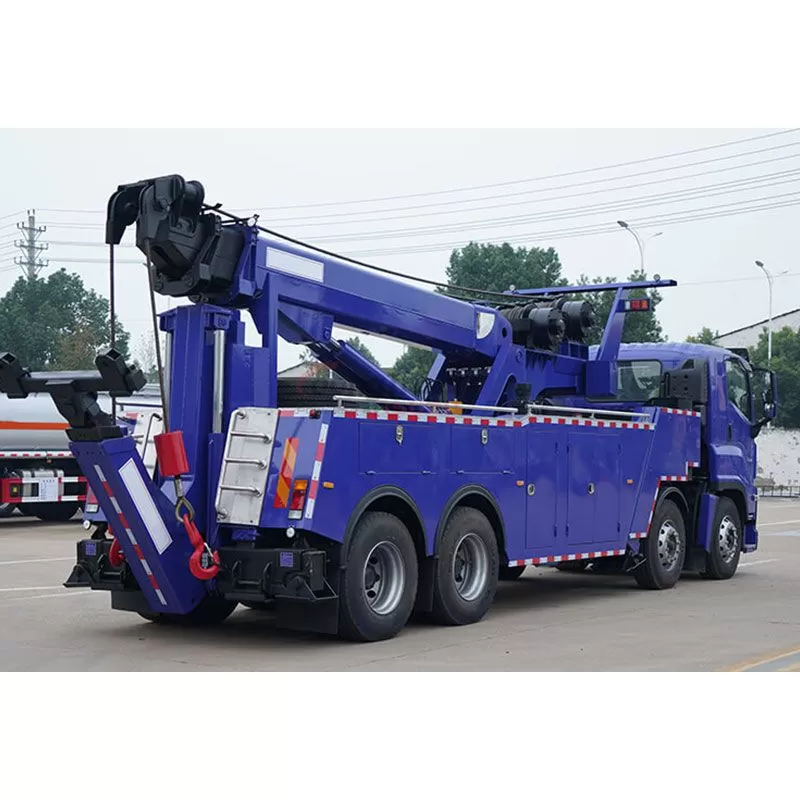

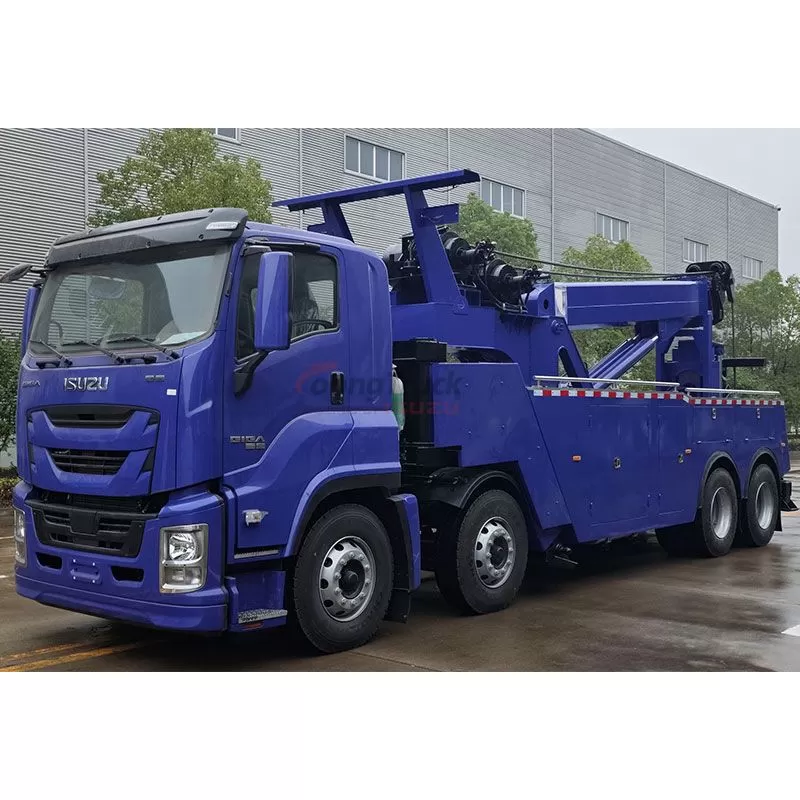

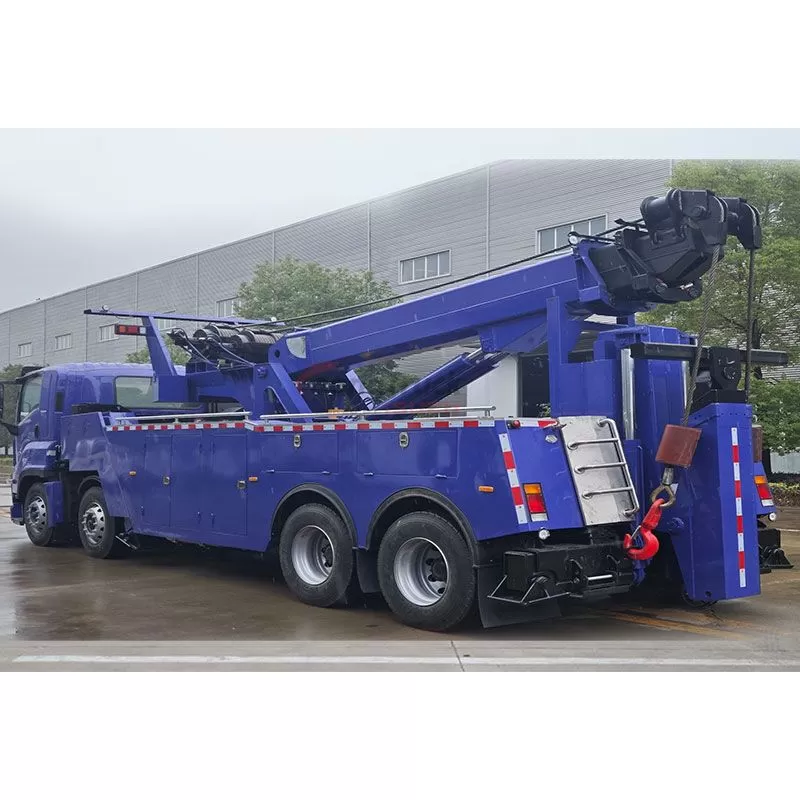

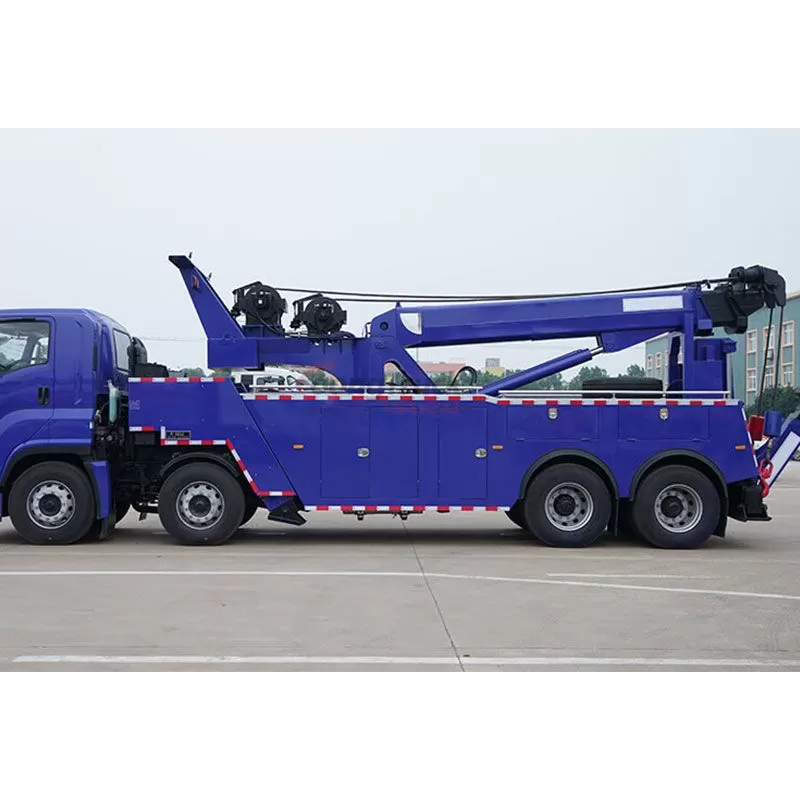

Rotary Wrecker lsuzu
Isuzu Giga 6WG1 engine recovery wrecker tow truck, also named Isuzu giga chassis heavy towing truck, is mainly used for rescue, cleaning, transportation, hoisting, towing and other rescue work of heavy-sized vehicles in highway and other road accidents or breakdowns. It serves the purpose of ensuring smooth roads and towing failed vehicles away from the scene. In our country, there are 30-ton, 40-ton, 50-ton, and 55-ton medium and heavy-duty tow truck models. In addition, the Isuzu Giga heavy-duty tow truck is also equipped with large warning lights and alarms to provide clear signs during the tow truck operation, and has the auxiliary lighting function for night rescue.
| Work capacity: | 30ton~40ton |
| Engine power: | 420HP |
| Engine type: | ISUZU 6WG1 |
| Axle drive: | 8x4 |
| Gear box: | FAST 12-shift |
PRODUCT DETAILS
Japan Isuzu Giga heavy wrecker tow truck is a type of Isuzu tow truck, also called Isuzu Giga underlift tow truck or Giga Isuzu road recovery towing truck. It is mainly used for rescue, cleaning, transportation, hoisting, towing and other rescue work of heavy-sized vehicles in highway and other road accidents or breakdowns. It serves the purpose of ensuring smooth roads and towing failed vehicles away from the scene. In our country, there are 30-ton, 40-ton, 50-ton, and 55-ton medium and heavy-duty tow truck models.
Isuzu giga 40ton Towing Recovery Truck have multiple functions, including lifting, lifting, towing, towing, etc. It can lift the axles, wheels, leaf springs, frames, etc. of the accident vehicle to facilitate loading and unloading. At the same time, it can also use the extension and amplitude of the boom to drag or lift the accident vehicle from and near the roadbed to the road surface. In addition, the heavy-duty tow truck is also equipped with large warning lights and alarms to provide clear signs during the tow truck operation, and has the auxiliary lighting function for night rescue.
ISUZU GIGA Breakdown Vehicle Trucks Recovery Transporter GIGA ISUZU 30Ton/40Ton 8x4 Heavy Underlift Towing Truck Product Description:
Purpose of Recovery Truck: ISUZU GIGA wrecker/recovery truck/towing truck isused for towing break-down cars or vehicle or bus or trailers on road.With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.
Optional brand of RecoveryTruck :howo,Dongfeng,Isuzu,JAC,JMC,Foton,Shacman...
Spare parts of Recovery Truck : Italy brand multi-way valve and balance valve; Gernamy Roxroth technology hydraulic cylinder and joint; imported sealingelement; strengthed checked plate
Capacity range of Recovery Truck:3ton, 4ton, 5ton, 6ton, 8ton, 12ton, 16ton, 20ton, 25ton, 31ton, 40ton, 50ton5. Fifth wheel attachment is optional for towing trailers as follows
Specification of Sinotruck Heavy Duty Tow Truck
| MODEL | GIGA Cab Chassis GIGA Cab Chassis | |||||||||||
| GENERAL INFORMATION | Wheelbase(mm) Wheelbase(mm) | 2100+4325+1370 | ||||||||||
| Drive type Driving type | 8x4 | |||||||||||
| GVW (kg) Gross Vehicle Weight (kg) | 44000 | |||||||||||
| Curb Weight (kg) | 10690 | |||||||||||
| Max. Speed (km/h) Max. Speed (km/h) | 85 | |||||||||||
| Engine Engine | Model Model | Isuzu 6WG1-TCG62 | ||||||||||
| Rated. Power Rating. Power | 382kw/520hp | |||||||||||
| Displacement | 15.681L | |||||||||||
| Max. Torque (Nm/rpm) Max. Torque (Nm/rpm) | 2250N.m | |||||||||||
| Number of cylinders | 6 Cylinders | |||||||||||
| Emission Standard | Euro VI, can lower the emission and working on the Euro III, IV, V. | |||||||||||
| Type Type | water-cooled, direct-injection, high-pressure common rail, supercharged and inter-cooled diesel engine | |||||||||||
| Fuel system Fuel system | Fuel type Fuel type | Diesel Diesel | ||||||||||
| CONFIGURATION CONFIGURATION | Power steering |  | ||||||||||
| Radio Radio | | |||||||||||
| ABS ABS | | |||||||||||
| Central lock | | |||||||||||
| Power window Electric window lift | | |||||||||||
| A/C air conditioning | | |||||||||||
| Size | Overall length | 10965mm | ||||||||||
| Overall width | 2540mm | |||||||||||
| Overall height | 3010mm | |||||||||||
| Front suspension Front suspension | 1370mm | |||||||||||
| Rear suspension Rear suspension | 1950mm | |||||||||||
| Front wheel distance | 2140/2140mm | |||||||||||
| Rear wheel distance Distance between the rear wheels | 1855/1855mm | |||||||||||
| Upper body | ||||||||||||
| Support system Support system | Maximum lifting capacity(kg) | 25000 | ||||||||||
| Rated lifting capacity(kg) | 13800 | |||||||||||
| Lifting mass in fully extended state(kg) | 7800 | |||||||||||
| Maximum effective support rod length(mm) | 3588 | |||||||||||
| Telescopic stroke of support rod(mm) | 1850 | |||||||||||
| Folding angle (°) Folding angle (°) | -7～95 | |||||||||||
| Number of load-bearing rod sections | 3 | |||||||||||

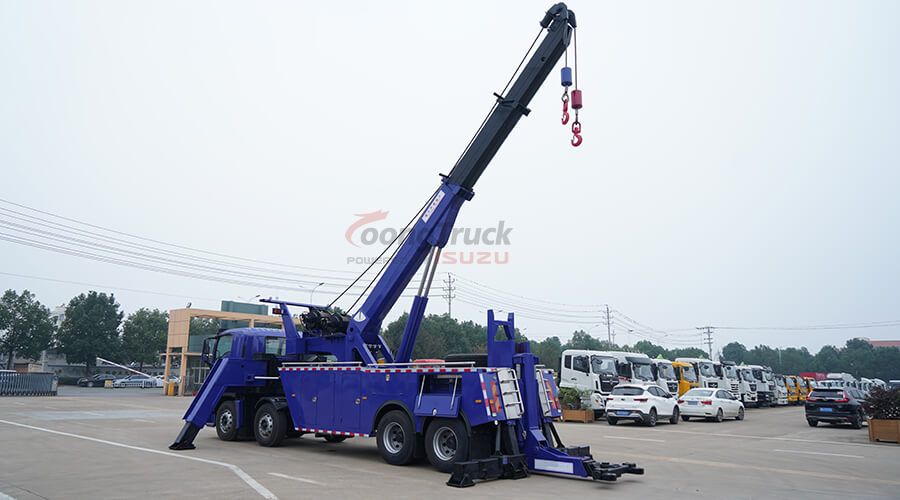

| Lifting system | Maximum lifting weight (kg) | 50000 | ||||||||||
| Telescopic stroke (mm)Telescopic stroke(mm) | 3300+3300 | |||||||||||
| Maximum lifting height (mm) | 12050 | |||||||||||
| Crane lifting angle: Crane lifting angle | 2~60° | |||||||||||
| Basic lever length(mm) Basic lever length(mm) | 5850 | |||||||||||
| Number of boom sections | 3 | |||||||||||
| Additional information Additional information | 50 ton boom: 50 ton U-shaped boom, 3 sections Support arm 25 tons: three-section design Toolbox (main body); 1 on each side; Control: controlled from both sides by wireless remote control. (Do not consider the movement of the outriggers) The oil circuit uses high-strength hydraulic steel pipes. Operation accessories (for heavy vehicles): (1 set of crossbeam; 1 set of E-type tire rack; 6 pairs of forks; 2 pairs of fork seats; 1 pair of spring forks; 2 chains Ф10x3M; 2 chains Ф12x3.8M); 1 rigid trailer towing device, standard configuration includes air source, fast power interface, 2 spiral air hoses (12.5 meters) and 1 spiral cable (12.5 meters). 50ton boom: 50ton U-shaped boom, 3 sections 25ton support arm: Three-section structure Tool box (main body); 1 on each side; Control: controlled on both sides by wireless remote control. (Do not consider the movement of the outriggers) The oil circuit uses high-strength hydraulic steel pipes. Working accessories (for heavy-duty vehicles): (1 set of cross beam; 1 set of E-type tire rack; 6 pairs of forks; 2 pairs of fork supports; 1 pair of spring forks; 2 pieces of Ф10x3M chains; 2 pieces of Ф12x3.8M chains); 1 rigid trailer towing device, the standard configuration includes air source, quick power interface, 2 spiral air hoses (12.5 meters) and 1 spiral cable (12.5 meters). | |||||||||||

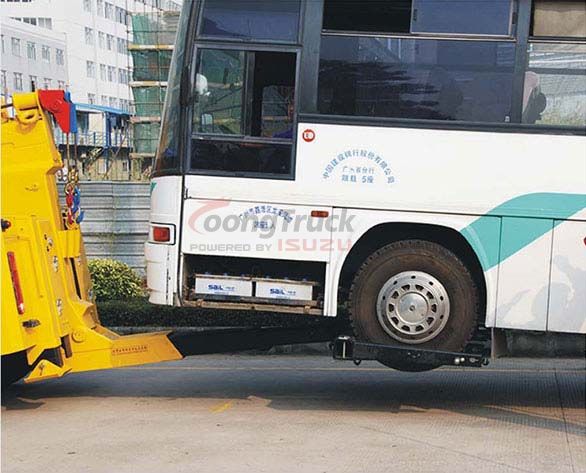

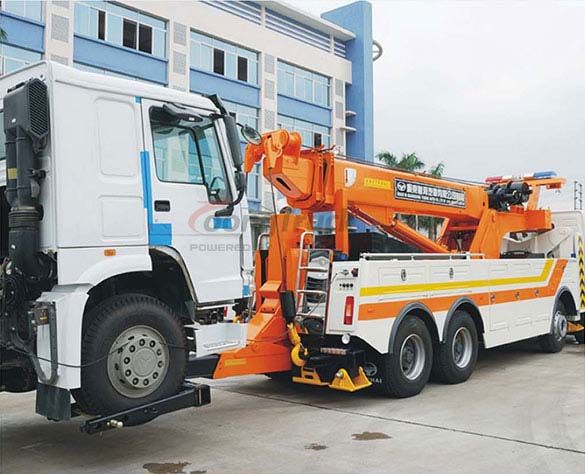

The lifting function is the most important function of the Isuzu rotary tow truck. It uses the telescopic, lifting,folding and other movements of the supporting arm to lift the damaged vehicle from the front or rear, and then tow the entire vehicle away from the scene. The brackets of Isuzu tow trucks have various structural forms.They can generally lift the axles, wheels, leaf springs, frames, etc. of the accident vehicle and are easy to assemble and disassemble.

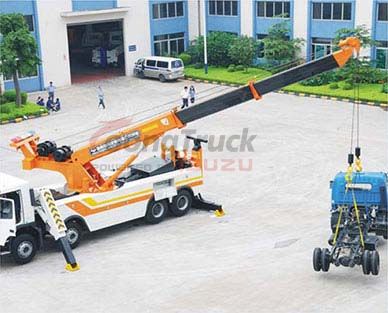

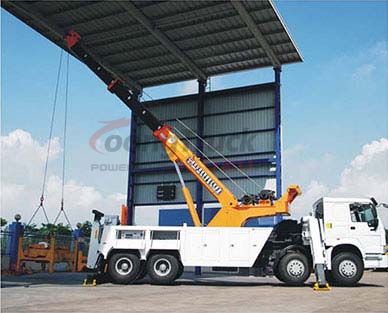

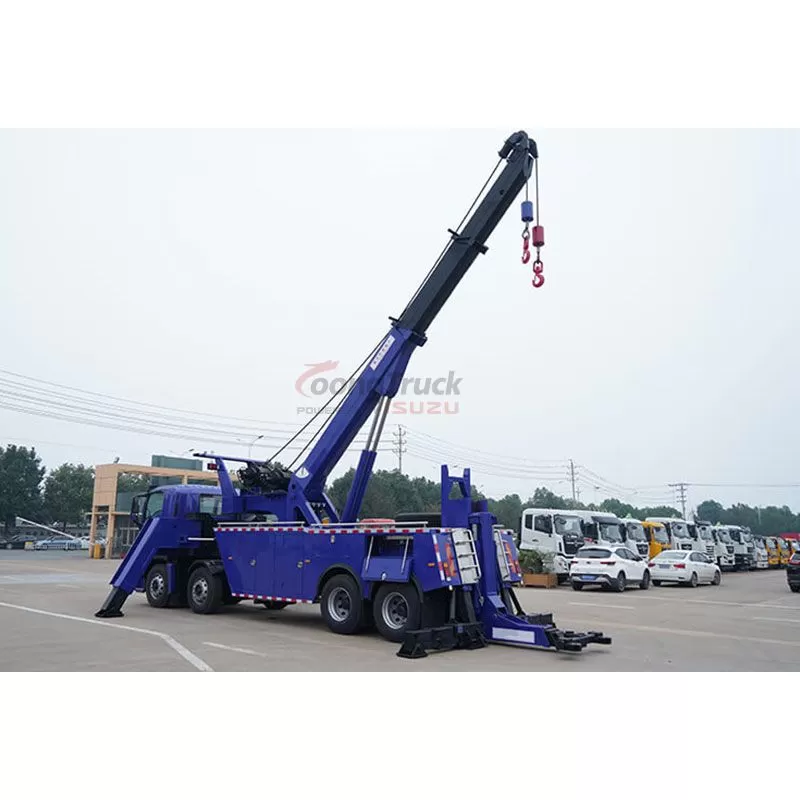

The Isuzu rotator tow truck is also equipped with a support mechanism. The support mechanism includes front legs and rear legs. Complex rescues often require lateral lifting and towing operations with a boom. The support mechanism greatly improves the overturning resistance of the tow truck when it is lifted sideways.

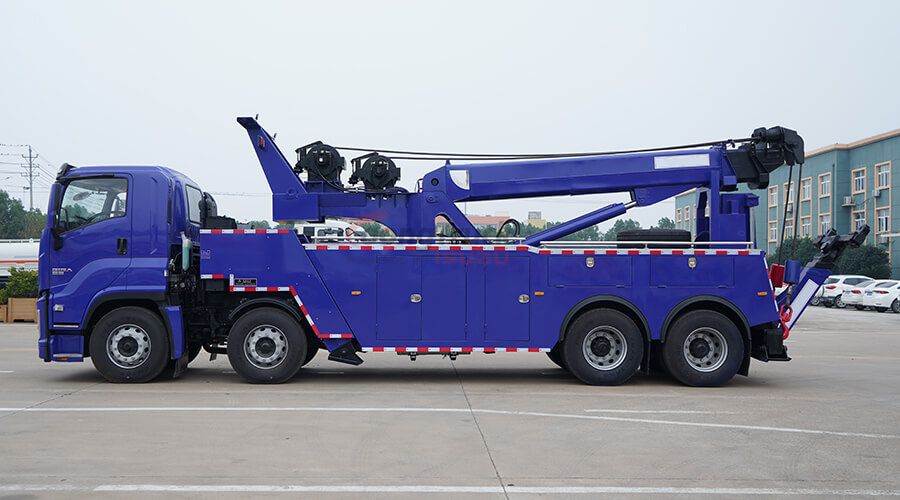

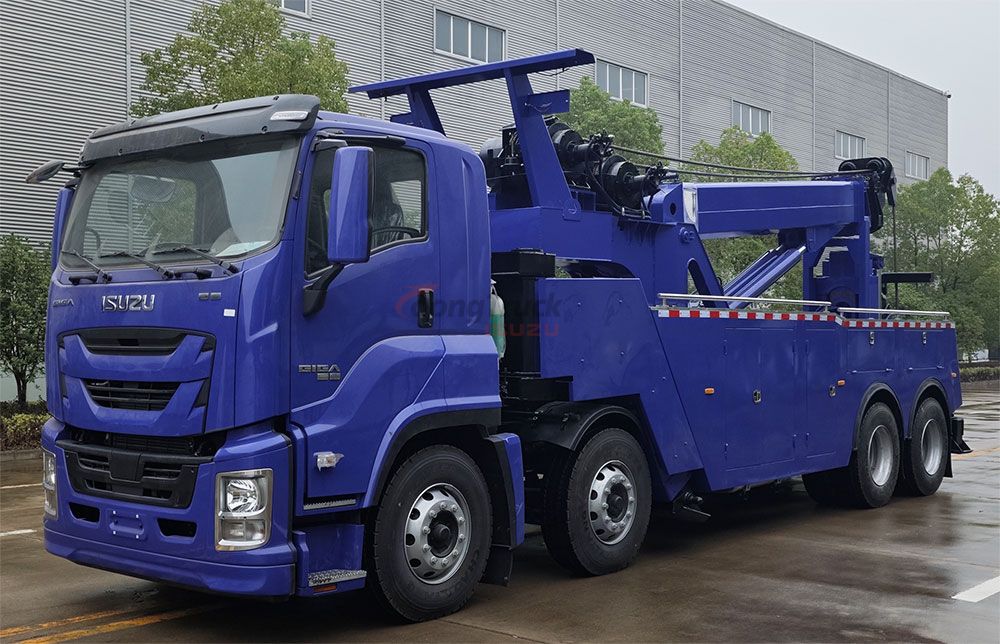

Wrecker Towing Truck Details ISUZU GIGA new 40ton crane lifting
recovery truck 30ton integrated wrecker truck
