Sewer Cleaning Truck lsuzu

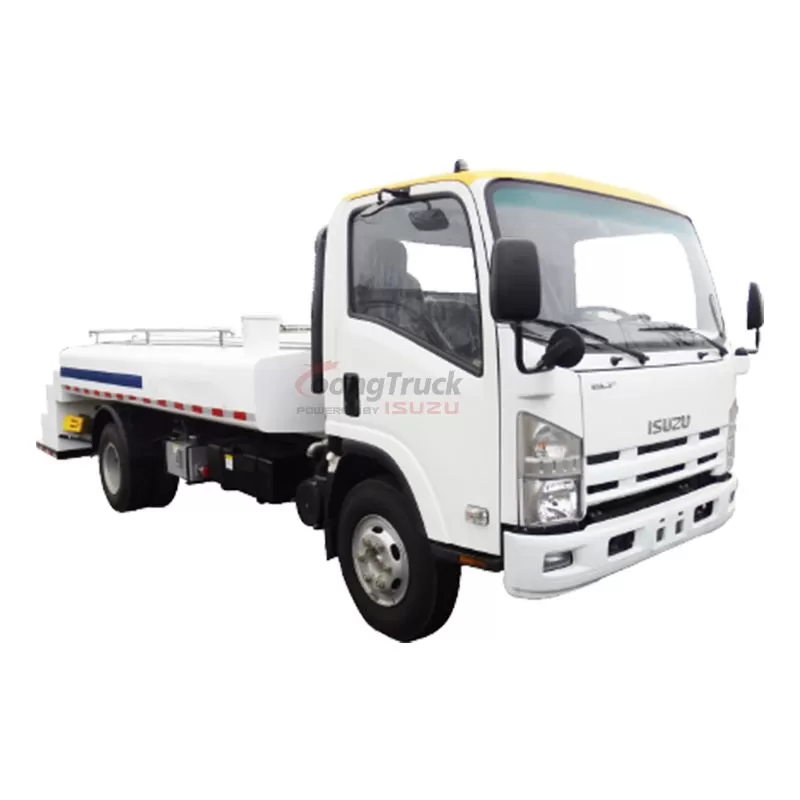

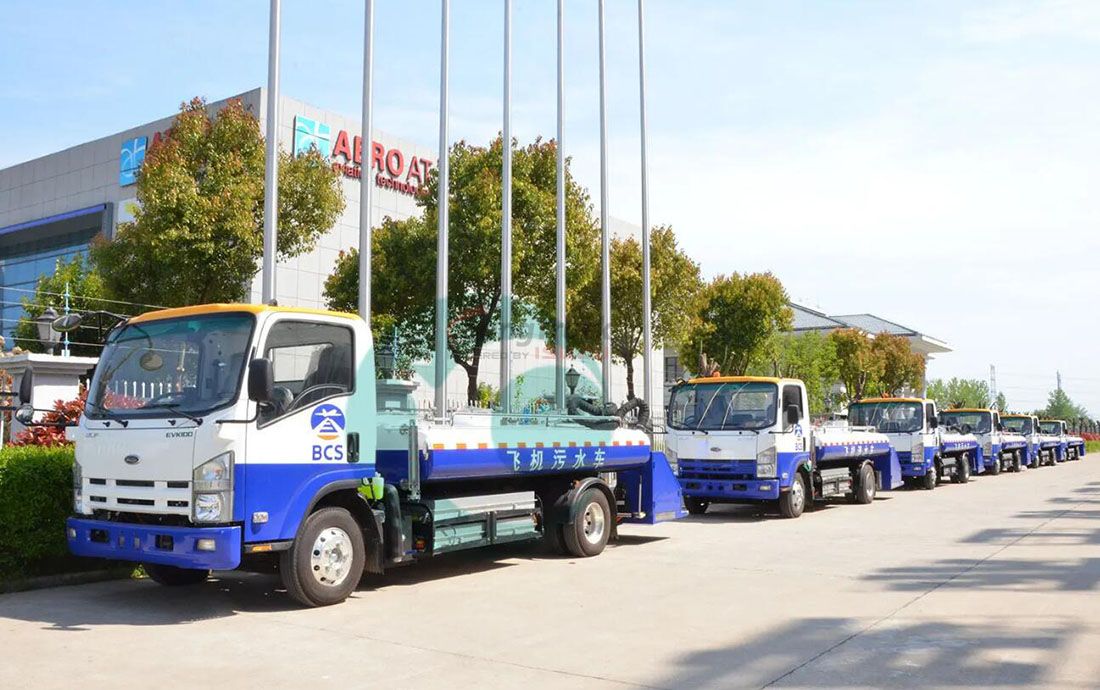

QINGLING ISUZU NPR Electric Lavatory Service Truck is designed to remove the waste from the Aircraft Lavatory and to provide clean water for flushing and refilling. This unit consists of a suitable chassis, stainless steel, waste tank, water tank and a clean water supply and waste system, can be used to service narrow body and wide body commercial aircraft. It is strongly built to withstand the airport environment, simple to operate and easy to maintain. The tank is mounted to the chassis with rubber shock absorbers to insulate it from vibration and shock during driving.
| Work capacity | 3500L |
| Engine power | 106KW |
| Engine type | Electric |
| Axle drive | 4x2 |
| Gear box | Automatic |
PRODUCT DETAILS
Composition and Maintenance of the Electric lsuzu Airport Lavatory Truck
The Electric lsuzu Airport Lavatory Truck is a specialized vehicle designed to cater to the unique needs of airport operaions. lt features a robust and durable electric powertrain that ensures quiet and emission-free operation. The truck is equipped with advanced lavatory waste management systems, capable of efficiently collecting and disposing of waste from aircraft lavatories
The vehicle's composiion includes a spacious and erconomically desianed cab for the driver, ofering excellent visiblity and comfort during operations.Behind the cab, the truck carries a large holding tankfor waste storage, along with the necessary pumps and hoses for waste extraction. the electnc drve system is powered by high-capacity batenies, ensumng a suicient range for dall operatons without the need for frequent recharging
Maintenance of the Electic lsuzu Airpor Lavatory Truck is crucial for ensuring its relability and longevity. Regular inspections and servicing are reauired to check the battery health, drive system,. and waste management systems. Preventive maintenance practices, such as reoular cleaning and lubrication, are essential to prevent costly repalrs and downtime. Addilionally, moldavian Airines has parnered with experienced service providers to oer comorehensive maintenance and repair sevices, ensuuino the tuck remains in ootima condiion throuohout its lifespan.
Main performance indicators:
| Serial | name | parameter | name | Model number |
| 1 | Vehicle size (mm) | 6965*2100*2250 | chassis | |
| 2 | Lifting height range of working platform (mm) | 400~3000 | Chassis vehicle controller | VCU02 |
| 3 | Clean water tank volume L | 1600 | Driving motor | YTD060W23 |
| 4 | Sewage tank volume L | 3280 | Drive motor controller | KTZ50X35S |
| 5 | Circulation tank volume L | 200 | Energy storage assembly | L173TB2 |
| 6 | Water supply pressure MPA | 0.25~0.35 | Energy storage unit | CB220 |
| 7 | Clean water flow L/min | 220 | Steering shaft | F033 |
| 8 | Wheelbase (mm) | 3815 | Drive shaft | R048 |
| 9 | Wheel base front/rear (mm) | 1685/1525 | tyre | 7.00R16 14PR |
| 10 | Channel circle outer circle diameter (mm) | 16500 | Tank body | JSTY5060GQSE-0200000-01 |
| 11 | Departure Angle (°) | 10 | Motor pump controller | HCDMC005VT3 |
| 12 | Approach Angle (°) | 21 | Water pump | DL12-60 |
| 13 | Longitudinal passage Angle (°) | 15 | Clear water connection for sewage truck | A-5 |
| 14 | Maximum speed Km/h | 80 | Sewage joint | A-7 |
| 15 | Total vehicle mass (kg) | 4750 | Sewage pipe | A-9 |
| 16 | Minimum ground clearance (mm) | 185 | Lift cylinder | GTWY350-2.8 |
| 17 | Equipped with vacuum pump, vacuum bar | 0.2 | Power unit | DLDY-1.0/0.8-3 |
| 18 | Applicable temperature ℃ | -35-65 | Monitoring system | D5804 |
| 19 | Rated power of driving motor KW/r/min | 60/1850 | 360° panoramic view system | YG-SVMS-3D(I.MX6) |
| 20 | Battery capacity kwh | 106.95 | Electromagnetic main power switch | DK238 12V |
| 21 | Range km | 312 | relay | RH4B-UL |
| 22 | Assembly voltage V | 618.24 | Toggle switch | 1NT-3 |
| 23 | Total energy stored Kwh | 106.95 | Relay socket | DTF14A |
| 24 | species | Ningde era lithium iron phosphate | sensor | UGT521 |
| 25 | Water tank cleaning material/thickness mm | 316L/5 | Alarm light | FL4871 |
| 26 | Minimum stable speed Km/h | 0.8 | Emergency switch | YW1B-V4E11R |
| 27 | Touch switch | CWLNJ | ||
| 28 | Indicator light | AL6M | ||
| 29 | Travel switch | XCMD2145L1 | ||
| 30 | flowmeter | LWGY |

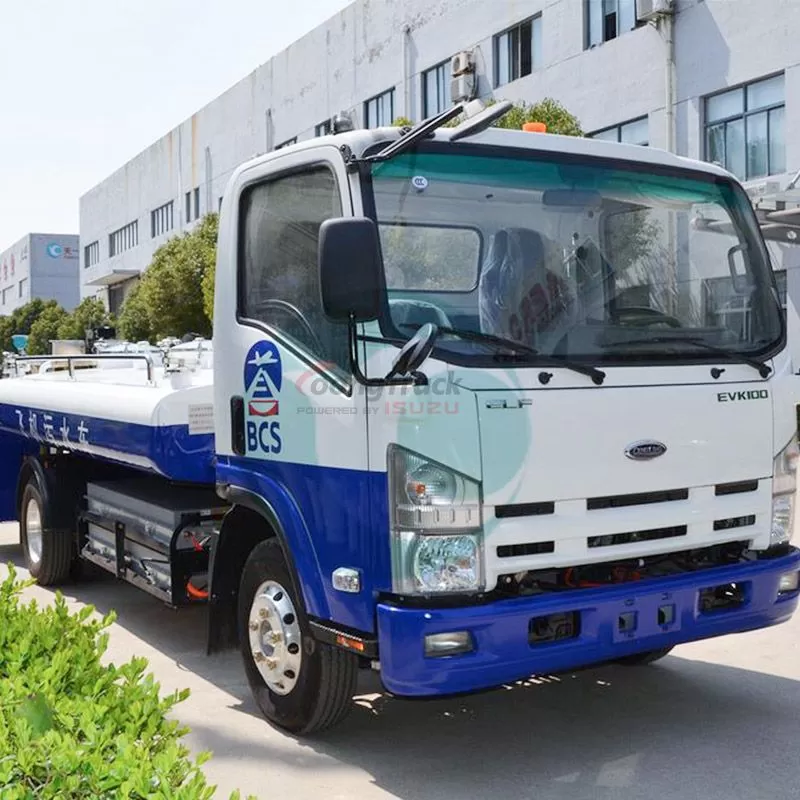

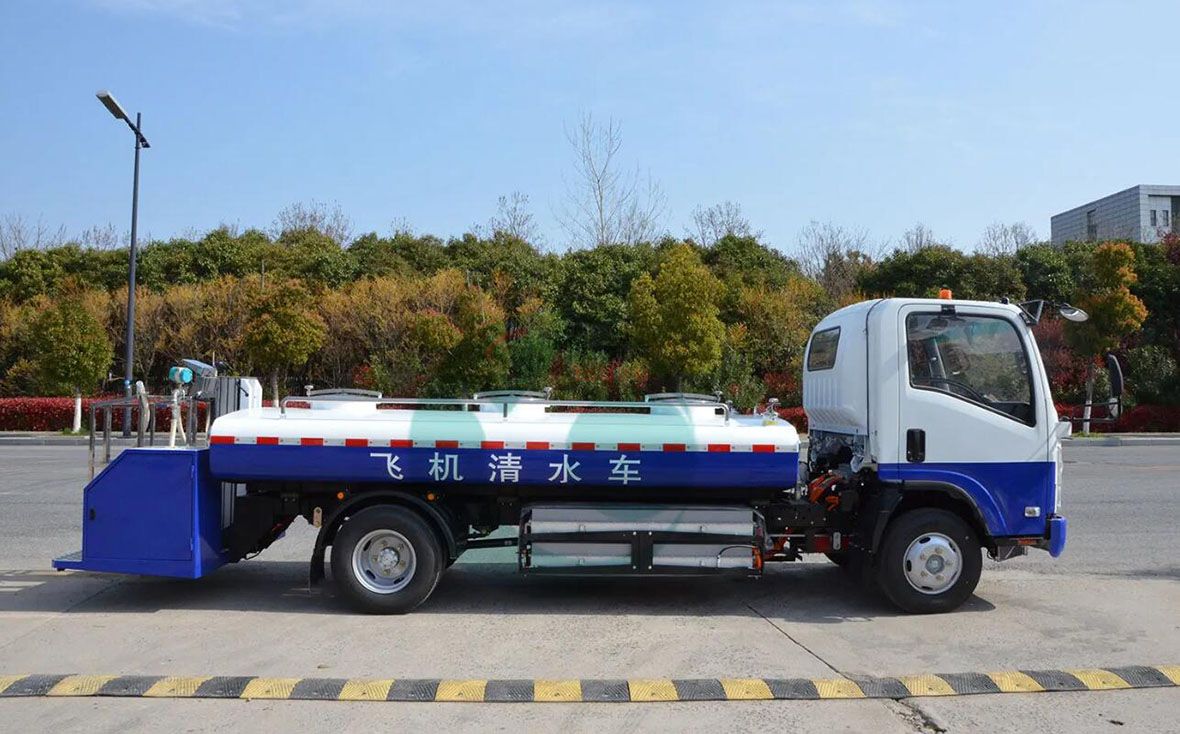

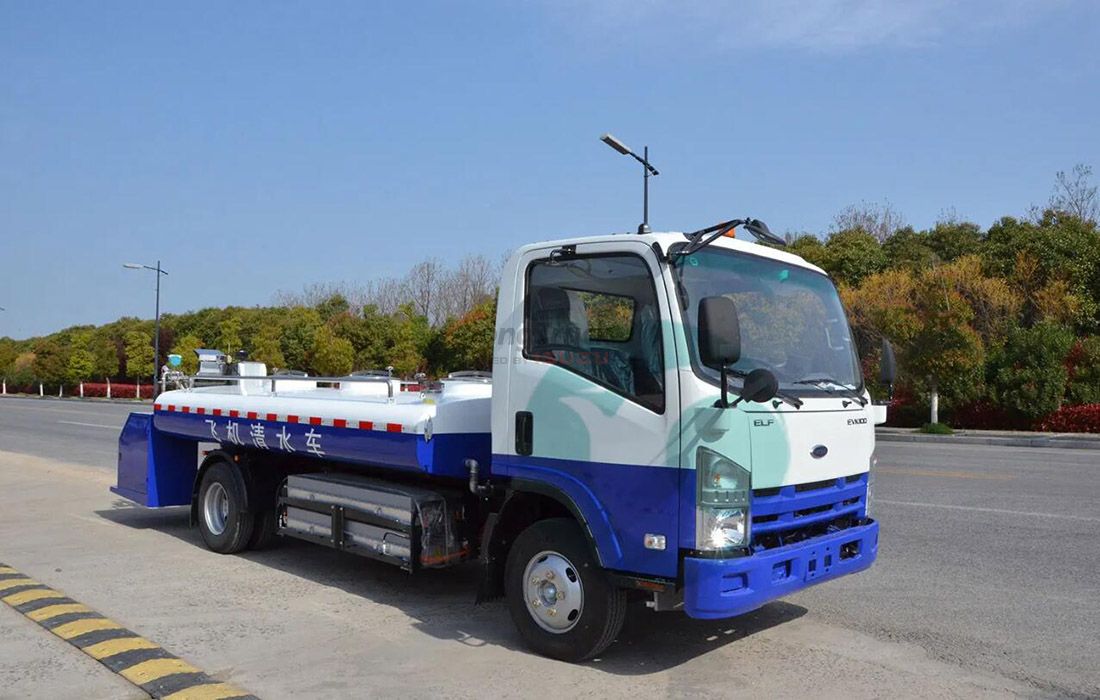

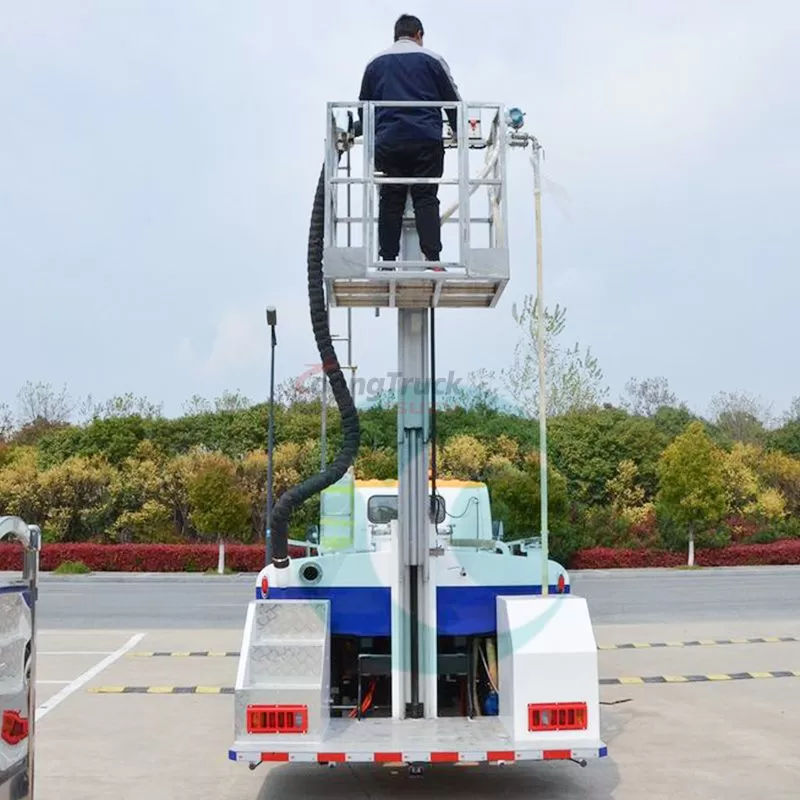

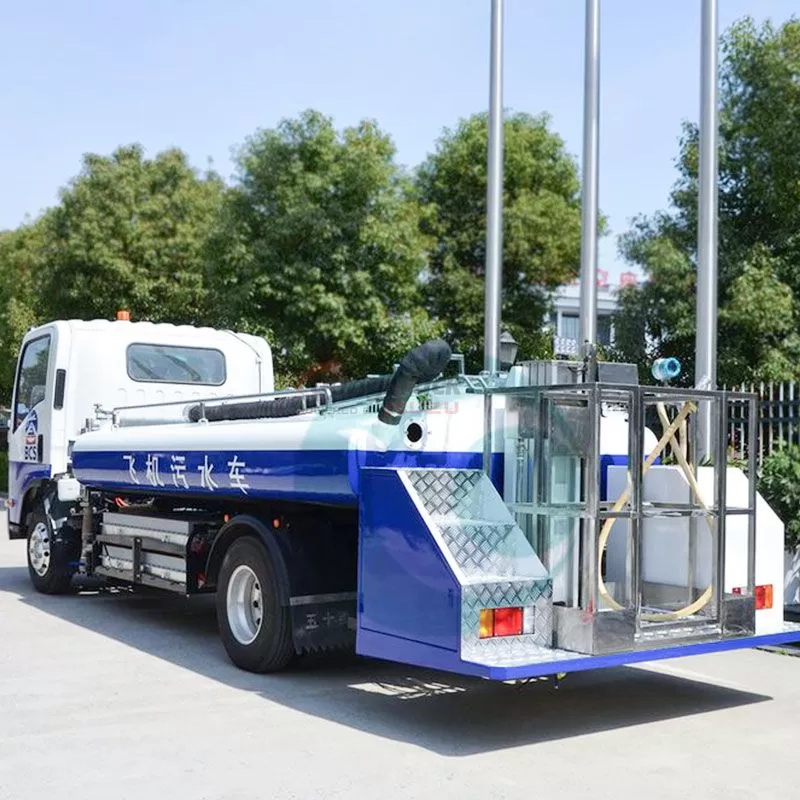

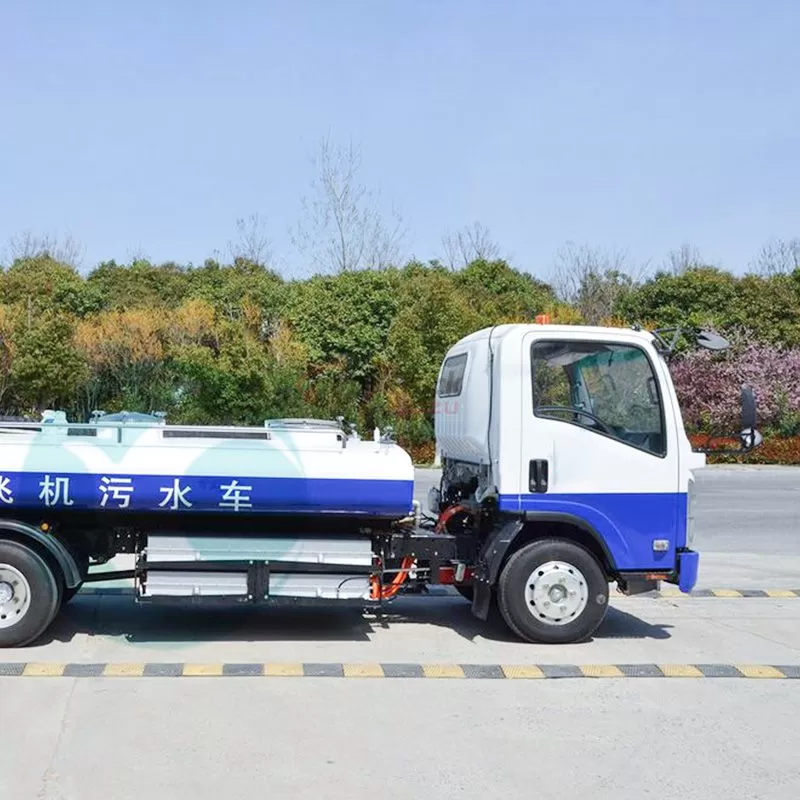

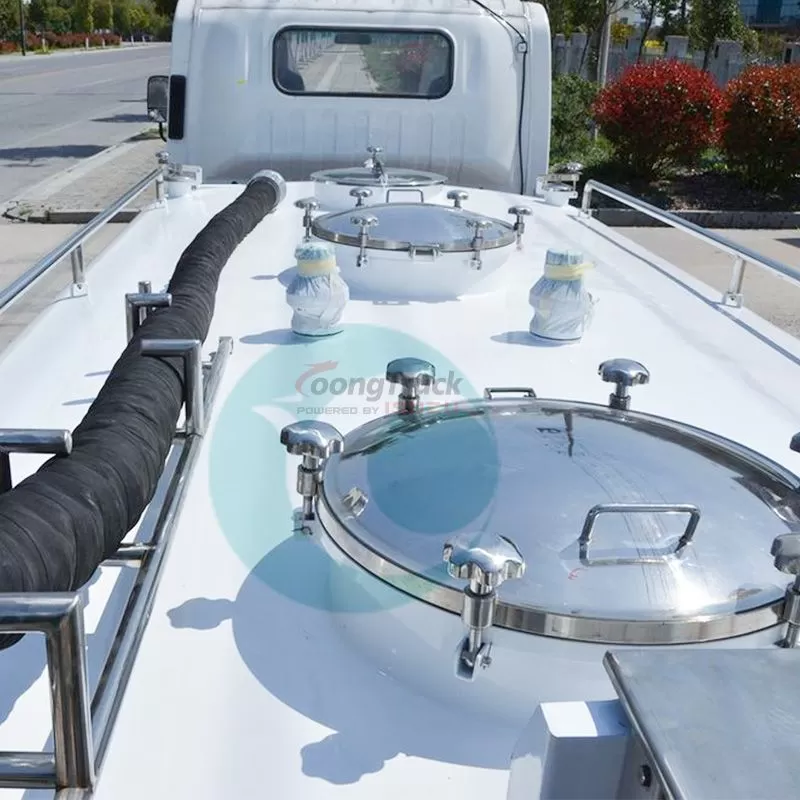

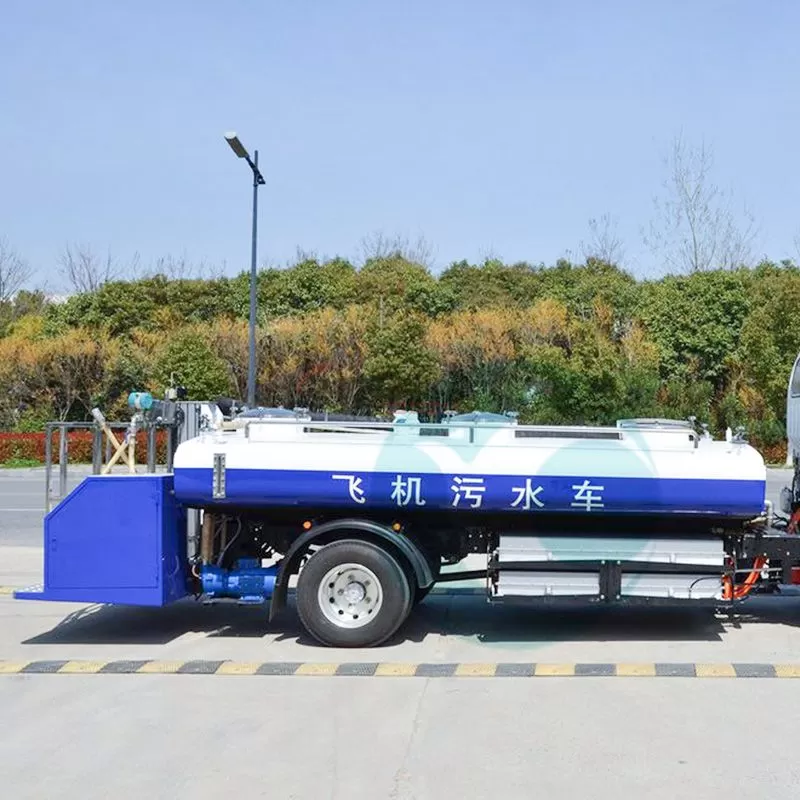

Electric Isuzu Lavatory service Truck is a new aircraft sewage collection and water injection special airport vehicle modified by Qingling chassis. It is designed as a rear lifting work platform, a large capacity cleaning and sewage tank in the middle, a vacuum pump sewage suction system and a water pump water supply system. The vacuum pump sewage suction system can provide sewage suction service efficiently and conveniently for the aircraft sewage tank, and the water pump water supply system can provide cleaning function for the aircraft sewage tank and sewage tank of the sewage truck. The chassis and cab of this product are flat-head, single-row seat, two-door type, with 3 occupants. The driving type is 4×2, the volume of the clear water tank is 1600L, and the volume of the sewage tank is 3480L. The effective volume of the circulating water tank is 200L, and the water supply flow is 220L/min. Suction sewage flow rate is 600L/min.
