Street Cleaning Truck lsuzu

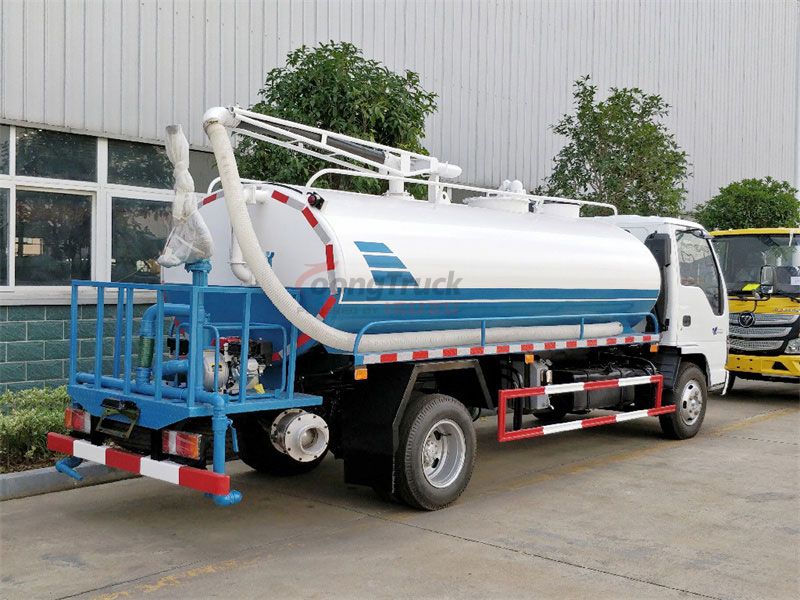

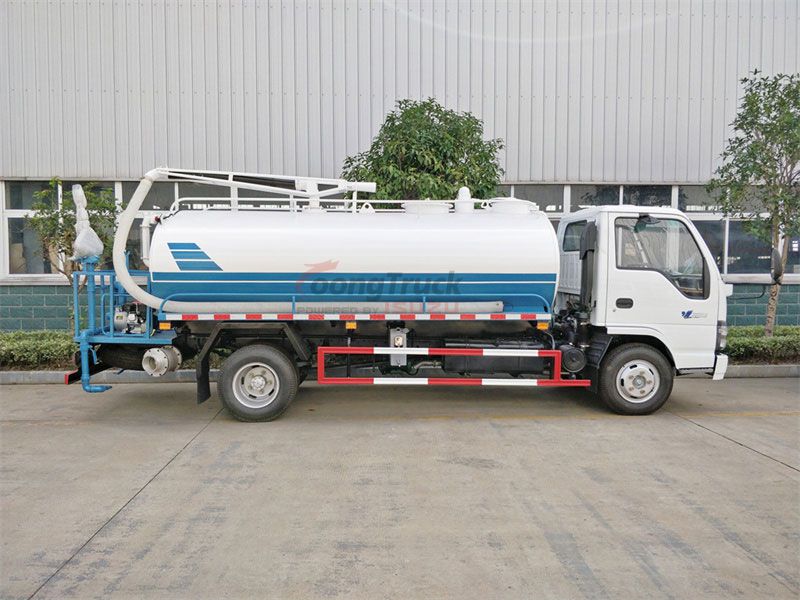

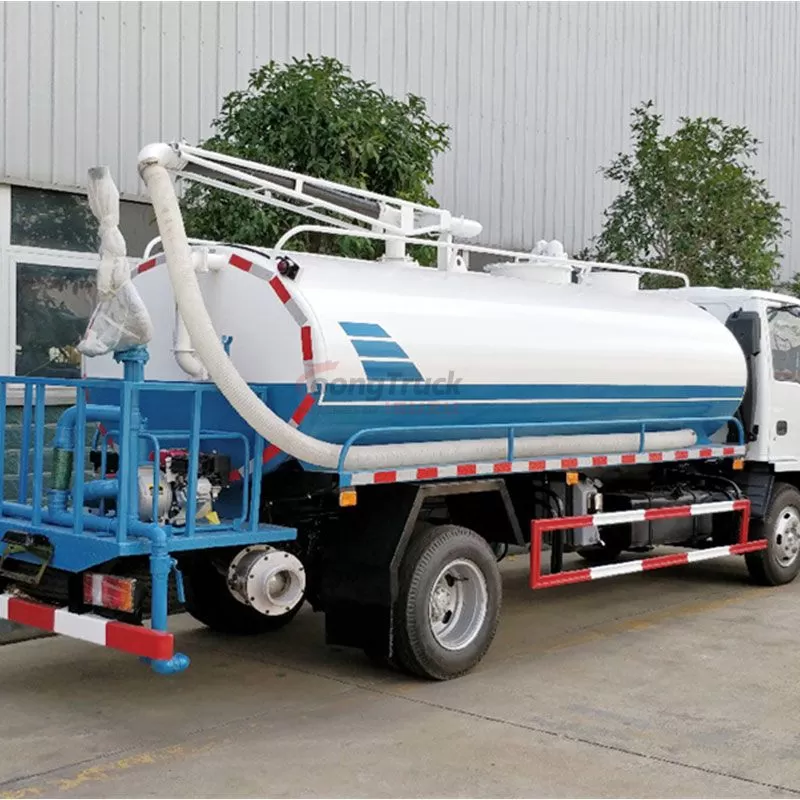

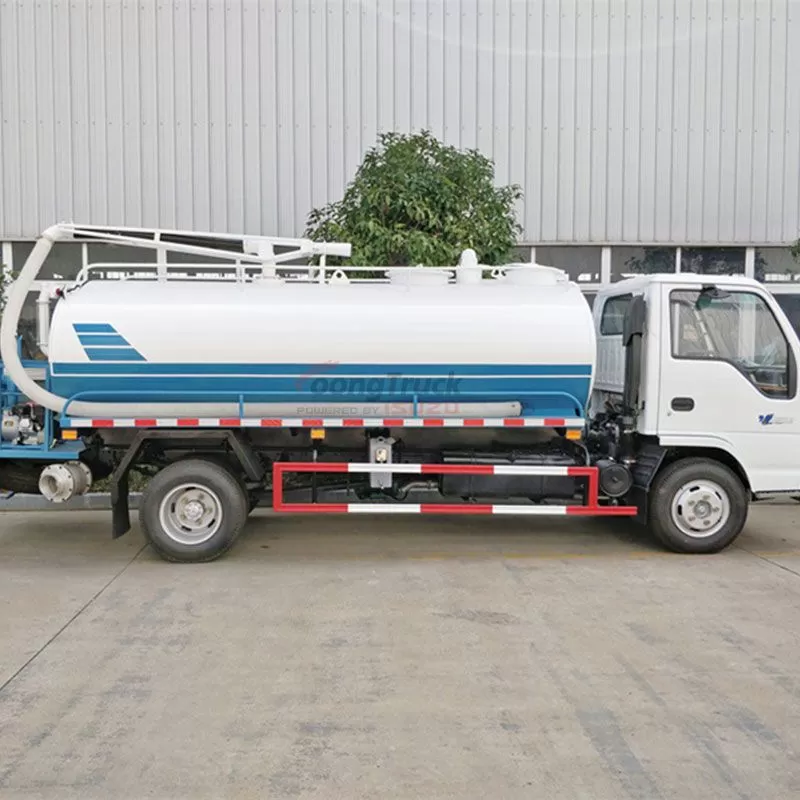

Isuzu NKR sewage cleaning truck is a cleaning equipment with excellent performance and comprehensive functions, suitable for various sewage suction operation scenarios in urban and rural areas. Whether it is in terms of power performance, load capacity or fecal suction efficiency, the Isuzu 600P sewage cleaning truck performs well and is the best choice for the cleaning industry.
| Work capacity: | 5000 Liters |
| Engine power: | 120 HP |
| Engine type: | 4KH1CN5HS |
| Axle drive: | 4×2 |
| Gear box: | MSB 5-speed manual |
| Remarks: | Mini sewage tank truck |
PRODUCT DETAILS
Applications:
Isuzu NKR sewage cleaning truck(also called isuzu NKR sewage tanker truck, ISUZU mini 50000L vacuum tank truck, ISUZU 6 wheel vacuum suction truck, ISUZU NKR sewer sucker, ISUZU hydro-vac, China vacuum truck manufacturer) is used for suctioning and transporting various types of liquids, sludge, or solids. The vacuum system on the truck creates negative pressure inside the tank, allowing it to suck up and store materials such as sewage, wastewater, grease, septic waste, industrial byproducts, and hazardous or non-hazardous materials.environment and sanitation field.

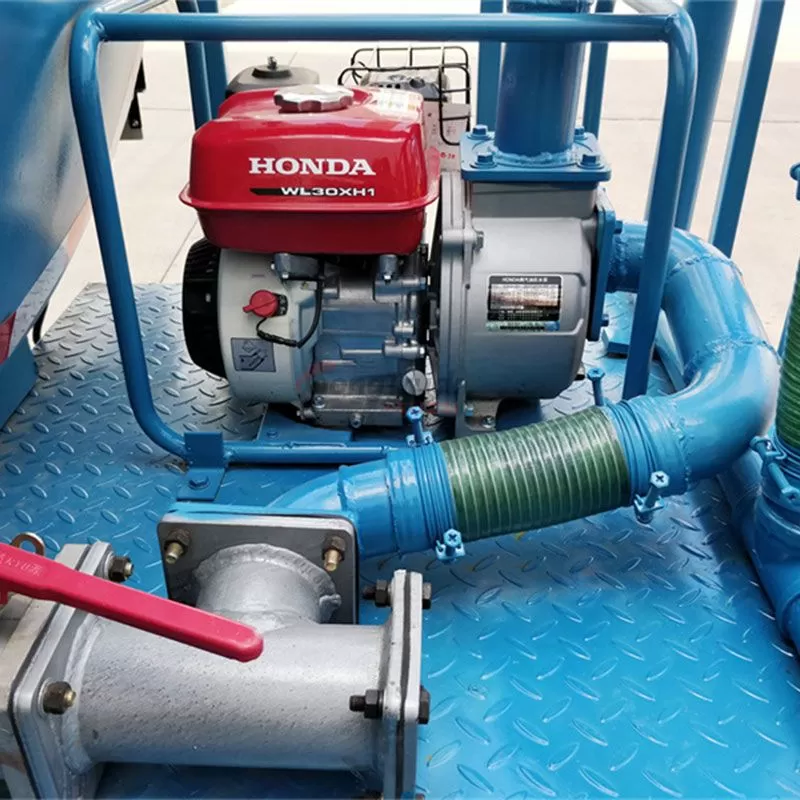

ISUZU Vacuum truck which use Italy MORO or BP vacuum pump, for 5CBM or more recommend Double Pump for efficiently working.
The septic pump truck can be equipped with cabin Pneumatic Control for easy operation.
Key Features:
---- ISUZU chassis, perfect performance
---- ISUZU technology engine option, super powerful, no overhaul within 100,000 km.
---- Vacuum Tanker body capacity from 3 to 20 Cublic Meter.
---- Easy operation and easy maintenance.
---- Various types of refuse container lifter are available.

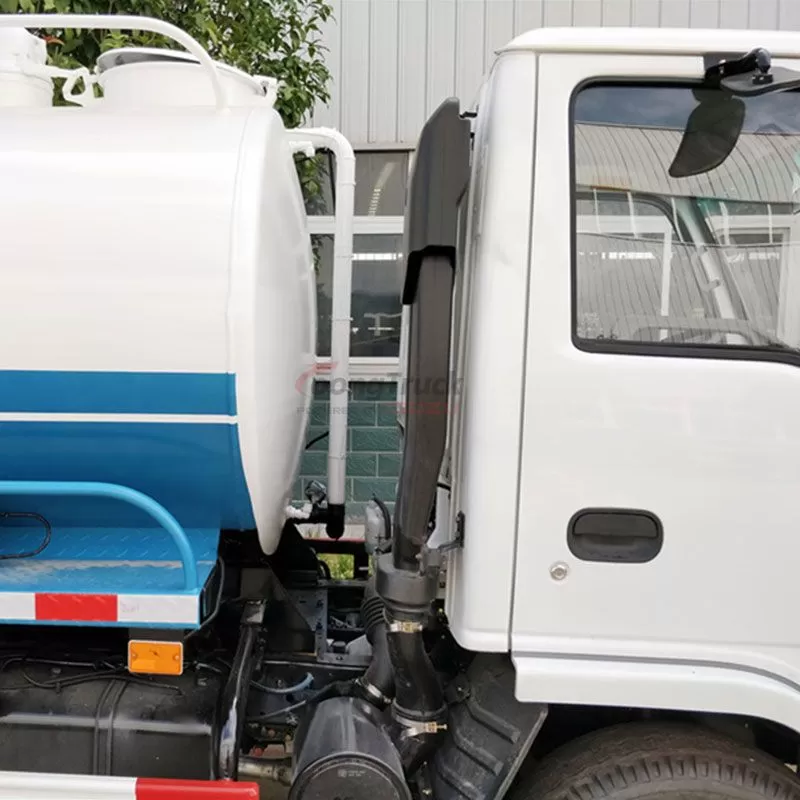

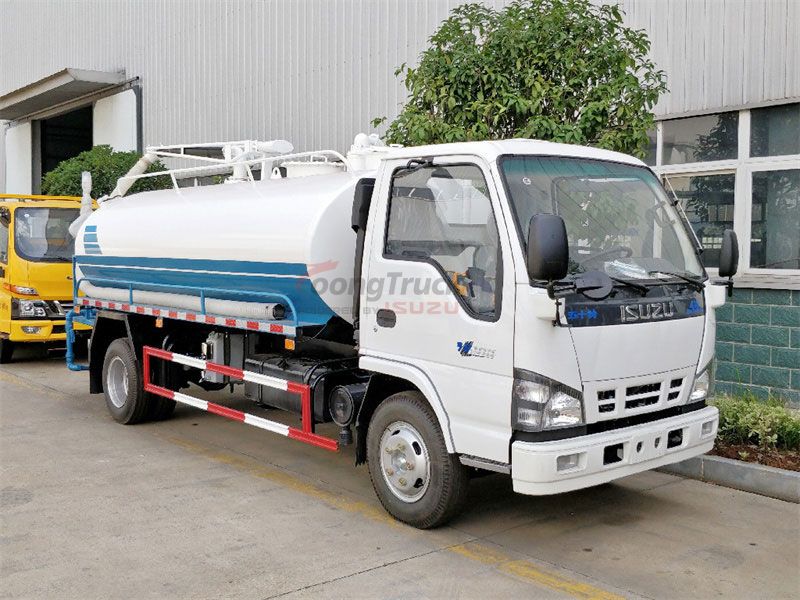

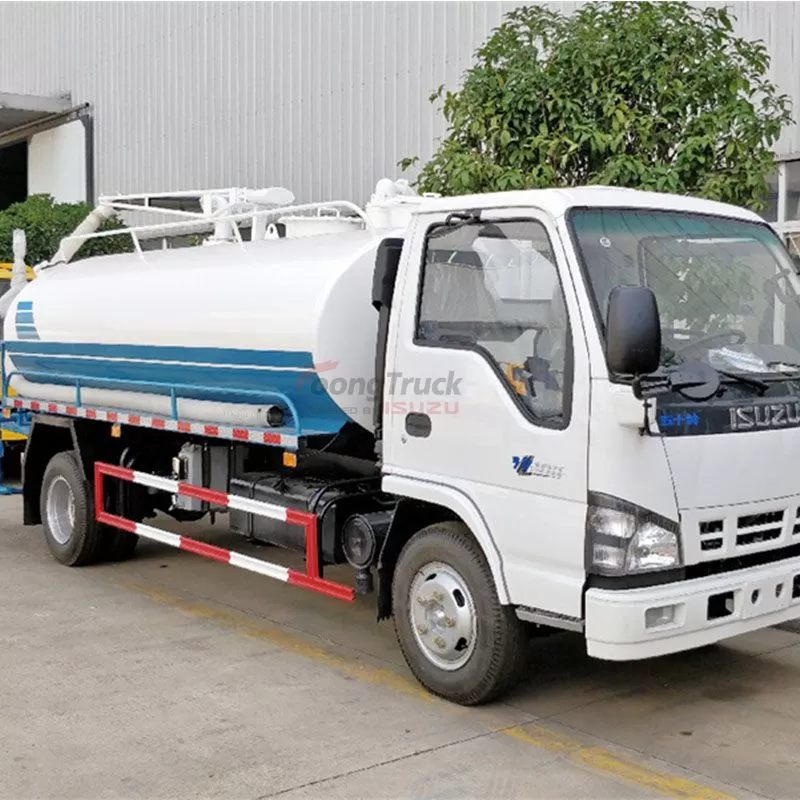

The Isuzu NKR sewage cleaning truck is an efficient, durable and feature-rich cleaning device. The Isuzu 5000L sewage cleaning truck adopts a sturdy semi-high-roof cab design, which is spacious and airconditioned, providing a good working environment for the driver. The Isuzu 5000L sewage tank truck has a moderate body size and a reasonable wheelbase, which not only ensures driving stability, but also facilitates flexible shuttle in urban and rural roads. The Isuzu 5000L sewage suction truck has a strong maximum load capacity of 5,000 kilograms and a balanced load on the front and rear axles to ensure stable operation under various road conditions.
Isuzu NKR sewage cleaning truck is equipped with the powerful ISUZU 4KH1CN5HS engine, which has excellent power performance and fuel economy. The emission standard reaches the Euro V standard and the environmental performance is excellent. The manual five-speed transmission is easy to operate, and the hydraulic power steering system makes driving even easier. The Isuzu 5000L sewage cleaning truck is equipped with 700R16 tires, which are durable and have strong road grip, ensuring safe driving in various road conditions.

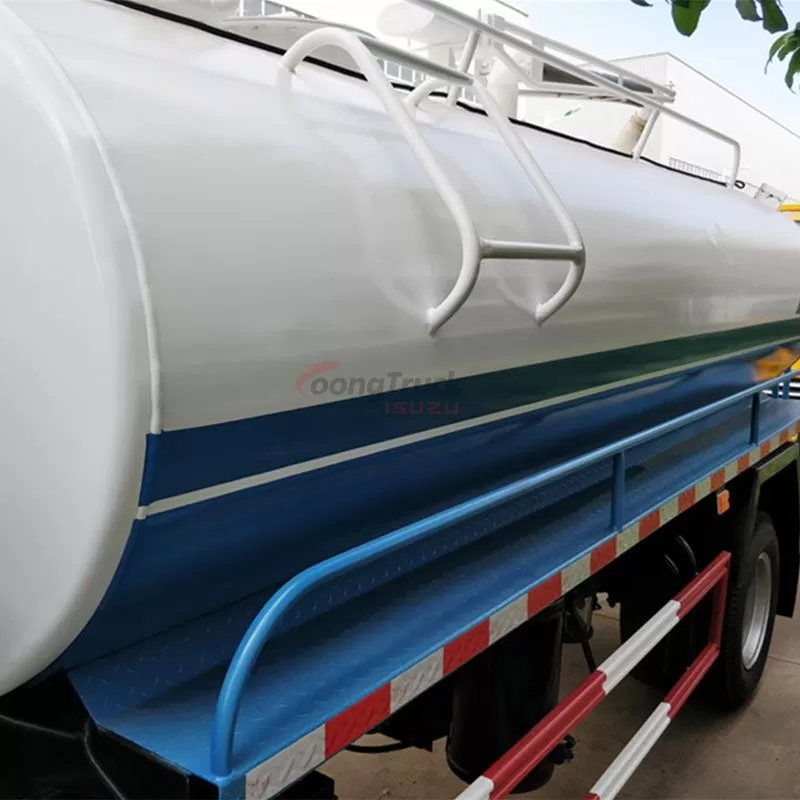

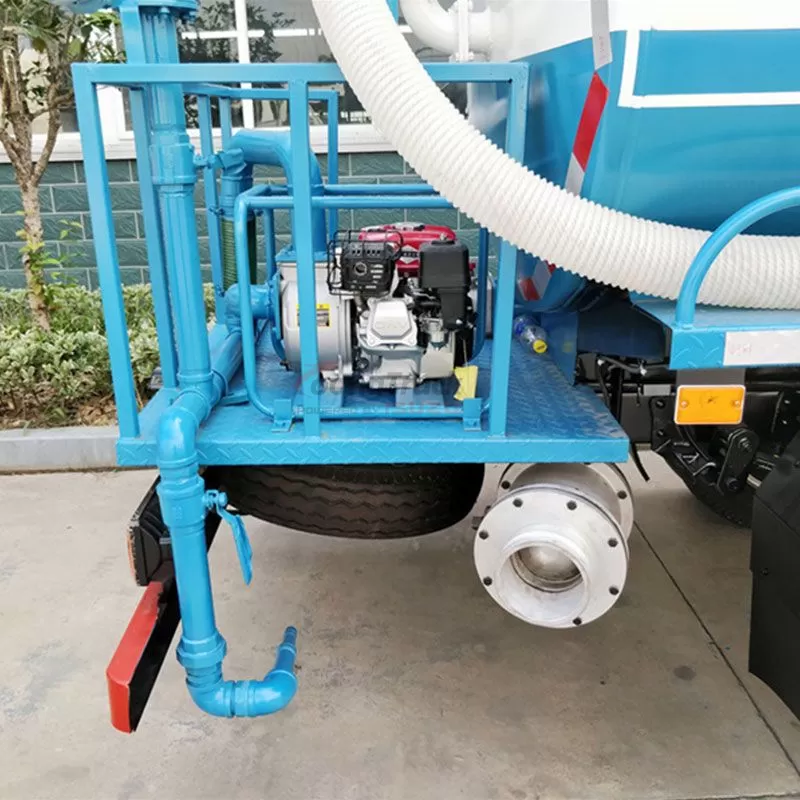

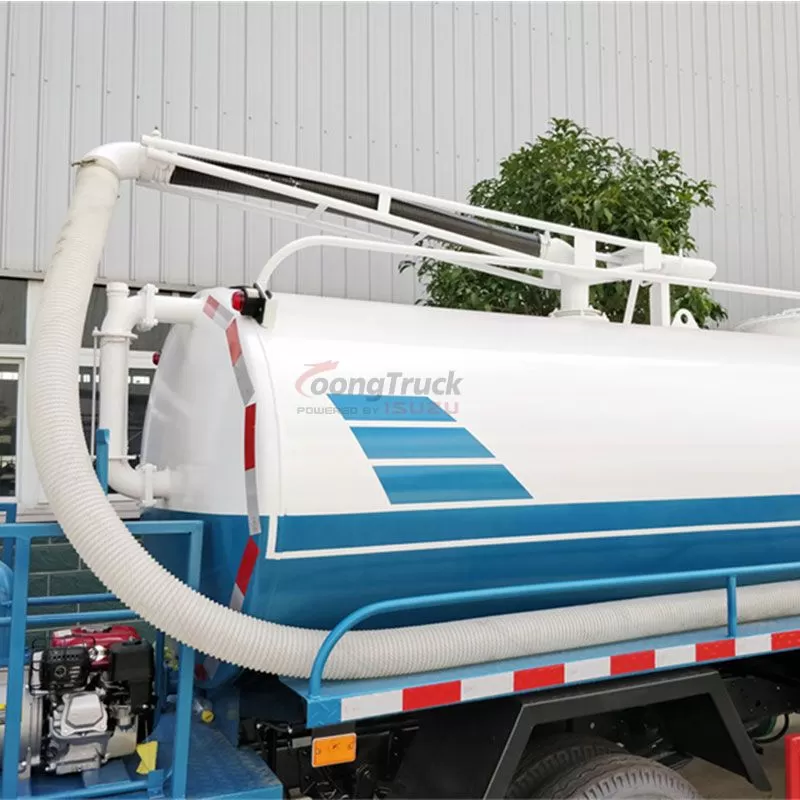

Isuzu 5000L sewage tank truck is equipped with a 5000-liter vacuum sewage tank, which can be made of carbon steel, stainless steel or aluminum alloy to meet the needs of different users. The inside of the tank is designed with an inspection window to facilitate observation of the situation inside the tank. At the same time, the Isuzu NKR sewage tank truck is equipped with an efficient vacuum pump and a powerful suction pipe, which can easily handle various complex suction operations. The fecal suction pipe of Isuzu NKR sewage tank truck can rotate 360 degrees, the length reaches 8 meters, the vertical suction distance exceeds 7 meters, and the horizontal distance reaches 20-30 meters. When the tank is full, the suction time does not exceed 5 minutes, and the emptying time does not exceed 4 minutes, which greatly improves work efficiency
Specification Data
| Isuzu NKR sewage cleaning truck | ||
| Vehicle Main Dimensions | Overall dimensions | 6650×2350×2550 |
| Wheel base (mm) | 3815 | |
| Weight in (KGS) | Tare Weight | 5800 |
| Recommend payload | 5000 | |
| Front axles loading capacity | 2500KG | |
| Rear axles loading capacity | 4800KG | |
| Max. driving speed(km/h) | ||
| Engine | Brand | ISUZU |
| Model | 4KH1CN5HS | |
| Type | 4 stroke,straight 4-cylinder in line,Turbocharge with inter-cooling,diesel engine | |
| Engine dispacement(L) | Engine displacement: 5.9L | |
| Emission standard | Euro 5 | |
| Gearbox | Manual operation, 5 speed forward and 1 reverse gear | |
| Steering | Hydraulic steering with power assistance | |
| Tire | 700R16 tyre 6+1 pcs (including one spare tire) | |
| Vacuum sewer suction Tank specification | 5000 liters vacuum sewer tank,5m3 sewage suction tank | |
| Tank materia:Carbon steel Q235.(Carbon steel,Stainless steel or Aluminum alloy are optional) | ||
| Equipped with :Sewage suction pipe | ||
| Equipped with: High powerful vacuum pump(Italy Vacuum pump is optional) | ||
| Vacuum pump vertical suction height: More than 7m | ||
| Equipped with: Inspection window to inspect tank inner situation | ||
| Equipped with: Gravition valve,vacuum anti-overflow valve,hydraulic rear door | ||
| Tank Volume(m³) | 5000L | |
| Tank Size(mm) | 3850×1400×800 | |
| Tank Material | Steel High Quality Carbon Steel | |
| Tank Thickness(mm) | 4-6 | |
| Rotation Angle of Fecal Suction Tube(°) | 360 | |
| Length of Fecal Suction Pipe(m) | 8 | |
| Vertical Suction Range (m) | ≥6 | |
| Horizontal Distance(m) | 20-30 | |
| Full Tank Suction Time (min) | ≤5 | |
| Full tank Emptying Time(min) | ≤4 | |
The Isuzu NKR sewage tank truck excels in performance, fully demonstrating its excellence as a professional cleaning equipment.
The Isuzu NKR sewage tank truck is equipped with a powerful ISUZU 4KH1CN5HS engine with excellent power performance, ensuring that the Isuzu 5000L sewage tank truck can provide stable and efficient sewage suction operations in various working scenarios. This engine uses four-stroke, in-line four-cylinder, turbocharging and intercooling technology, which enables the engine to provide strong power while also having good fuel economy and environmental protection performance.
The chassis configuration of the Isuzu NKR sewage tank truck is also quite excellent. Isuzu NKR chassis, white single-row cab, Isuzu MSB five-speed gearbox, ABS and other configurations make the Isuzu NKR sewage tank truck more stable and safer during driving. This chassis configuration not only ensures the vehicle's load-carrying capacity, but also provides excellent handling and comfort.
Isuzu NKR sewage tank truck shows its excellent performance. Isuzu NKR sewage tank truck is equipped with a 5000-liter vacuum suction tank, which can be made of carbon steel, stainless steel or aluminum alloy to meet the needs of different users. At the same time, the efficient vacuum pump and powerful fecal suction pipe can easily handle various complex fecal suction operations. The fecal suction pipe can rotate 360 degrees, the length reaches 8 meters, the vertical suction distance exceeds 7 meters, and the horizontal distance reaches 20-30 meters. When the tank is full, the suction time does not exceed 5 minutes, and the emptying time does not exceed 4 minutes, which greatly improves work efficiency.
Isuzu NKR sewage tank truck also has an excellent anti-overflow device, which can effectively prevent feces and sewage from being filled and backflowing into the vacuum pump system, thus protecting the equipment from damage. At the same time, Isuzu NKR sewage tank truck is also equipped with optional configurations such as solid-liquid separator, anti-corrosion treatment in the tank, and water sprinkling function, which further improves the effect and efficiency of its cleaning operations.
