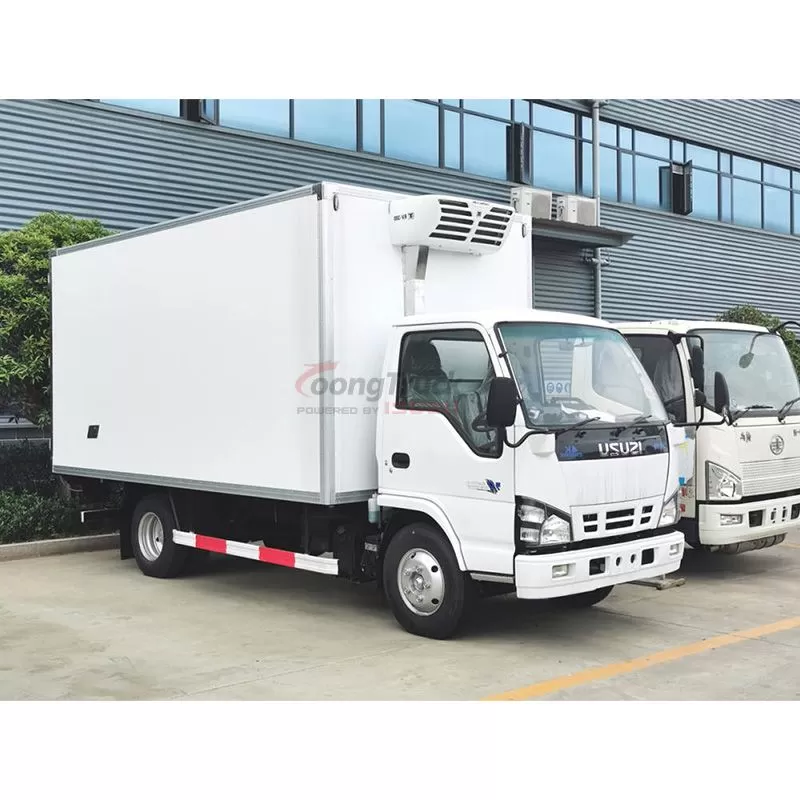

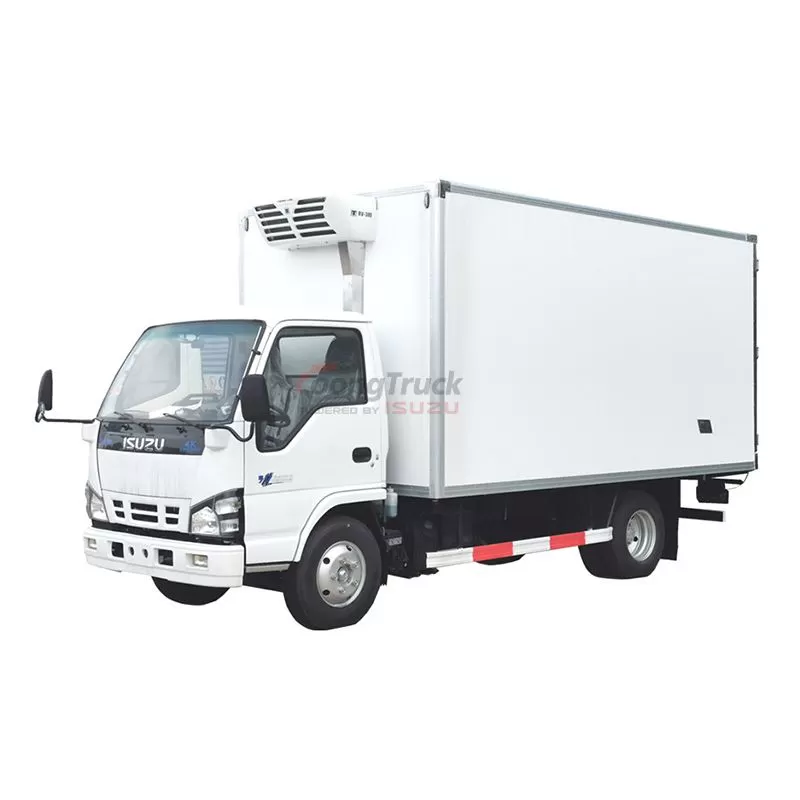

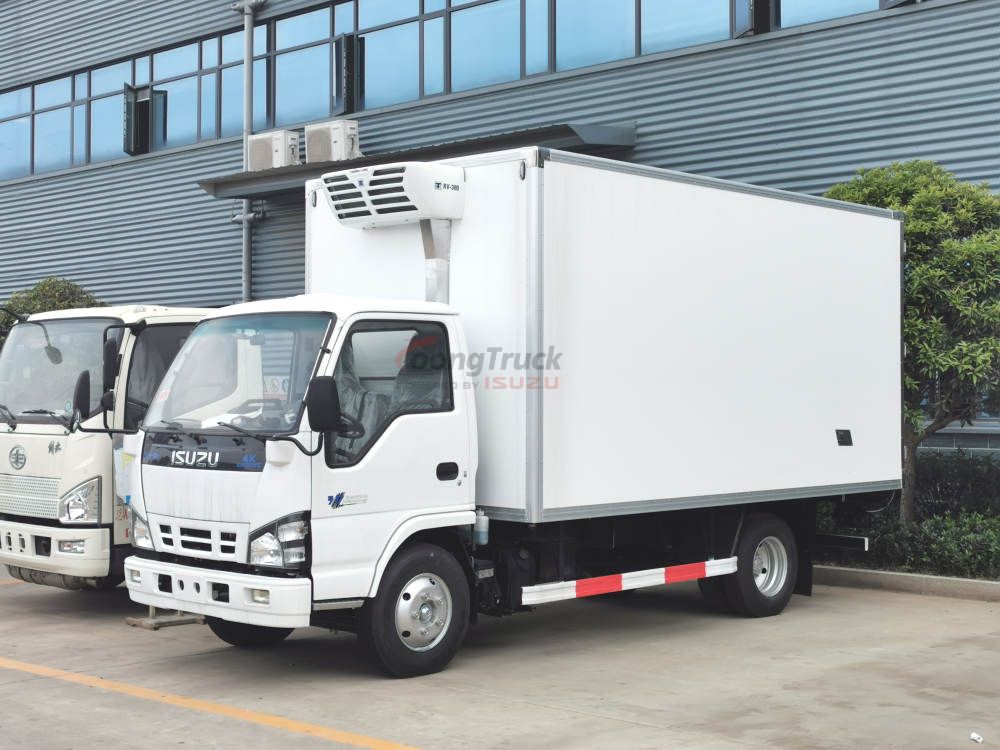

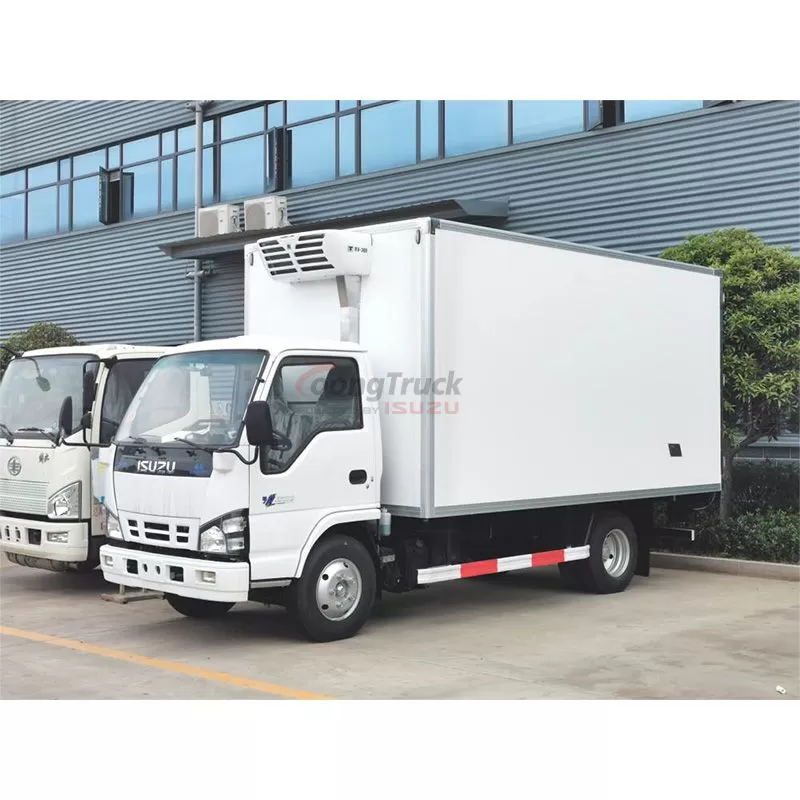

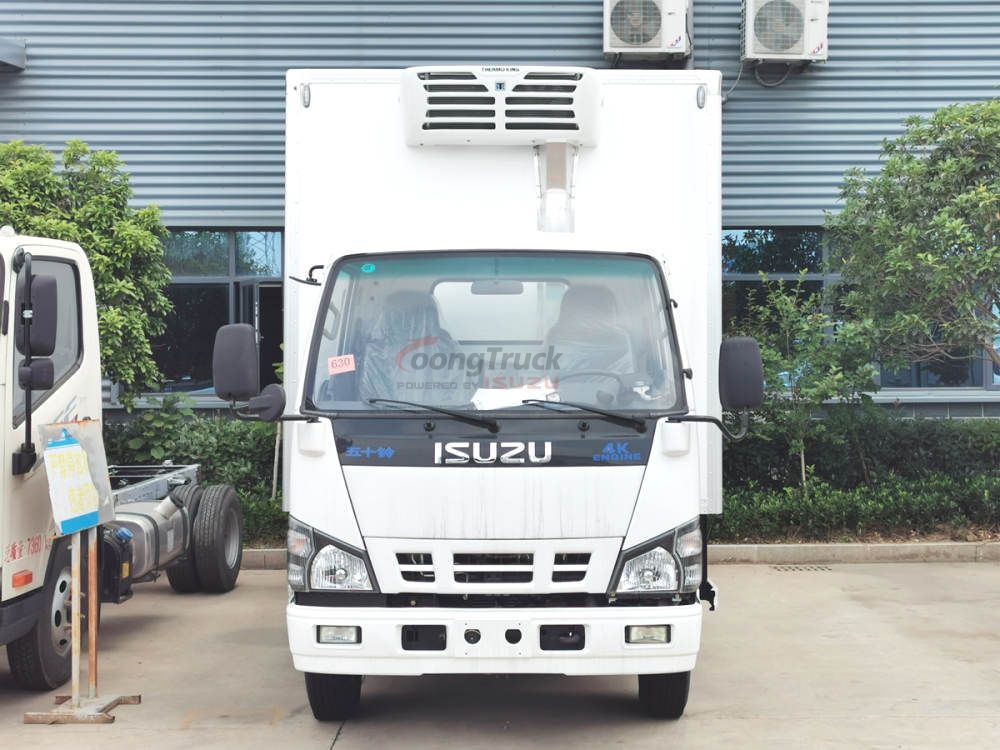

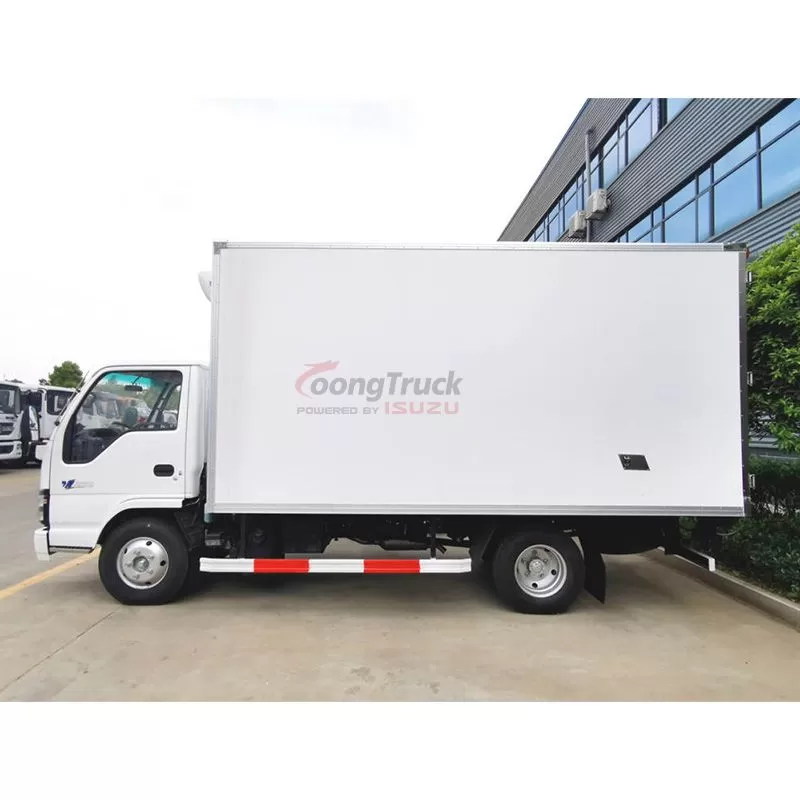

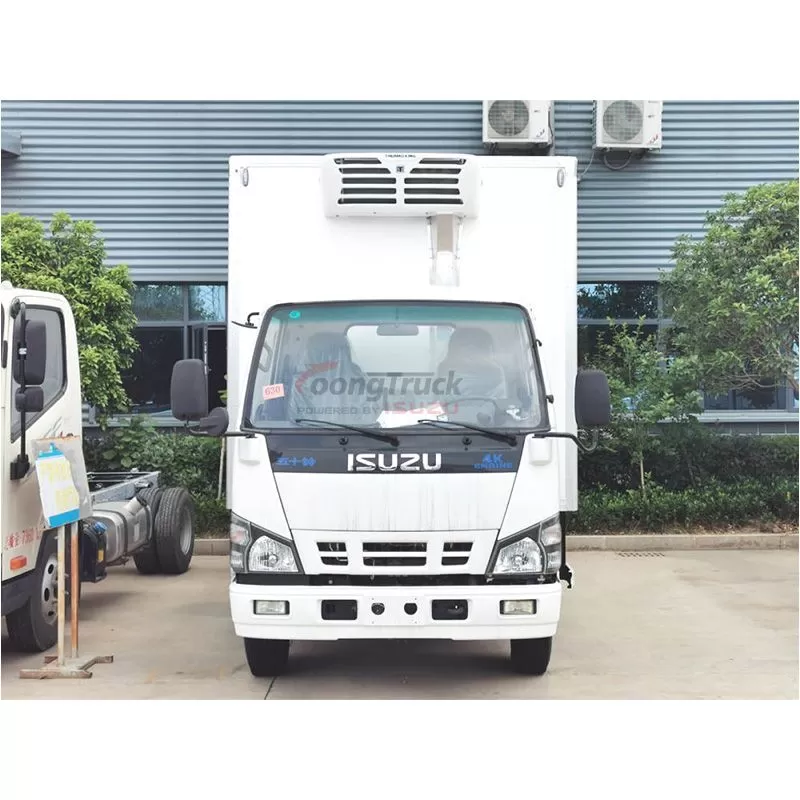

Thermo King Freezer Truck Isuzu
Isuzu brand Frozen Sea Food Transportation trucks, specially for the transportation of seafood, particularly fish, often requires specialized refrigerated truck Isuzu to maintain the freshness and quality of the products. These freezer trucks Isuzu, such as refrigerated seafood trucks, fish transport trucks, and refrigerated fish delivery vans, are equipped with high-quality refrigeration systems to ensure that the seafood remains at the appropriate temperatures throughout the transportation process.
| Work capacity: | 18 cbm |
| Engine power: | 120 HP |
| Engine type: | Isuzu 4KH1-TC |
| Axle drive: | 4x2 |
| Gear box: | Isuzu MSB |
| Remarks: | Thermo King RV-380 |
PRODUCT DETAILS
The use of Isuzu Seafood refrigerated trucks is especially important for shipping fresh fish, as it helps slow down the natural decaying process and extends the shelf life of the products. The maintenance of a consistent cold chain, from the fishery to the end customer, is crucial in ensuring the quality and safety of the seafood during transportation. Therefore, when transporting seafood, it is essential to use vehicles specifically designed to preserve the products' freshness and comply with the necessary regulations and standards.

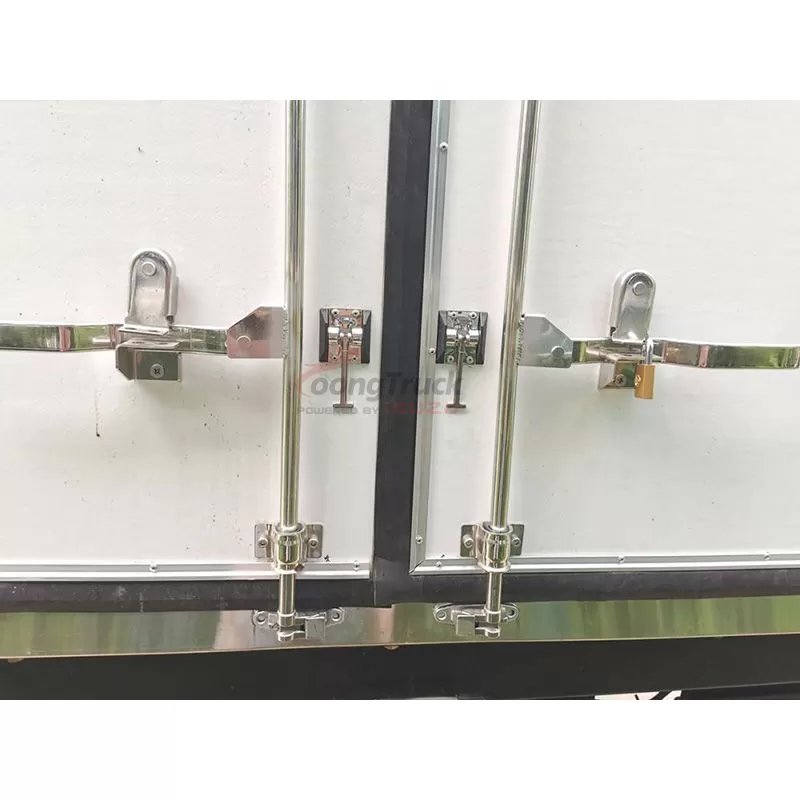

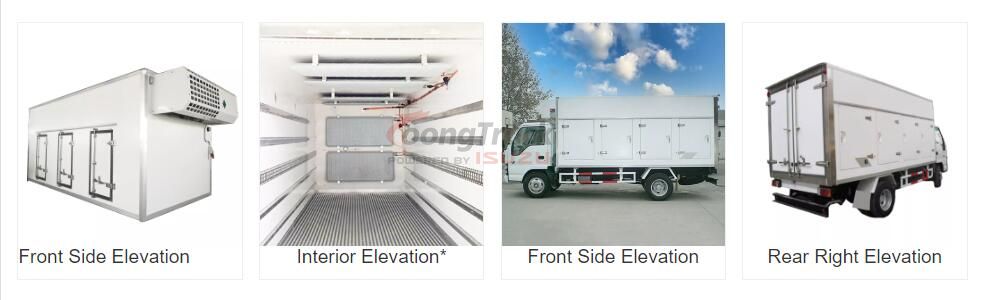

For Isuzu refrigerated van inner and outer wall plates can choose high- quality glass fber reinforced plastic, stainless steel, or color steel plate, For middle insulation material choose an 8 cm thick imported level polyurethane XPS, compartment body aluminum alloy wrapped edge,bottom plate for non-slip pattern aluminum plate, rear door locking parts for stainless steel.
| Cab | Single row cab, with power steering. Electronic flameout | |
| Driving Type | 4*2 Left hand driving | |
| Max Speed (km/h) | 100Km/h | |
| Overall dimension(mm) | 5765*1950*2720 | |
| GVW( kg) | 2580 | |
| Wheelbase(mm) | 2860 | |
| F/R track base (mm) | 1506/1466 | |
| F/R overhang (mm) | 1120/1515 | |
| Approach/Departure Angel | 20/16 | |
| Tire | 185/65R15 | |
| Clutch | Single-plate dry diaphragm spring clutch | |
| Steering | Hydraulic steering with power assistance | |
| Gear box | 5-speed | |
| Enging | Model | ISUZU 4KH1 |
| Fuel Type | Diesel | |
| Type | Straight line four cylinder turbocharging | |
| Exhaust(ml) | 2999mL | |
| Max output power/rotate speed (hp /rpm ) | 120HP | |
| Max torque/rotate speed(N.m/rpm) | 210N·m/2200RPM | |
| Braking system | Service Brake | Compressed air brake |
| Park Brake | Spring energy | |
| Auxiliary brake | parking brake | |
| Eletric system | 12v | |
| Color option | Customizable | |
| Function | Transporting frozen food, dairy products, vegetables, fruit, and vaccine medicine, etc | |
| Materials | Stainless steel, glass fiber reinforced plastics, aluminum alloy, or color steel plate, etc. with PU, etc. sandwiched. | |
| Material of van box | In the middle of Polyurethenefoam, Inner and coating is glass fiber | |
| Thickness of van box (mm) | 80mm Polyurethene foam | |

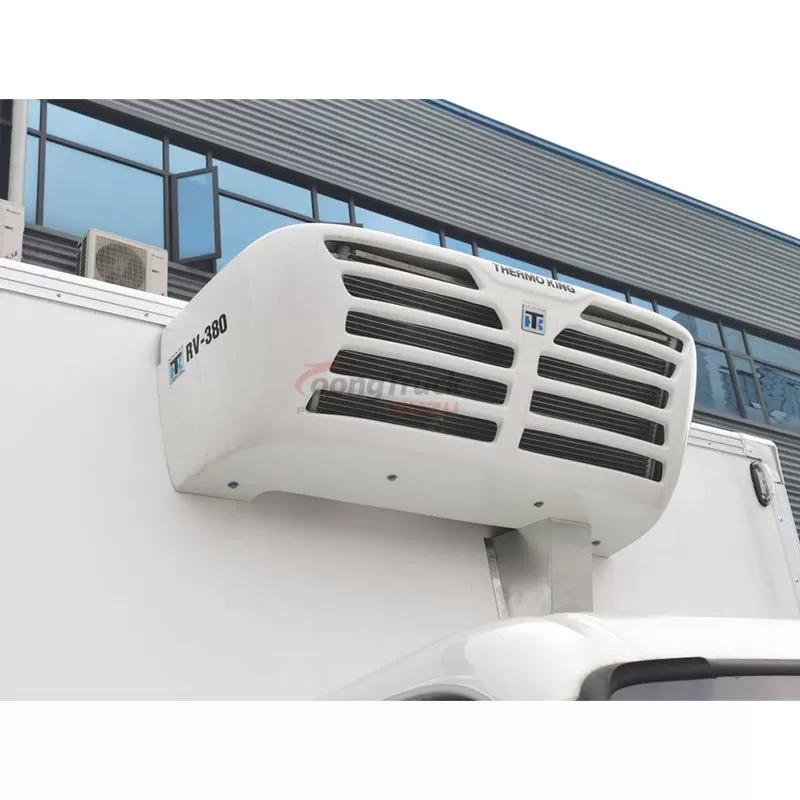

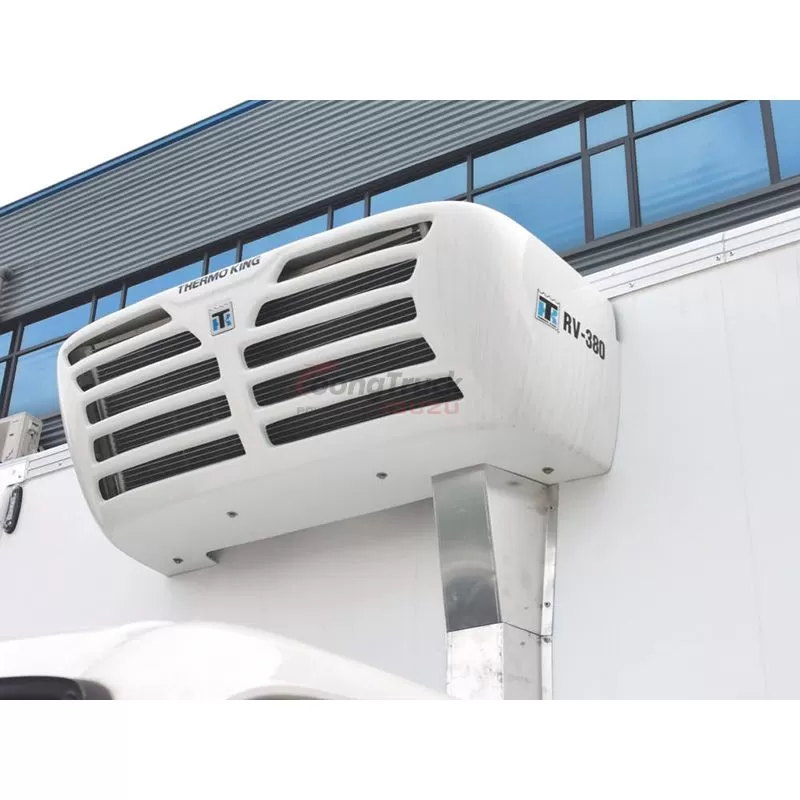

| Model of Refrigeration unit | Korean ND THERMO brand Type:RV 380 | |
| Cooling capacity (w) | 1960 | |
| Van box dimension(mm) | 3500*1750*1500mm | |
| Length of van (m) | 3~4 | |
| Capacity of van (m³) | 9m³ | |
| Voltage & Total Current | DC12V(20A) | |
| Power | 240W | |
| Compressor | SD-5L09(87cc)/SD-5H09(87cc) | |
| Refrigerant | R404A 1.2Kg | |
| Evaporator Dimensions(mm) | 680×594×174 | |
| Condenser Dimensions(mm) | 905×211×420 | |
| Mini temperature in van (ºC) | -18(suitable for transfer food ) | |
1. Purpose of the truck : transport frozen fish, meat, fresh vegetables and vaccinum, etc.
2. Main parts of the truck: Refrigerating unit and control system.
3. Features of the truck: International chassis brands and refrigerating unit brands for
optional.The refrigeration unit has well-known domestic and imported unit selection, and the temperature can meet the requirements of deep cooling.
4. Insulation materials are imported grade insulation board.
5. The entire vehicle is manufactured using the latest international technology and new technology, and it has good insulation property.
Refrigerator truck Isuzu named freezer van truck Isuzu, cooling van truck Isuzu, frozen truck is the enclosed van used for transporting the fresh and frozen goods, vegetables and fruits, milk goods and vaccines. It is the van truck equipped with refrigerator device with which inside temperature could be optional of -5°, 10°,-16°,-18°.The surface of van body could be made of fberglass, aluminum or stainless steel. The padding material with varieties ofthickness is polyurethane foam that could preserve the temperature.
